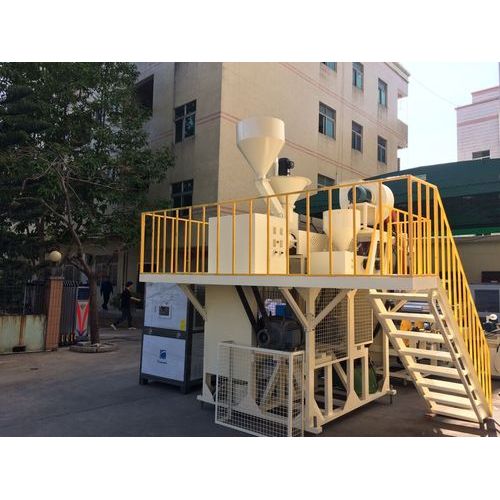

1000mm Three Layers Stretch Film Making Machine

1000mm Three Layers Stretch Film Making Machine

Based on our more than 30 years actual operation and experience, this unit is mainly uses LLDPE as main material ,to manufacture three layers or five layers stretch film, cling film , protective film and so on.

Main Technical Parameter:

Model: CL-55/70/55A

Width of Die Head: 1250mm

Width of Film: 1000mm

Thickness of Film: 0.01-0.05mm

Structure of Film Layers: A/B/C or A/ C/B /C/A

Liner Speed of Machinery: 120m/min

Max Extrusion Capacity: 150kg/h

Max Rewind Diameter: 400mm

Screw Diameter: 55/70/55mm

L/D Ratio of Screw: 30:1

Motor Power of Main Machine: 15/22/15kw

Total Power: 15.5-75kw

Overall Dimensions(L*W*H): 7.6*4*3.6m

Total Weight: 9.5T

Optional configuration:

1) Touch screen to control electric systerm

2) Manipulator equipment to change the roll and put the finished products down the ground.

3) Air Knife to cut the film for thickness more than 50um

4) Auto thickness measurement and auto thickness adjustment T-die

Features:

1. The alloy screw adopts special mixing refining function and high plasticity design , this unit consists of import static state mixer to ensure good plasticity and high quality output.

2.T-Die adopt import top speical mould steel, which professional materials on PE plasticity. By our high precision process and treatment to ensure the long service life of T-Die without any deformation.

3.The Cooling roller is bi-directional loop design and helix runner inside cooling steel roller to ensure the same temperature of roller surface.

Application

The film produced by this machine can be widely used in wrapping of pallet packaging, storage packaging, manual packaging and so on. Perfect transparency and tensile strength of this film keep cargos clean and safe .

Workshop

Certificate

Packing

Exhibitions

After-Sales Service

Our professional engineering team is constitutive of excellent technical staff. We can provide perfect after-sales service in time, give a good technical training to ensure the product in best state perennially.

We will respond to customer`s service requests and complaint in the shortest possible time, give a clear reply and solution to deal with in time. At the same time, we sum up customer`s complaint and proposal in order to inherit our advantages, correct our inadequate. We will commit to improve our services quality, so that our customers will be most satisfied.

We offer warranty on product quality and lifelong maintenance services.
