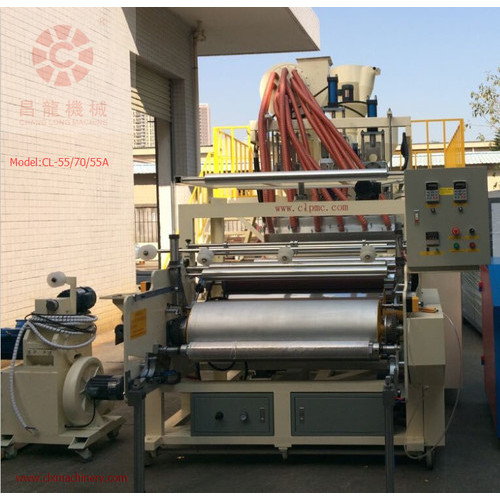

LLDPE Automatic Wrap Stretch Film Manufacturing Machine

LLDPE Automatic Wrap Stretch Film making equipment

The production line is suitable for using LLDPE as main material to produce three-layer or five-layer one face self-stick stretch film. This unit is based on our many years manufacturing and operating experience, it is easy to operate and saving power.

Main Technical Parameter of lldpe stretch film machine:

Model: CL-55/70/55A

Width of Die Head: 1250mm

Width of Film: 1000mm

Thickness of Film: 0.01-0.05mm

Structure of Film Layers: A/B/C or A/ C/B /C/A

Liner Speed of Machinery: 120m/min

Max Extrusion Capacity: 150kg/h

Max Rewind Diameter: 400mm

Screw Diameter: 55/70/55mm

L/D Ratio of Screw: 30:1

Motor Power of Main Machine: 15/22/15kw

Total Power: 15.5-75kw

Overall Dimensions(L*W*H): 7.6*4*3.6m

Total Weight: 9.5T

stretch film machine's Optional configuration:

1) Touch screen to control electric systerm

2) Manipulator equipment to change the roll and put the finished products down the ground.

3) Air Knife to cut the film for thickness more than 50um

4) Auto thickness measurement and auto thickness adjustment T-die

Features:

1. This lldpe wrap film machine's alloy screw adopts special mixing refining function and high plasticity design , this unit consists of import static state mixer to ensure good plasticity and high quality output.

2.T-Die adopt import top speical mould steel, which professional materials on PE plasticity. By our high precision process and treatment to ensure the long service life of T-Die without any deformation.

3.The Cooling roller is bi-directional loop design and helix runner inside cooling steel roller to ensure the same temperature of roller surface.

Advantage:

1) Company is professional on this line about 30 years. Twenty years ago, Factory is located in Hongkong. Ten years ago, the factory is moved into Shenzhen, China and now has a subsidiary corporation in YangJiang,China. We are the oldest stretch film machine manufacturer in China, the experience is the richest and the technology is the most advanced.

2) We have a complete set of spare parts processing equipment, Almost all machine parts is made by our professional technicians to guaranty the stable quality. The T-die is made by ourself about 30 years experience and the quality of the T-die is approved by the markets . We own high technology on T-die from American and Italy partner. In China, we are the only one to have strenth to make our own brand T-Die.

3) What's important that the machine is stable, easy to operate, energy saving and high output.

Application

The film produced by this lldpe film stretch machine can be widely used in wrapping of pallet packaging, storage packaging, manual packaging and so on. Perfect transparency and tensile strength of this film keep cargos clean and safe .

Workshop

Certificate

Packing

Exhibitions

After-Sales Service

Our professional engineering team is constitutive of excellent technical staff. We can provide perfect after-sales service in time, give a good technical training to ensure the product in best state perennially.

We will respond to customer`s service requests and complaint in the shortest possible time, give a clear reply and solution to deal with in time. At the same time, we sum up customer`s complaint and proposal in order to inherit our advantages, correct our inadequate. We will commit to improve our services quality, so that our customers will be most satisfied.

We offer warranty on product quality and lifelong maintenance services.
