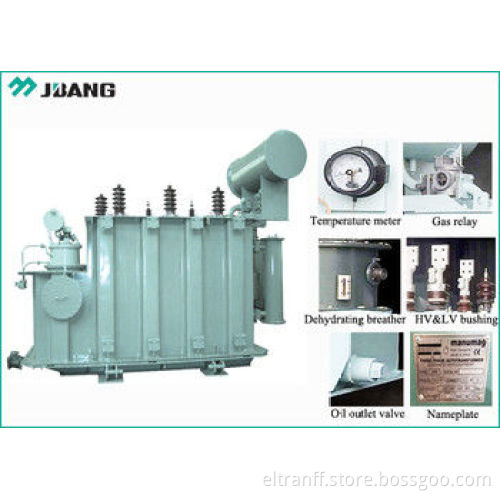

500KVA - 10MVA Oil Electrical Voltage Step-Down Power Transformer With Full Sealed Oil Tank

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Detailed Product Description

Winding:	Copper	Phase:	Three
Frequency:	50 60 Hz	Connection Symbol:	Yyn0, Dyn11

500KVA - 10MVA Oil Electrical Voltage Step-Down Power Transformer With Full Sealed Oil Tank

Technical specification of 35kV grade S11 series oil-immersed distribution power transformer.

Rated capacity (kVA)	Voltage group (kV)		Connection method	Loss(kW)		No-load current(%)	Short circuit Impe-dance (%)	Weight(kg)			Outline dimension(mm)	Gauge longitudinal/ transverse direction
Rated capacity (kVA)	High-voltage	Low-voltage	Connection method	No-load	load	No-load current(%)	Short circuit Impe-dance (%)	Equipment body weight	Oil weight	Gross weight	Outline dimension(mm)	Gauge longitudinal/ transverse direction
30	38.5 35 33	0.4	Yyno Dyn11	0.14	0.89/0.84	1.7	6.5	165	230	580	1320×550×1550	550/550
50				0.17	1.21/1.15	1.6		230	265	730	1360×700×1680
80				0.22	1.80/1.71	1.7		310	310	870	1395×730×1730
100				0.23	2.01/1.92	1.4		370	340	1000	1440×760×1810
125				0.27	2.38/2.26	1.4		440	380	1120	1450×800×1940	660/660
160				0.29	2.82/2.69	1.3		540	415	1360	1470×800×2910
200				0.34	3.33/3.16	1.2		635	455	1540	1500×800×2050
250				0.41	3.95/3.75	1.1		725	490	1745	1530×830×2090
315				0.49	4.76/4.53	1.1		825	525	1910	1550×870×2150
400				0.58	5.75/5.47	1.0		980	595	2220	1600×940×2200	820/820
500				0.69	6.92/6.58	1.0		1210	680	2640	1750×1000×2280
630				0.83	7.88	0.9		1110	800	3175	2130×950×2400
800				0.98	9.41	0.8		1625	850	3595	2210×1075×2450
1000				1.15	11.54	0.8		1955	965	4260	2250×1090×2630
1250				1.41	13.94	0.7		2250	1130	4835	2210×1740×2690	1070/1070
1600				1.70	16.67	0.6		2890	1260	5995	2250×2145×2700
2000				2.09	20.43	0.5		3070	1330	6445	2320×2170×2750
2500				2.52	21.85	0.5		3555	1390	7080	2340×2180×2510
