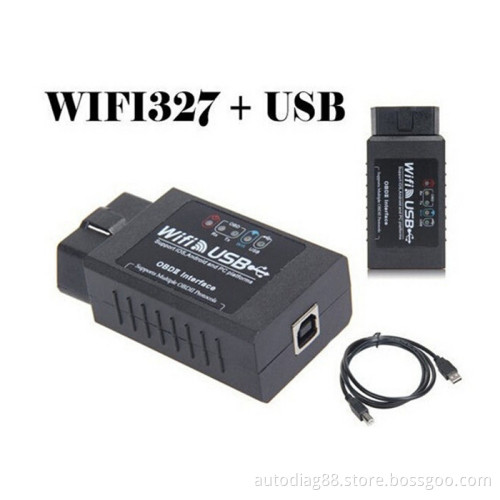

Diagnostic Tool ELM327 Wifi USB Cable ELM 327 Wifi Auto Code Scanner

New function: WIFI + USB

WIFI327 OBD2 scanner is the latest PC-based scan tool.It supports all OBD-II protocols and is dispatched with a number of compatible programs. The output protocol (connection to laptop) is USB cable.It is easy to use and very useful to diagnose cars. It use WIFI327 software.

Function:

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2. Clear trouble codes and turn off the MIL ("Check Engine" light)

3. Display current sensor data, including: Engine RPM; Calculated Load Value; Coolant Temperature; Fuel System Status; Vehicle Speed; Short Term Fuel Trim; Long Term Fuel Trim; Intake Manifold Pressure; Timing Advance; Intake Air Temperature; Air Flow Rate; Absolute Throttle Position;Oxygen sensor voltages/associated short term fuel trims; Fuel System status;Fuel Pressure.

Specification:

1. OBD-II Protocols:

ISO15765-4 (CAN);ISO14230-4 (KWP2000);ISO9141-2;J1850 VPW;J1850 PWM

2. Output protocol:

RS232

Baud rate:9600 or 38400

Indicator LEDs:OBD Tx/Rx, RS232 Tx/Rx, Power

Operating voltage:12V, internal protection from short circuits/overvoltages

Nominal idle current:45 mA

3. Available cars:

For A160 A180 B200 C200 C300 C180 E200 E260 E300 E350 E260L E300L G500 G55AMG GL450 GLK300 GLK350 ML300 ML350 ML500 ML63 R300L S350L S400L S500L S600L CL600 CLK200K CLK280 CLK350 CLS300 CLS350 CLS500 GL300 GL350 GL500 SLK200K SLK300 SLK350  2001/02/03 W203 C200K (ISO)

For X5 2002 (ISO) Chevrolet Aveo (ISO)

For Citroen C3 2004 (ISO) Daihatsu YRV 2005 (ISO)

For Daihatsu YRV Turbo 2006 (ISO)

For Fiat Tipo 2002 (ISO)

For Ford New Focus 2006(CAN)

For Accord 2006 JDM (ISO)

For Accord Euro R 2004 JDM (ISO)

For City GD8 (ISO)

For Civic ES 1.6A (ISO)

For Integra Type R DC5 JDM (ISO)

For Jazz 1.4M (ISO)

For Hyundai Accent 2004 (ISO)

For Hyundai Getz 1.3A 2004 (ISO)

For Hyundai Getz 1.6M 2004 (ISO)

For Hyundai Matrix 2004 (ISO)

For Hyundai Santa Fe 2.4A (ISO)

For Hyundai Sonata GLS (ISO)

For Hyundai Sonata 2005 (ISO)

For Hyundai Tuscani FX (ISO)

For Kia Carens 2005 (ISO)

For Kia Magentis 2005 (ISO)

For Kia Rio LS (ISO)

For Kia Sorento SUV 2005 (ISO)

For Lexus es300 Mazda 2 (CAN)

For Mazda 5 (CAN)

For Mazda 6 (CAN)

For Mazda Premacy 2001 (ISO)

For Mazda RX8 (CAN)

For Mitsubishi Colt 2003 (ISO)

For Mitsubishi Colt Plus 2005 (ISO)

For Mitsubishi Eclipse(GST-----Turbo Car can be tested for the year 1995-2000,RS/GS----1994-1996 GS all can do;Turbo Car for the year 1996-2000,only have speed and TPS,can clear the DTCS)

For Mitsubishi Lancer Evolution IX 2006 (ISO)

For Mitsubishi Pajero 3.5 V6 2006 (ISO)

For Nissan Sunny B14 (ISO)

For Nissan Sunny VIP FB15 (ISO)

For Nissan X-Trail 2.0L 2004 (ISO)

For Nissan X-Trail 2.5L 2004 (ISO)

For Peugeot 206 2001 ?Only can show RPM

For Peugeot 206 (ISO)

For Peugeot 307 (ISO)

For Peugeot 407 (ISO)

For Renault Megane II 2005 (ISO)

For Renault Kangoo 2006 (ISO)

For Subaru Impreza 1.6TS 2002 (ISO)

For Subaru Impreza WRX 2005 (ISO)

For Camry 2.0A 2004 (ISO)

For Camry 2.4A 2005 (ISO)

For Corolla Altis 1.6A 2005 (ISO)

For Corolla GLXi G8 1999 (ISO)

For Corolla G9 2002 (ISO)

For Vios 2004 (ISO)

4. Not available veichles:

For Mazda 323 Protege 2003 (OBD-I)

For Mitsubishi Lancer 1.6M 2006

For Nissan Sunny (N16)

For Nissan Cefiro (Teana) 2005

For Nissan sentra 1.8 2000/2005

For Nissan Cefiro (Teana) 2005

For Proton Perdana V6

For Subaru Legacy GT 2005

For Toyota camry 2002

For Toyota Wish JDM (Missing Pin 5 in DLC)

For Toyota IST JDM (Missing Pin 5 in DLC)

For Toyota altis 1.8 2004

For Peugeot 206 2000

For Suzuki Jimny 1.3 2000
