VAG Airbag Reset Tool VW / Audi Airbag Reseter Car Diagnostic Scan Tool

Why Buy Airbag Reset from us?

We are factory for this tool. Price is factory price.

We do best quality control,we use best quality plastic and chips for it.

We test every single pc before we send to clients,almost ZERO bad feedback.

We stock plenty to avoid any shortage,not like trade companies,take money frist and let clients wait.

We can put your logo on it and any other OEM requirments.

A Life-time warranty.

Description:

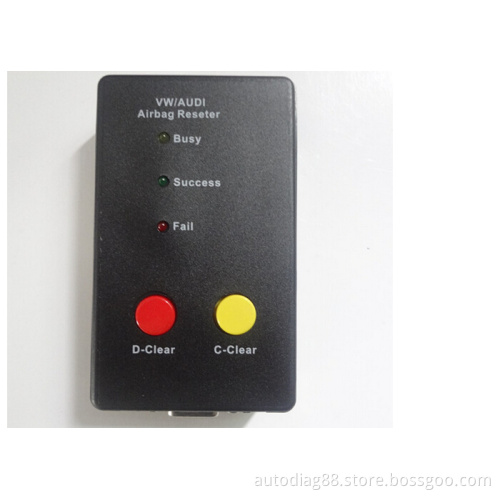

1.Audi-VW Airbag Reseter works without additional computer and trough car OBD II connector can erase airbag sensor "crash data" or only fault memory. Very simple user instruction: connect this tool to Audi/VW car OBD II connector. Right red button is for airbag "crash data" erase. Push this button once and wait: yellow light start to flash and after 15 second green light inform you that "crash data" is erased. Red light set ON if erasing is not successful.

2.Left yellow button is for erase airbag "fault memory" or "errors". If airbag warning lamp go OFF and immediately  ON, evaluate airbag "error memory" using any VW-Audi diagnostic equipment and repair.

Workable Model:

VW

AUDI

FORD

Seat & Skoda Cars with OBD2 connector (w/o can bus)

Functions:

1. Reset Inspection Intervall

2. 15.000 km (OIL - STANDARD)

2. 30.000 km (Inspection 1 - LONGLIFE)

4. 50.000 km (Inspection 2 - LONGLIFE)

Operating Instruction:

  Step1.Plug the Device into the OBD2 socket of the car

  step2.All LED`s will blink and than stay on

  step3.Turn ignition key to enable the board electronic but don`t turn on the motor

  step4.Press the button for the operation you want to perform shortly

  step5.The LED of the choosen operation will light and the other Led`s will be off

  step6.LED`s will perform a light chain which means reset is done

Support List:

1. Support new Audi airbag sensors(with hc12cpu or CR16 PLCC44 ) 1999-2002 crash data and DTC65535 (Controller Malfunction) erase, such as: 4B0959655G, 4B0959655J,4B0959655C, 8L0959655G, 4D0 959 655 J,8D0 959 655 J , 8D0 959 655 F, 8D0 959 655 M, etc.

2. Support new Airbag sensor (with CR16 80QFP) from VW-Audi (A3, A4, A6, A8 2002-2005, Touareg) crash data and DTC65535 (Controller Malfunction) erase, such as 4B0959655Q ,etc.

3. Support crash data and fault memory erase:

AUDI A4, A6, A8 1994-1997: Airbag V BOSCH : 8A0 959 655 C (Bosch 0 285 001 038), 8A0 959 655 K (Bosch 0 285 001 155), 8A0 959 655 K (Bosch 0 285 001 151) - Crash data erase, Fault erase;

AUDI A3, A4, A6, A8 1999 : Airbag 7 BOSCH - 4B0 959 655 C, 4B0 959 655 J, 4D0 959 655 C, 4D0 959 655 H, 8D0 959 655 C, 8D0 959 655 L, 8L0 959 655 F - all Bosch Airbag 7 - Crash data erase, Fault erase;

Audi A2, A3, A4, A6, A8 - 1999 : Airbag 8 BOSCH - Crash data erase, Fault erase (can't erase "Controller Malfunction" for this moment); ?VW - Golf III, Passat B4, Sharan - 1J0 909 603 SIEMENS - Crash data erase, Fault erase;

VW - Golf IV, Passat B5 - 1J0 909 609, 1J0 909 607 - SIEMENS - Crash data erase, Fault erase;

VW - Golf IV, Passat B5 - 3B0 959 655 B, 8L0 959 655 A - all BOSCH - Crash data erase, Fault erase;

VW - Golf IV, Passat B5, Sharan - 6Q0 909 605 A, 6Q0 909 605 B - SIEMENS - Crash data erase, Fault erase;

VW - Golf IV, Passat B5, Sharan - 1C0 909 605 C, 1C0 909 605 F, 1C0 909 605 H, 6Q0 909 605 C - SIEMENS - Crash data erase, Fault erase;

VW - Passat B6 - new SIEMENS - Crash data erase, Fault erase.
