Basic Info

Product Description

X-ray baggage scanner

X-ray penetration inspection reveals the metal structure inside the object and can show places that are invisible to the naked eye. Applicable to factory inspection products and public security inspections of institutions such as electronics factories, shoe factories, toy factories, courts, stations, and security bags.

Walk through metal detector

Fireproof,waterproof ,and shockproof. It can exactly detect the location of metals that walk through person takes. Especially designed for factory ,Exhibition Areas for outdoor check,such as hardware and Electronic manufacturer check if the person steal the metals, or apply for large public events, check the person if take leather weapons.

Hand held metal detector

Hand held Metal Detector designed to

safeguard securitysensitive areaslike schools,

courtrooms, corrections facilities, sports

events, businesses,night clubs, bars and other

public areas and events.

Product introduction

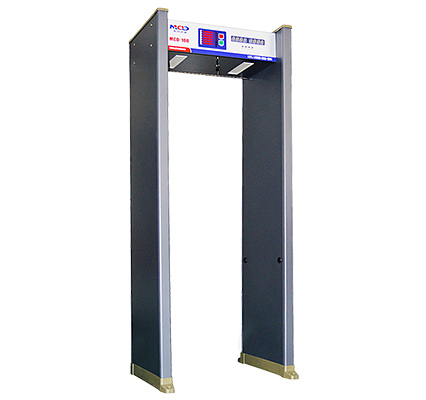

The MCD-100 security door is a metal detection security door designed for ordinary users. It is economical and practical, and the price is cheap. The door has 6 overlapping detection areas and 4 pairs of infrared detectors. No dead ends are detected. The panel uses digital boards. Visual display, the display result is more direct, the electromagnetic field is established in the access door, the detection sensitivity can be directly adjusted from 0-99, and the interference such as the belt head, zipper and the like can be excluded according to the actual needs, and the international standard is met, and the pregnant woman is not damaged. . It is mainly suitable for some entertainment venues where the detection requirements are not too high, such as night clubs, bars, KTV, ice rinks and other places to check

Function introduction
1. According to the basic structure of the human body, it is divided into six overlapping mesh detection areas, using advanced digital pulse technology, interactive transmission and reception, and accurately determining the position ofmetal objects.
2. Infrared scanning on both sides of the door panel, quickly capturing the sensing signal, eliminating the detection error caused by the induction lag when the human body passes, and automatically counting the number of passes
3.Each of the six detection zones has 100 levels of sensitivity adjustment. The user can adjust the appropriate sensitivity according to the detection requirements. The metal object can be detected up to the size of the paper clip. The false alarms of belt buckles, keys, jewelry, coins, etc. can be excluded according to the needs. Knives and guns
4.Advanced magnetic compatibility technology, digital processing through 100-level DSP, with anti-electromagnetic interference capability
5.High-brightness digital indicating board and alarm board, respectively showing the number of passing people, the number of alarms, the alarm area and the strength of the alarm signal
6.The working signal frequency can be set, and multiple detector doors can be installed to work together without interference, and can work continuously.
7.With password protection function, the parameters can be modified only by inputting the correct password. Non- operators cannot change the security gate parameter settings for easy management.
8.The equipment adopts modular design, and the functional modules are built in the door panels and the main box on both sides. The installation is simple and convenient, and the fault is easy to eliminate.

General Specification
Detection area	District 6
Sensitivity level	0-99 adjustable, can be set according to detection requirements
Alarm mode	Sound and LED area lights simultaneously alarm
Display method	8-digit digital display
Personnel pass rate	More than 40 people per minute
Power supply	220V AC, 50/60Hz
Power consumption	35W
Working environment	-10°C~45°C
Tunnel size	200 (high) * 70 (wide) * 56 (deep) cm
Dimensions	222 (high) * 80 (wide) * 67 (deep) cm
Package dimensions	Door panel: 2307225cm (2 pcs/carton)
The main chassis	784728cm (1 pcs/carton)
Weight	Net weight 60kg/set, gross weight 70.5kg/set

Product display

product details

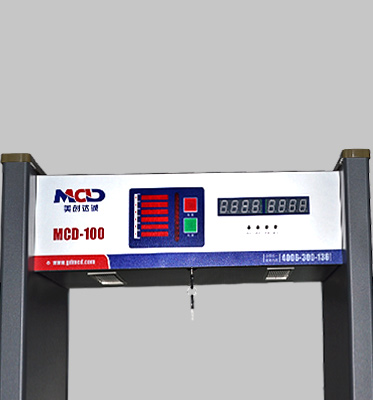

High-brightness digital indicating board and alarm board, respectively showing the number of passing people, the number of alarms, the alarm area and the strength of the alarm signal

Modular design, functional modules are built into the door panels and mainframes on both sides. It is easy to install and manually lock the screws.

The product is made of PVC material, wear-resistant and corrosion-resistant, and meets the current international safety standards.

Infrared scanning on both sides of the door panel quickly captures the sensing signal, eliminates the detection error caused by the induction lag when the human body passes, and automatically counts the number of passes.

Rich configuration upgrade again
Practical features, refreshing the strength to show the value of the height
