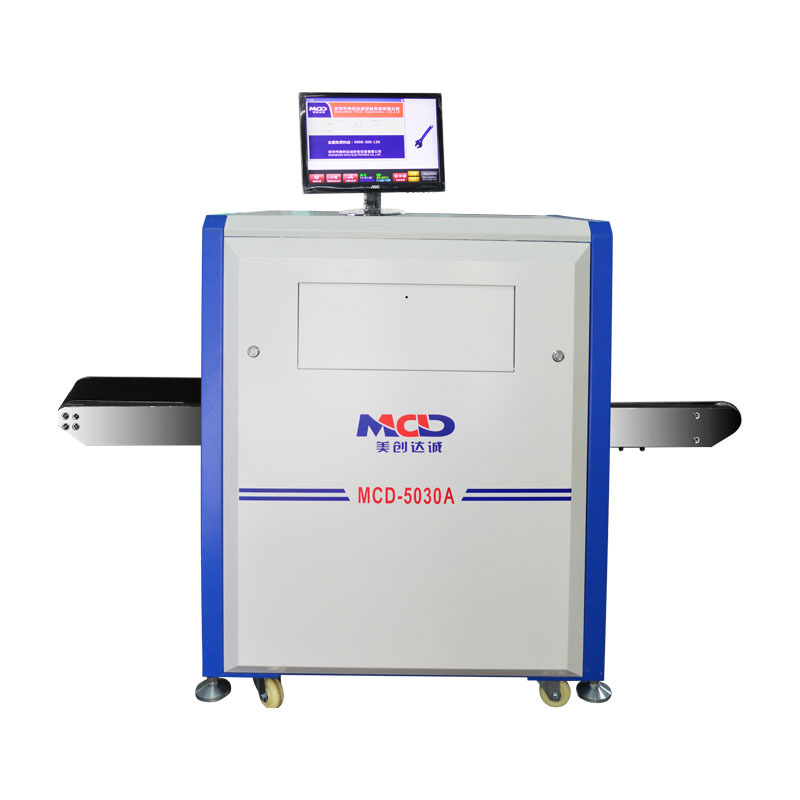

X-ray Baggage Scanner /Industrial Security X-ray Machine
Your message must be between 20 to 2000 characters
Contact NowX-ray Baggage Scanner /Industrial Security X-ray Machine
Specification
- Tunnel Size: 500(W)*300(H) mm
- Conveyor Speed: 0.22m/s
- Conveyor Max Load: 20kg
- Dose per Inspection: <2.9 μGy/h
- Resolution: <0.101mm Metal Wire
- Penetration: 34mm Steel
- Film Safety: Guarantee ISO1600 Film
- X-ray Leakage: <0.05 μGy/h (at a distance of 5cm From external housing)
X-ray Generator
- Generate direct: Upward
- Generate angle: 60 degree
- Anode Voltage: 80Kv
- Anode power: 0.4 to 0.5mA
- Cooling / Duty Cycle: Oil Cooling /100%

Image System
- X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
- Monitor: High Resolution Color, LCD Accord, 17 inch
- Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
- Image Grey Level: 4096
- Image Max Resolution: 1024 * 1280 pixel
- Image Processing: 24bit for processing real time
- Image storage: Storage 60000 pictures in real time
- Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
Installation Data
- Operation temperature/Humidity: 0°C-45°C/20%-95% (non-condensing)
- Storage Temperature/Humidity: -20°C-60°C/20%-95% (non-condensing)
- Operation Power: 220VAC (±10%)50±3Hz
- Power Consumption: 1.0 KW (max), 0.3KW (working)
- Noise: <65db
Shipping by express, sea, air, for your optional
*Established in 2005
*With more than 300 people, among of which R&D 15 staffs, QC 22 people
*Main products: X-Ray Luggage Scanner Handheld Metal Detector, Food Metal Detector, Underground Metal Detector, Under Vehicle Search System, Walkthrough Metal Detector Gate.
*Main market: Africa, South America, East Europe, Southeast Asia, Middle East etc.
*Certificates: ISO9001:2008, CE, RoHS, FCC, SONCAP
*Area: 12,000 Square meters
The Quality of Our Products:
- First of all, we promised that all the products are brand-new.
- Secondly, we have inspected quality before leaving the factory, those include but not limited to specifications, appearance, function, package, accessories and so on.
- Thirdly, we package the products by superior high quality carton or wooden case to ensure the completeness and low delivery loss.
- If you find out any problem when receive the products, we are in charge of securing service.
Shipping:
- We only support world-famous Express companies (EMS, DHL, UPS, FedEx), faster and safer by airline, except Long range detectors which set batteries inside (TX-MPI, VR1000BII, VR Long Range King). For reducing our shipping fee, large size articles (Walkthrough metal detector gates, X-ray security inspection machines, Needles inspection for Food industry, etc) will go Ocean shipping.
The Customs:
- We will declare on the invoice that it’s a gift or write down a lower price there to help you reduce tax.
- However, you will still need to pay the tax for the products if the customs ask.
Warranty Policy:
- In one month, if you’re not satisfied with product or product damaged (Not man-made), you can change unconditionally. (About changing, please contact customer service.), return shipping cost is buyer’s responsibility.
- 12 months warranty for all accessories and lifelong service.
