Soccer Field High Mast LED Light - High Power 160LM/W 720W-1440W Flood LED Light
  • Soccer Field High Mast LED Light - High Power 160LM/W 720W-1440W Flood LED Light
  • Soccer Field High Mast LED Light - High Power 160LM/W 720W-1440W Flood LED Light
  • Soccer Field High Mast LED Light - High Power 160LM/W 720W-1440W Flood LED Light
  • Soccer Field High Mast LED Light - High Power 160LM/W 720W-1440W Flood LED Light
  • Soccer Field High Mast LED Light - High Power 160LM/W 720W-1440W Flood LED Light
  • Soccer Field High Mast LED Light - High Power 160LM/W 720W-1440W Flood LED Light
Soccer Field High Mast LED Light - High Power 160LM/W 720W-1440W Flood LED Light
Soccer Field High Mast LED Light - High Power 160LM/W 720W-1440W Flood LED Light
Soccer Field High Mast LED Light - High Power 160LM/W 720W-1440W Flood LED Light
Soccer Field High Mast LED Light - High Power 160LM/W 720W-1440W Flood LED Light
Soccer Field High Mast LED Light - High Power 160LM/W 720W-1440W Flood LED Light
Soccer Field High Mast LED Light - High Power 160LM/W 720W-1440W Flood LED Light

Soccer Field High Mast LED Light - High Power 160LM/W 720W-1440W Flood LED Light

$439.80 - $805.00/piece
Min. Order:
2 piece
Min. Order:
2 piece
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C,Western Union,D/P,D/A,T/T,MoneyGram
Product Description
Product Description
Products Description

* The bulk price can be negotiated, please contact us!!!

Features:
* 120W~1440W; freely choose to meet your needs
* Light Efficiency: 160 lm/W;
* on request Symmetrical: 20°/40°/60°/90°;Asymmetrical: 100°×140° optics available ;
* High-transmittance and anti-UV Frosted Polycarbonate lens; Excellent thermal management design;
* Die-casting aluminum with polyester powder coat finish;
* IP66/IK08 rating for outdoor usage;
* Easy installation and low maintenance;
* Energy savings, no UV and IR radiations, emits low heat;
*Intelligent dimming system can be added: 0-10V, DMX and DALI dimming modes;
* ETL/cETL/FCC/CE/RoHS/SASO approval;
* 6 years warranty
* Can be used in parallel with multiple modules

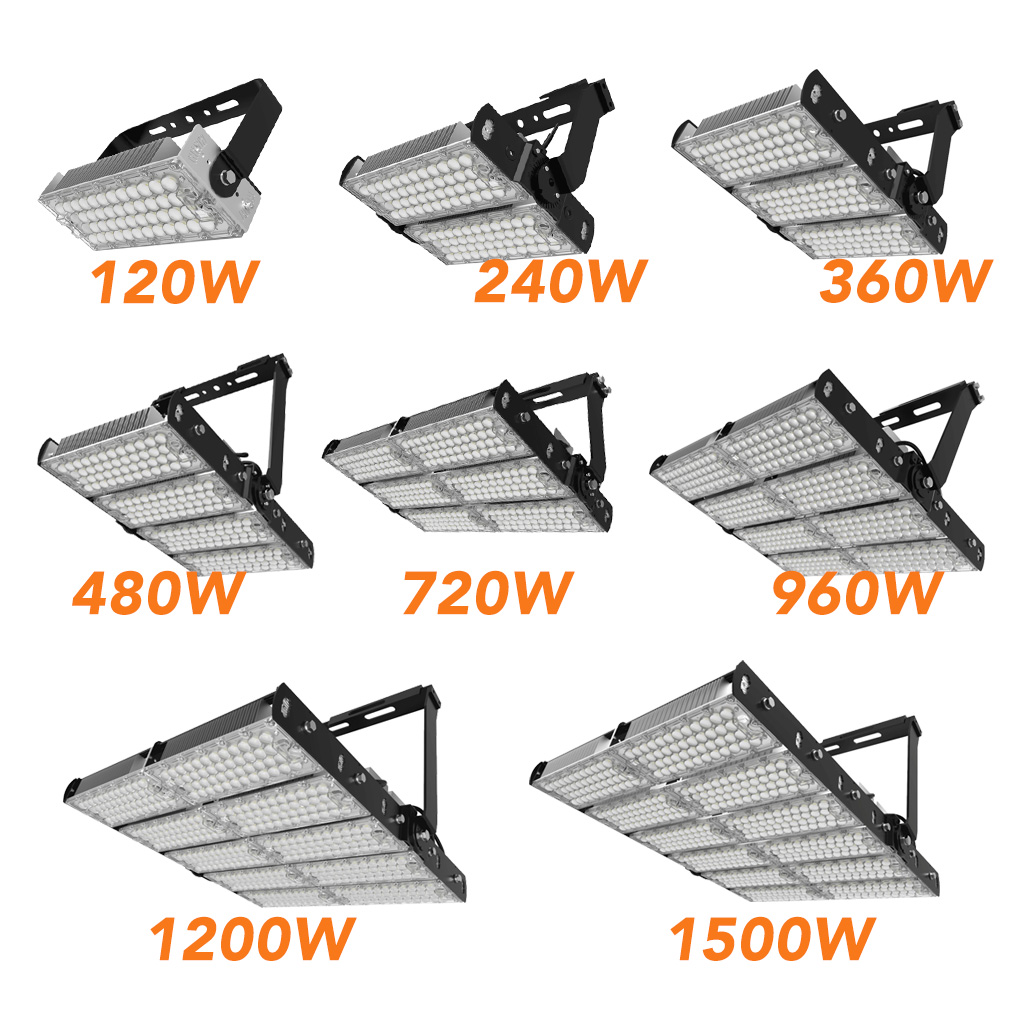

Product Paramenters
 Led Power
Luminous Flux
NW/GW:
 Product Size:
 Carton size:
120w
>19200LM
2.8/3.3kg
W310*L116*H132mm
 37*27*18CM
240w
>38400LM
5.6/6.2kg
W362*L343*L132mm
 41*38*18CM
360w
>57600LM
7.25/8kg
W362*L475*L132mm
 52*41*18CM
480w
>76800LM
11/11.95kg
W362*L597*H132mm
 64*41*18CM
720w
>115200LM
16.8/18.7kg
W649*L475*H132mm
 695*512*172mm,
960w
>153600LM
18/23kg
W649*L597*H132mm
 70*65*18CM
1200w
>192000LM
27.2/29kg
W649*L729*H132mm
 78*70*18CM
1440w
>230400LM
33.6/35kg
W649*L861*H132mm
91*69*18CM
Input Voltage:
AC85-305V
CCT
2700K-6500K
Light Efficient
>160lm/w
IP Grade:
 IP66
Driver Brand
Meanwell
PF Rate:
>0.95
Beam angle:
Symmetrical: 20°/40°/60°/90°,
Asymmetrical: 100°×140°
IK
IK08





Meet different needs

Module adjustable angle, can be assembled at will, a variety of luminous angles, a single set of up to 120W good heat dissipation, small volume, 5050 lamp beads,160lm/wIP66, stable structure, easy to assemble


Module scale

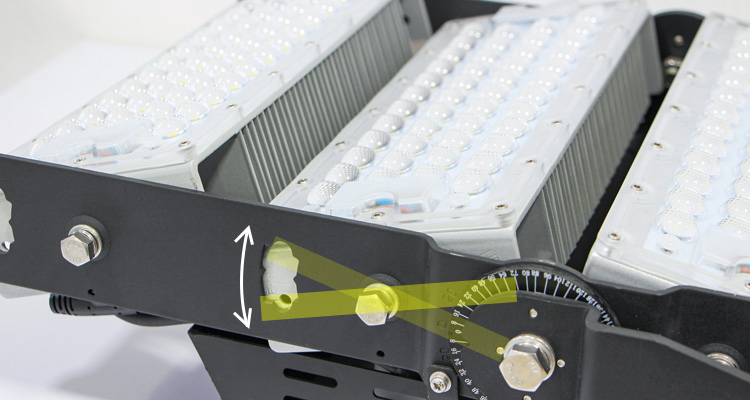

The left and right sides of the module are designed with adjustable angles of 15 degrees.

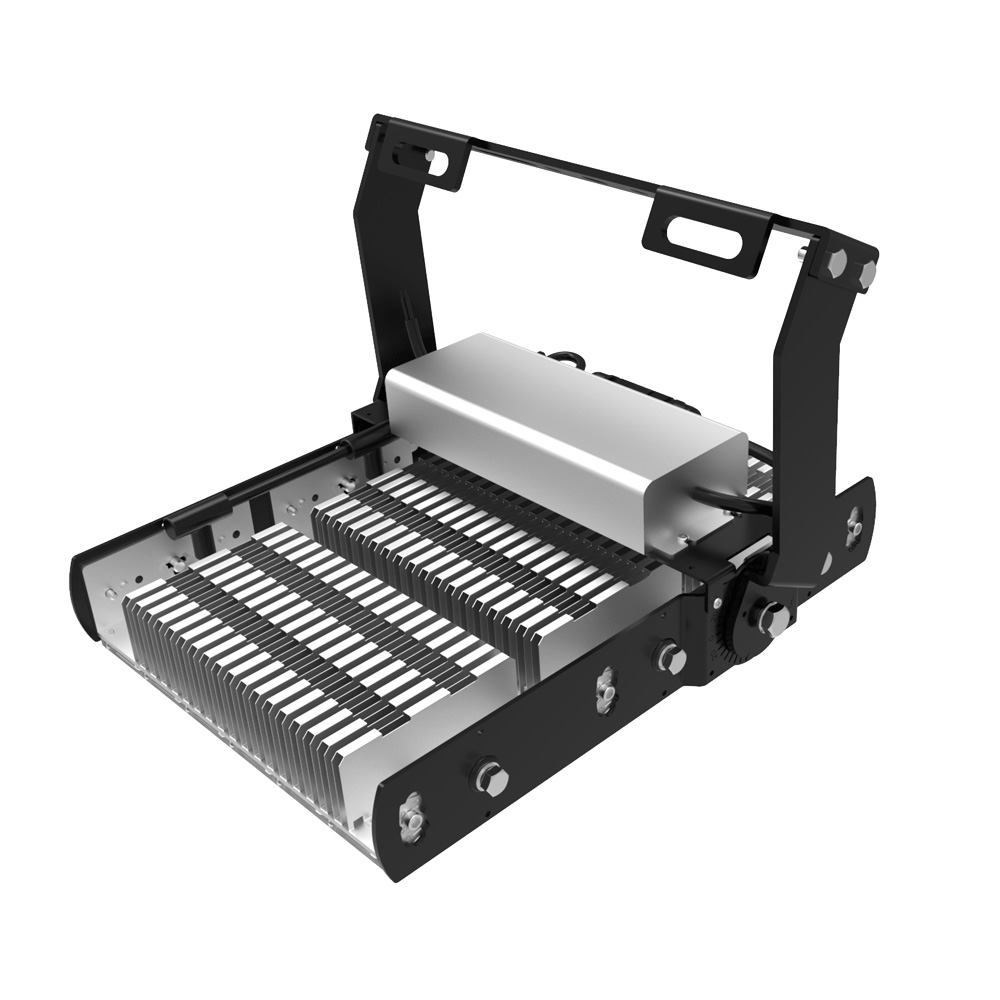

radiator


1060 pure aluminum heat sink,matrix arrangement, hollow design improves convection heat dissipation efficiency

Bracket disc

High-strength mounting
bracket,simple and efficient installation,can meet a variety of installation needs

tips:The bracket plate needs to be optional

Power back cover

Pure aluminum is anti-rust and anti-corrosion to avoid exposure of power supply

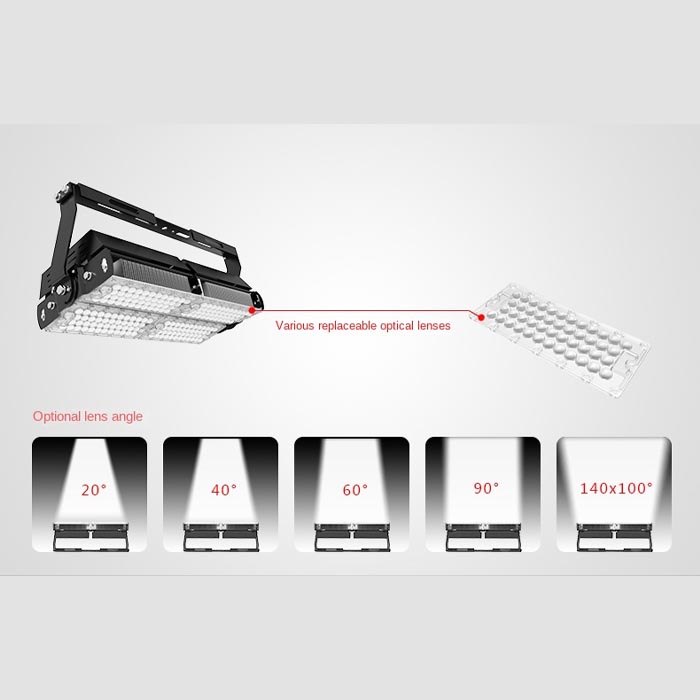

PC lens

PC lenses are available in avariety of lighting angles, with light transmittance as high as 95% specially designed for engineering lighting
