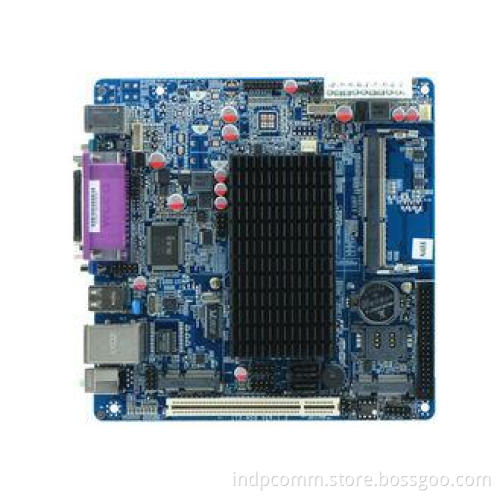

Atom N455 Processor Industrial Mini Itx Motherboard Mini-PC

CPU

Integrated Intel® Atom N455 Processor single core 1.66G

Chipset

Intel® ICH8M Chipset

Memory

Support 1* SO DIMM DDRIII 800/1066MHz, Max. up to 2GB

Graphics

Intel® GMA3150 Graphics
support VGA/LVDS synchronous/asynchronous display

LVDS supports single 18bit

Expansion Slots

1* Mini-PCIE (Support WIFI/3G)

1* PCI

LAN

Integrated 1* RTL8105E 10/100Mbps Ethernet
Support Wake-on-LAN and PXE function

Storage

2* SATAII 3Gbps

1* MSATA (support SSD 3Gbps/USB WIFI)

1* IDE

Audio

Integrated Realtek HD ALC662 for 6-Channel output
support MIC/Line-out/Line-in

Rear I/O

1* PS/2

1* LPT

1* COM, the 9th pin supports +5V/+12V charged function

1* VGA

4* USB 2.0

1* RJ_45 LAN

1* AUDIO I/O (MIC and Line-out)

Internal I/O

1* JVGA1(2*5pin)

1* LVDS 2*10pin,support single 18bit LVDS interface

1* COM, the 9th pin supports +5V/+12V charged function

1* AUDIO pin (Front Audio interface 2*5pin)

4* USB 2.0

1* FP1 (2*5pin Front panel buttons and LED connected)

1* PS/2

1* LVDS 1*6pin

1* SIM

Fun interface

1* CPUFAN and SYSFAN (3pin)

BIOS

AMI 8MB DPI Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

ATX Power Supply

Operating Temp.

-10°C~60°C

Storage Temp.

-20°C~70°C

Humidity

0%-95%(relative humidity; non-condensing)

Dimension

170mm x 170mm
