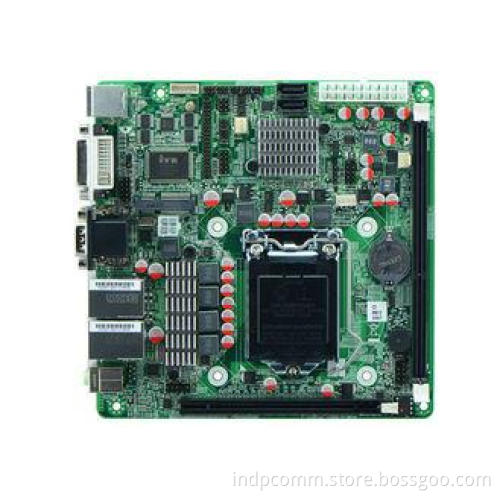

Dual Gigabit Lan Mini ITX Motherboard Support LGA1155 Intel

CPU

Support LGA1155 Intel® Core™ i3/i5/i7 32nm/22nm Processor

Chipset

Intel® H61 Chipset

Memory

Support 1* DDRIII DIMM 1066/1333MHz,Max. up to 8GB

Graphics

Intel® HD Graphics,support VGA/DVI synchronous/asynchronous display

Expansion Slots

1* PCI-Express 2.0 16x

1* MPCIE (support SSD/WIFI/USB WIFI)

LAN

2* RTL8111E 10/100/1000Mbps Ethernet,Support Wake-on-LAN and PXE function

Storage

2* SATAIII 6Gbps

Audio

Integrated Realtek HD ALC662 for 6-Channel output
support MIC/Line-out/Line-in

Rear I/O

1* PS/2

6* USB 2.0

1* DVI

1* VGA

2* COM (COM1 supports RS422/485)

2* RJ-45 LAN

1* AUDIO I/O (MIC and Line-out)

Internal I/O

4* RS232, the 9th pin supports +5V/+12V charged function

1* TX-RXCOM (RS422/485)

3* USB 2.0

1* JVGA 2*5pin

1* AUDIO pin (Front Audio interface 2*5pin)

1* FP1 (2*5pin Front panel buttons and LED connected)

Fun interface

1* CPUFAN 4pin 2* SYSFAN 3pin

GPIO

1* GPIO (Support 4-way GPIO function)

BIOS

32MB SMT Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

20pin ATX Power Supply

Operating Temp.

-10°C~60°C

Storage Temp.

-20°C~70°C

Humidity

0%-95%(relative humidity; non-condensing)

Dimension

170mm x 170mm
