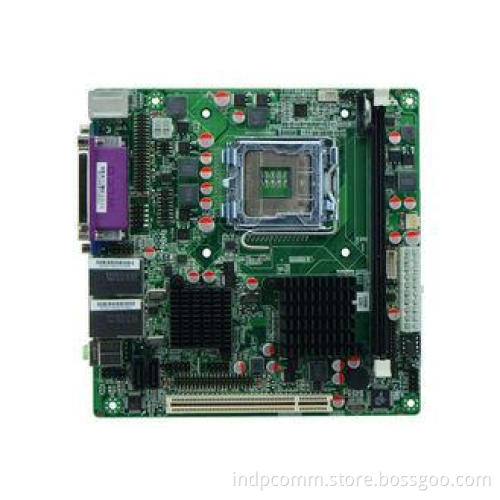

10 COM , 2 LAN , 8 USB2.0 Mini ITX Industrial Motherboard I

CPU

Support LGA775 Intel® Core™ dual-core , quad-core Processor

Chipset

Intel G41+ICH7 Express Chipset

Memory

Support 1* DDRIII DIMM 1066/800 MHz,Max. up to 4GB

Graphics

Intel® GMA4500 Graphics ,support VGA , dual channel 24 bit LVDS display

Expansion Slots

1* PCI

LAN

2* RTL8111E 10/100/1000Mbps Ethernet,Support Wake-on-LAN and PXE function

Storage

2* SATAII 3Gbps

Audio

Integrated Realtek HD ALC662 for 6-Channel output
support MIC/Line-out

Rear I/O

1* PS/2

4* USB 2.0

1* LPT 25 PIN

1* VGA

1* COM (Support charged function + 12 v, + 5 v conversion)

2* RJ-45 LAN

1* AUDIO I/O (MIC and Line-out)

Internal I/O

9* RS232

1*LVDS 2*15PIN Interface ,support dual channel 24 bit

4* USB 2.0

1* LVDS INVERTER

1* JVGA 2*5pin ,with the same signal with DB15

1* AUDIO pin (Front Audio interface 2*5pin)

1* FP1 (2*5pin Front panel buttons and LED connected)

Fan interface

1* CPUFAN 4pin 2* SYSFAN 3pin

BIOS

32MB SMT Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

20pin ATX Power Supply

Operating Temp.

-10°C~60°C

Storage Temp.

-20°C~70°C

Humidity

0%-95%(relative humidity; non-condensing)

Dimension

170mm x 170mm
