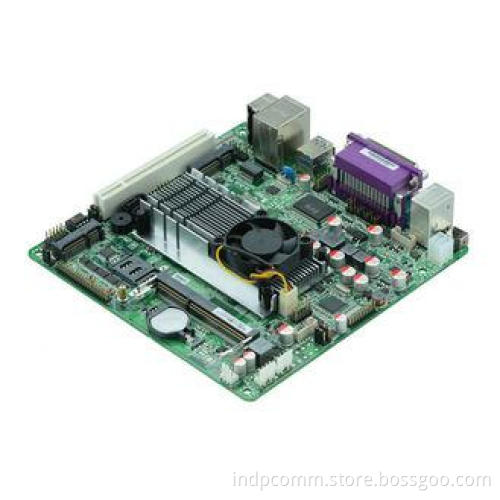

6 COM ,8 USB2.0 ATOM Mini Itx Motherboard For Industrial P

CPU

Onboard Intel® Atom D525 Processor Dual core 1.80G

Chipset

Intel® ICH8M Chipset

Memory

Support 1* SO DIMM DDRIII 800/1066MHz, Max. up to 2GB

Graphics

Intel® GMA3150 Graphics

Support 2* VGA,1* LVDS(support single 24bit)

support LVDS/VGA1 synchronous/asynchronous display

support LVDS/VGA2 synchronous/asynchronous display

support VGA1/VGA2 synchronous/asynchronous display

Expansion Slots

1* Mini-PCIE (Support WIFI/3G)

1* PCI

LAN

1* RTL8105E 10/100Mbps Ethernet

Support Wake-on-LAN and PXE function

Storage

2* SATAII 3Gbps

1* MSATA (support SSD 3Gbps/USB WIFI)

Audio

Integrated Realtek HD ALC662 for 6-Channel output

Support MIC/Line-out/Line-in

Rear I/O

1* 12V DC_JACK input

1* PS/2

1* LPT

1* COM, the 9th pin supports +5V/+12V charged function

1* VGA

4* USB 2.0

1* RJ_45 LAN

1* AUDIO I/O (MIC and Line-out)

Internal I/O

1* JVGA1 2*5pin

1* JVGA2 2*5pin

1* LVDS 2*10pin,support single 24bit LVDS interface

5* COM,COM2 support RS422/485

1* TX-RXCOM (RS422/485)

1* AUDIO pin (Front Audio interface 2*5pin)

4* USB 2.0

1* FP1 (2*5pin Front panel buttons and LED connected)

1* PS/2

1* LVDS 1*6pin

2* PWROUT (Hard drive power connector)

1* ATX_12V (Can be used as input and output 12V power connector)

1* SIM

Fun interface

1* CPUFAN and SYSFAN 3pin

BIOS

AMI 8MB DPI Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC_12V Single power supply

Operating Temp.

-10°C~60°C

Storage Temp.

-20°C~70°C

Humidity

0%-95%(relative humidity; non-condensing)

Dimension

170mm x 170mm
