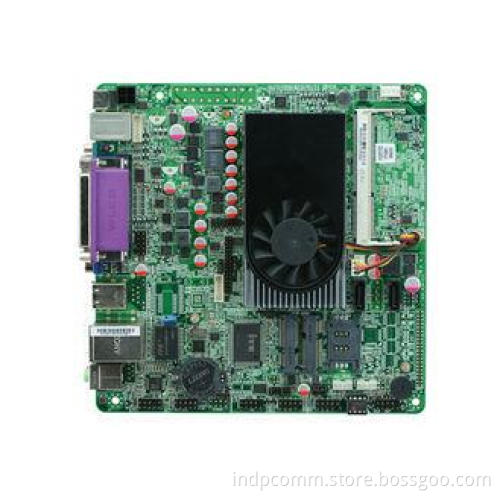

Intel1037U processor MINI ITX Industrial Motherboard suppor

CPU

Onboard Intel®1037U Dual core 22nm Processor (1.8GHZ) TDP 17W

Chipset

Intel® NM70 Chipset

Memory

Support 1* SO DDRIII 1333/1066MHz, Max. Up to 8GB

Graphics

Intel® HD Graphics

Offers 1*VGA,1*HDMI,1*LVDS(support Dual 24bit)

Expansion Slots

1* Mini-PCIE (support WIFI/3G)

1* MSATA (support SSD 6Gbps/WIFI)

LAN

1* RTL8105E 10/100Mbps Ethernet

Support Wake-on-LAN and PXE function

Storage

2* SATAII 3Gbps

Audio

Integrated Realtek HD ALC662 for 6-Channel output

Support MIC/Line-out/Line-in

Rear I/O

1* 12V DC_JACK input

1* PS/2

1* DB9 COM, the 9th pin supports +5V/+12V charged function

1* LPT

1* DB15 VGA

1* RJ-45 LAN

4* USB 2.0

1* AUDIO I/O (MIC and Line-out)

Internal I/O

1* RS232, the 9th pin supports +5V/+12V charged function

1* LVDS(2*15pin),support dual channel 24bit LCD

1* HDMI 2*8Pin

1* VGA1 2*5pin

4* USB 2.0 (If the Mini-PCIE is a USB signal, supports 2 USB)

1* AUDIO(Front Audio interface 2*5pin)

1* FP1 (2*5pin Front panel buttons and LED connected)

1* PS/2 1*6Pin

1* SIM

1* ATX_12V (Can be used as input and output 12V power connector)

2* PWROUT (Hard drive power connector)

Fun interface

1* CPUFAN and SYSFAN 4pin

GPIO

1* GPIO (Support 4-way GPIO function)

BIOS

AMI 32MB Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC_12V Single power supply

Operating Temp.

-10°C~60°C

Storage Temp.

-20°C~70°C

Humidity

0%-95%(relative humidity; non-condensing)

Dimension

170mm x 170mm
