Intel G41 Dual Gigabit LAN 3 ISA Slot Motherboard , ATX Ma

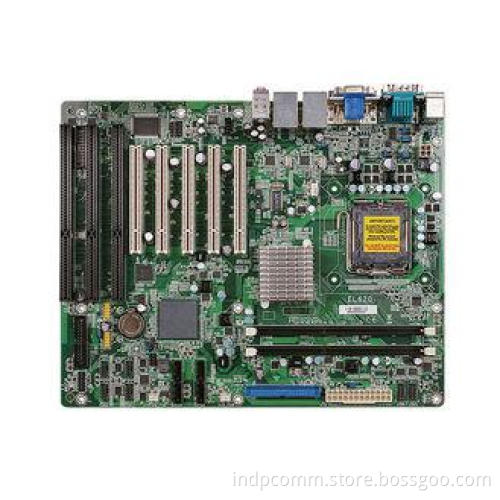

Intel® G41 ISA slot motherboard , 3 ISA , 5 PCI , 8 COM , 8 USB2.0 dual gigabit LAN ATX mainboard for ISA computer / server

Quick Details

• Support Intel^® Core™2 Quad/Duo CPU
• Chipset Intel^® G41/ICH7
• Support 2*DDR3 up to 4GB
• 5 *PCI
• 3* ISA
• 1 *VGA,
• 1 DVI-I (DVI-D signal)
• 8-bit DIO
• 2 Gigabit LAN ports
• 8* COM
• 8* USB 2.0
• 1* Parallel
• 4* SATA 2.0, 1*IDE
• Dimension: ATX 305mm (12") x 244mm (9.6")

Appliance

• For industrial computer
• For ISA computer / server

PROCESSOR

• LGA 775 socket supports:

- Intel® Core™2 Quad Q9400

- Intel® Core™2 Duo E8400/E7400/E6400/E4300

- Intel® Pentium® E6500/E5300/E2160

- Intel® Celeron® E3400/E1500/440

• Intel® Enhanced Memory 64 Technology (EM64T)

• Enhanced Intel® SpeedStep Technology (EIST)

• 1333/1066/800MHz FSB

CHIPSET

• Intel® chipset

- Intel® G41 Express chipset

- Intel® ICH7 I/O Controller Hub

SYSTEM MEMORY

• Two 240-pin DDR3 DIMM sockets

• Supports DDR3 800/1066MHz DIMM

• Maximum memory bandwidth of 17GB/s in dual-channel mode when

using DDR3 1066MHz

• Supports dual channel memory interface

• Supports up to 4GB system memory

• Supports unbuffered x8 and x16 DIMMs

ONBOARD GRAPHICS FEATURES

• Integrated Intel® GMA X4500

- 3D, 2D and video capabilities, DX10 and OpenGL 2.1

• Display ports: DVI-I (Chrontel CH7307C) and VGA

ONBOARD AUDIO FEATURES

• Realtek® ALC262 2-channel High Definition Audio

• High performance DACs with 100dB SNR

• ADCs with 90dB SNR

• Two stereo DACs support 24-bit PCM format for stereo audio playback

• Three stereo ADCs support 20-bit PCM format for multiple input

streaming

• S/PDIF audio interface

ONBOARD LAN FEATURES

• 2 Realtek® RTL8111DL PCI Express Gigabit Ethernet controllers

• 10Mbps, 100Mbps and 1Gbps data transmission

• IEEE 802.3u (10/100Mbps) and IEEE 802.3ab (1Gbps) compliant

SERIAL ATA (SATA) INTERFACE

• 4 Serial ATA ports compliant with SATA 1.0a specification

• SATA speed up to 3Gb/s (SATA 2.0)

IDE INTERFACE

• Supports up to two IDE devices

• Ultra ATA 100/66/33

SUPER I/O

• Winbond W83627DHG-P: supports 8-bit Digital I/O and printer port

• Fintek F81217U: supports COM1 to COM4

• Fintek F81217U: supports COM5 to COM8

ISA

• ITE IT8888G: PCI to ISA slot bridge

- 3 ISA slots

- Does not support ISA Master devices and ISA DMA devices

EXPANSION SLOTS

• 5 PCI slots (PCI 2.3)

• 3 ISA slots

Note: 1 PCI and 1 ISA are shared slots

REAR PANEL I/O PORTS

• 1 mini-DIN-6 PS/2 mouse port

• 1 mini-DIN-6 PS/2 keyboard port

• 2 DB-9 serial ports

- Supports RS232/422/485

- Pins 1 and 9 of RS232 functions as RS232 signal or power (selectable

via jumper)

• 1 DB-15 VGA port

• 1 DVI-I port (DVI-D signal)

• 2 RJ45 LAN ports

• 4 USB 2.0/1.1 ports

• Mic-in, line-in and line out jacks

I/O CONNECTORS

• 2 connectors for 4 external USB 2.0/1.1 ports

• 6 connectors for 6 external RS232 serial ports

• 1 8-bit Digital I/O connector

• 1 front audio connector for line-out and mic-in jacks

• 1 CD-in connector

• 1 S/PDIF connector

• 4 Serial ATA connectors

• 1 40-pin IDE connector

• 1 25-pin parallel connector

• 1 24-pin ATX power connector

• 1 4-pin 12V power connector

• 1 chassis intrusion connector

• 1 front panel connector

• 3 fan connectors

BIOS

• AMI BIOS

- 8Mbit SPI BIOS

ENERGY EFFICIENT DESIGN

• ACPI v3.0b specification

• System Power Management

• Wake-On-Events include:

- Wake-On-PS/2 KB/Mouse

- Wake-On-USB KB/Mouse

- Wake-On-LAN

• Microsoft®/Intel® APM 1.2 compliant

• AC power failure recovery

DAMAGE FREE INTELLIGENCE

• Monitors CPU/System/NB temperature and overheat alarm

• Monitors CPU/DIMM/NB/5V/12V/1.1V/VBAT voltages and failure alarm

• Monitors CPU/System/2nd fan speed and failure alarm

• Read back capability that displays temperature, voltage and fan speed

• Watchdog timer function

POWER CONSUMPTION

• 120.85 W with Intel® Core™2 Quad Q9400 at 2.66GHz and 1x 2GB DDR3

DIMM

TEMPERATURE

• 0oC to 60oC

HUMIDITY

• 10% to 90%

DIMENSIONS

• ATX form factor

• 305mm (12") x 244mm (9.6")
