5.0MP@30fps Network IR Dome Cameras
- Payment Type:
- T/T
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 5000pcs / week |
| Payment Type: | T/T |
| Certificate: | CE fcc rohs |
| Transportation: | Ocean,Land,Air |
5.0MP@30fps Network IR Dome Cameras

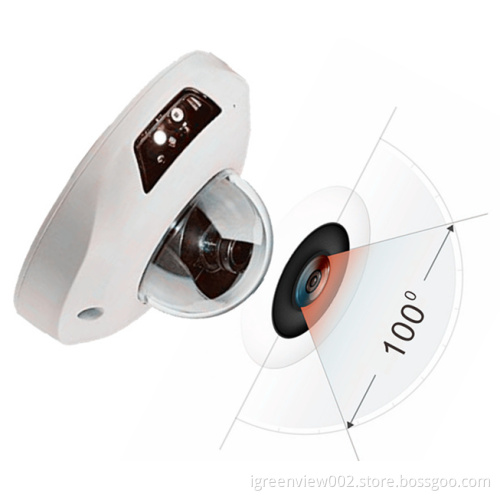

IGV-VD612IP-5MP 5.0MP HD Network Dome camera adopts the professional 2.8mm large wide-angle lens of mega pixels, built-in microphone to pick up clear voice and built-in SD card to record locally. You can monitor office or home around 100 square meters without blind angle.
Support 3M(2048*1536),5M(2560*2048),6M@30fps resolution.
Support POE, Micro SD card slot;
Support BNC Testing Output;RESET
|
Model |
IGV-VD612IP-3MP |
IGV-VD612IP-5MP |
|
|
Sensor |
1/2.8" CMOS sensor |
1/1.8"Sony CMOS sensor |
|
|
Min. Illumination (Color) |
0. 01Lux/F1.2 |
0.001Lux/F1.2 |
|
|
Shutter |
1/5s-1/50,000s |
||
|
Day&Night |
IR-CUT Auto, Black, Color |
||
|
Images Settings |
Images, D&N Mode, Automatic Iris, Metering, White Balance, Exposure, Shutter, Mirror, Noise |
||
|
Lens |
2.8mm Megapixel Lens, Wide Angle. (4.5mm 12MP HD Lens optional) |
||
|
IR Distance |
7-10 Meters (23 - 33 FT) |
||
|
Video Resolution |
3M(2048*1536)@30FPS |
5M(2560*2048)@30FPS |
|
|
Codec |
H.264 HP/MP/BP |
H.264 HP, H.265 |
|
|
Video Frames |
Real Time, Max. 25fps (50Hz); Max. 30fps (60Hz) |
||
|
Codec Mode |
VBR/CBR |
||
|
Data Rate |
Three Streams, Main: 1500kbps-8Mbps Sub: 50-1000kbps |
||
|
Frames |
1-30 frame adjustable |
||
|
Record |
Video and Audio Recording and Playback, MP4 Format |
||
|
Internet |
Free P2P, No Port Forwarding Needed. Free DDNS |
||
|
Network Video |
Standard RTSP, FLASH |
||
|
Remote Access |
QR Scan Free APP (iphone/Andriod Smartphone), WEB (IE/Safari/Chrome/ Firefox/Opera), Plug and Play NVR |
||
|
User Access |
8 |
||
|
Compatibility |
Onvif 2.4 and latest version, Customized compatibility with main stream CMS and NVRs: Hikvision, Dahua, Samsung, Nuuo, Miletone, Axxon, Luxriot, etc. |
||
|
WIFI |
NO |
||
|
POE |
Inside, IEEE802.3af |
||
|
Network Protocol |
IPv4/v6, RTSP/RTP/RTCP, TCP/UDP, HTTP, DHCP, DNS, FTP, DDNS, PPPOE, SMTP, SIP, UPNP, SMTP, RTSP |
||
|
System |
Time Sync. (Auto/Mannual//NTP/PC/NVR/RTC) Online upgrade /Alarm /System Status Reports |
||
|
Audio&Video |
Audio (G.711A/U) / Video (Three Streams) / Video Mask / Motion Detection |
||
|
Storage |
Micro-SD (Max. 32G for Snapshot and Recording Locally), NVR, Cloud |
||
|
Events/Security/Log |
Events (Events Setting/Schedule Recording/Schedule FTP and Snapshot), Security (Filter of User and IP Address), Log (System/Alarm/Acceess etc.) |
||
|
Network Interfaces |
RJ-45, 10/100Base-T |
||
|
Microphone |
Inside Water Proof MIC (- 32dB) |
||
|
Audio via Cable |
Audio In/Out, Talkback (G.711A, G.711U) |
||
|
Local Storage |
Inside Micro SD up to 32G |
||
|
Others |
Hardware Reset, CVBS Analog Output |
||
|
Materials |
Outer: Zinc alloy metal, The window and the ball cover: PC, Inter: ABS |
||
|
Color |
White (OEM) |
||
|
Application |
Indoor and Outdoor |
||
|
Installation |
Wall-mounting, Ceiling-mounting |
||
|
Power Supply |
DC12V & POE |
||
|
Work Temperature |
-10℃-50℃ |
||
|
Work Humidity |
10%-90% |
||
|
Size |
ϕ102*56mm ( ϕ4.02*2.2 in) |
||
|
Reliability |
IP65, Waterproof, Vandal Proof |
||
|
Weight |
450g |
||
