ion vapour deposition machine

Arc ion deposition alloy film magnetron sputtering vacuum coater

1,Physical Vapor Deposition (PVD) is characterized by the creation of a metal vapor that can be reacted with different gases to form a thin film coating. The most common PVD methods used today are arc deposition and sputtering. Both processes are carried out under high vacuum conditions within a coating chamber.
This technology allows us to apply biocompatible, wear protective, anti-allergic coatings for a variety of medical devices including orthopedic implants and surgical instruments.
2. Advantage: High deposition rate, High ionization rate, Easy operation, High productivity and Low cost. No waste gases and water.Magnetron sputtering stably at low temperature.
3. Modes:
    (1) Semi-automatic/Automat
    (2) Automatic bombardment
    (3) Accurate control of various process time

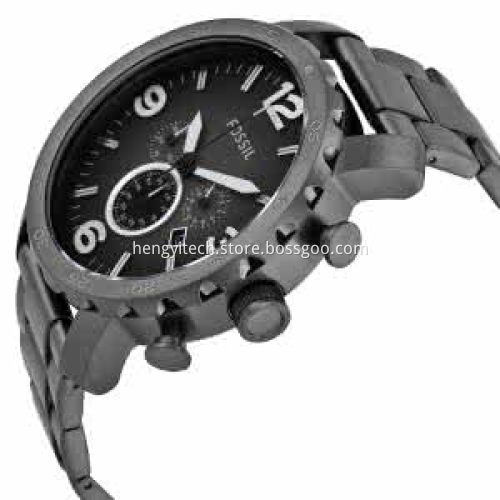

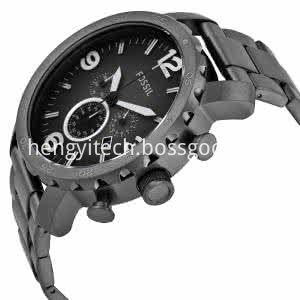

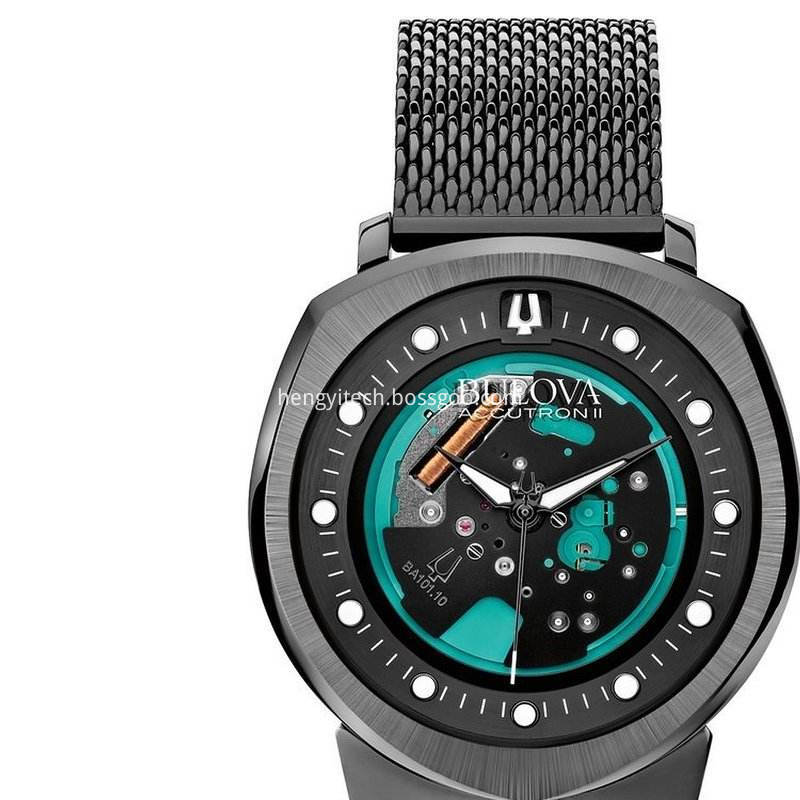

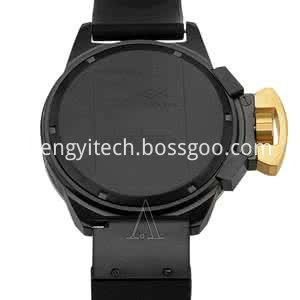

4. Application: Small-sized stainless steel plates, ornaments for hotels, cutters, machine tools, glasses, watches, jewelry, locks, faucets, carbide cutters ,drill bits and etc. A wide range of colors could be achieved.
5. Coating color: Gold, Rose gold, Black gold, Coffee, Silver, Champagne gold, Multicolor, etc.
6. Coating film:titanium nitride film, titanium carbide film, zirconium nitride film, titanium aluminum film, chromium nitride, and other superhard functional metal film.

dimension of  vacuum chamber	700×1000mm	800×1000 mm		900×1000 mm	1000×1000 mm
pumping speed	1×105Pa~3×10-3Pa≤20min
limit vacuum	≤1×10-3Pa
system form a  complete set	KT-600×2-2X-30/2X-70×4(ZLD-300×2)			KT-600×2-2X-30/2X-70×4 (ZLD-300×2)
Work piece system	Rotation of the planet forms(8 roating shaft, since the amount)
heating methods	Edge installation of stainless steel heating tube
ion bombardment	direct current 1000V or contravariant impulse 1000V high voltage bombardment
vent system	Mass flow controller control input gas
arc target amount	20			25
working methods	plc semi-auto control or pc+plc auto control
working gas	Ar N2
total power	120KW		160KW
compress air	0.4~0.8MPa
water-cooling system	hydraulic pressure/water temperature:≤25°C/≥0.25MPa(user provide for himself
