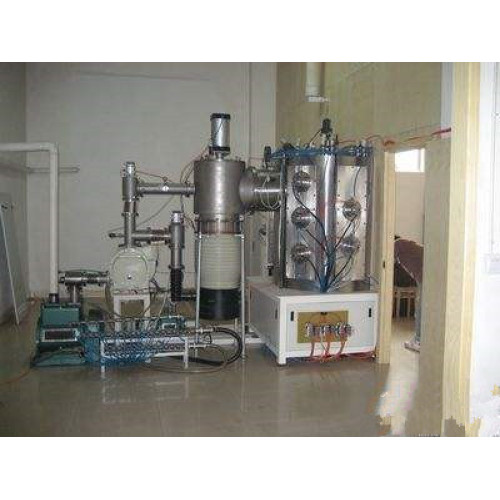

Vacuum Multi-Arc Ion Coating Machine

Specifications
Vacuum Multi-Arc Ion Coating Machine for Glass Metal Ceramic Golden Silver Multi rainbow plating
1.Ti-gold, Rose gold,silver,
Product introduction:
Vacuum Multi-Arc Ion Coating Machine for Glass Metal Ceramic Golden Silver Multi rainbow plating
Model: FOXIN-TG-2040
Size:Φ2000×H4000mm
Power: 200kw
Occupied area: 35-55m²
Arc source:  16-24sets
Coating Film: Decorative coating
Advantage: High ionization rate, high deposition rate, stability and low temperature to magnetron
sputtering, fine particles, Simple operation, high yield etc.

Application:
Vacuum Multi-Arc Ion Coating Machine for Glass Metal Ceramic Golden Silver Multi rainbow plating
Color:  gold/rose glod/black gold/silver/champagne gold,sapphire blue, black, etc.
Coating: TiN,CrN,ZrN,TiCN,TiCrN,TiNC
Remark: Specially tailored according to customers` products and process requirements.

Vacuum Multi-Arc Ion Coating Machine for Glass Metal Ceramic Golden Silver Multi rainbow plating

 Technology Parameter

Vacuum Multi-Arc Ion Coating Machine for Glass Metal Ceramic Golden Silver Multi rainbow plating

FOXIN-TG Series Parameter
Multi-Arc Ion Coating Equipment Model(Diameter less than 2m)
Model	HYJ-1418	HYJ-1620	HYJ-1820	HYJ-2021	HYJ-2023	HYJ-2040
Chamber(mm)	D1400×H1800	D1600×H2000	D1800×H2000	D2000×H2100	D2000×H2300	D2000×H4000
Structure	Vertical door, hanging or horizontal cart structure,  pumping system and water cooling system
Vacuum System	Sustaining Pump + Mechanical Pump + Roots Pump + Diffusion Pump  or Molecule Pump
Measurement	1 set pirani, 1 set cold cathode, 1 set diaphragm gauge
Power	DC power, MF power, pulse power(bias power, arc power)
Ultimate Pressure	1.0- 6.0×10-4Pa, Non-loading cooling
Arc Source	16-24 set	16-24 set	18-26 set	18-26 set	22-28 set	22-32 set
	200A-300A	200A-300A	200A-300A	200A-300A	200A-300A	200A-300A
Bias Power Supply	40KW/1 set	40KW/1 set	40KW/1 set	50KW/1 set	50KW/1 set	60KW/1 set
Magnetron Power Supply	1-2 set	1-2 set	2-3 set	2-3 set	-	-
Temp.	Normal temperature ~ 300°C can be controlled and adjusted(PID temperature control)
Gas	Ar, N2,O2, C2H2,etc.
Cooling	Water cooling circulation, equip with industrial cooling tower or industrial water chiller(refrigerating machine) or cryogenic system.(customers provide)
Controlling Method	Manual, half-auto, auto, touch screen operation, PLC or computer controlled
Supply Index	Air Pressure 0.5-0.8MPa, Water Temp.≤25°C,Water Pressure≥0.2MPa
Total Power	100~125KW	125~145KW	145~165KW	165~185KW	185~200KW	200KW
Output Frequency	Voltage 380V,Frequency 50HZ/60HZ
Occupation Space	15~50m²	15~50m²	25~55m²	25~55m²	35~55m²	35~55m²
Remark	customization
