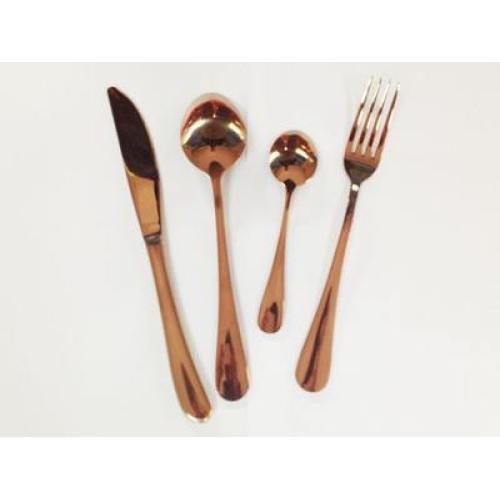

Tableware Multi - Arc Ion Plating

Get Latest Price

Payment Type:: T/T, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 40 Days

Transportation:: Ocean

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	30
Supply Ability:	7
Payment Type:	T/T,Western Union
Incoterm:	FOB,CFR,CIF
Certificate:	ISO,CE
Transportation:	Ocean
Port:	Shenzhen

Product Description

Tableware Multi - Arc Ion Plating Product Description

1. Vacuum multi-arc ion coating machine is a high-tech environmental friendly product for metal, jewellery, glass and ceramic products surface coating.
2.After coating by this machine can improve the workpieces` hardness, wear resistance, corrosion resistance etc..
3.The machine itself has many advantages such as quick pumping speed, stable vacuum environment, large load capacity and uniform coating film.
4.Application industry including the watch industry (strap, case, dial), glass ceramics industry (glass tableware, ceramic crafts), hardware industry (sanitary ware, door knobs, locks), architecture industry (stainless steel plate, stair railings, columns), precision mold industry (standard punch mold, forming mold), tools industry (drill bits, carbide cutters, broaches, shaving heads), automotive industry (piston, piston rings, alloy wheels) as well as pens and glasses etc..
It can coat TiN, TiCN, CrN, TiALN, TiNbu, TiCrN, ZrN, and various kinds of diamonds film (DLC).
5.The film makes the product`s surface much more beautiful and wearable

Model	LZ-1000	LZ-1200	LZ-1300	LZ-2000	LZ-2000	LZ-2000
Vacuum Chamber Size(mm)	ø1000×H1100mm	ø1200×H1300m	ø1300×H150000mm	ø2000×H2100mm	ø2000×H3500mm	ø2000×H4000mm
Application	Hardware industry, sanitary appliance industry, decoration industry, household appliances industry
Application	Faucet, stair handrail, household appliances, LOGO signs, stainless steel frame, stainless steel parts and plate, etc...
Coating Film Type	Ti-Gold, Rose Gold, Champagne Gold, Japanese Gold, Bright Silver, Rainbow, Jewelry Blue, Rose Red, Black, etc.
Vacuum Chamber	Vertical door, hanging or horizontal cart structure, equip with pumping system and water cooling system
Vacuum System	Sustaining Pump + Mechanical Pump + Roots Pump + Diffusion Pump or Molecule Pump(specific model according to customers' requirements)
Vacuum Measurement System	1 set pirani, 1 set cold cathode, 1 set diaphragm gauge
Supply Type	DC power, MF power, pulse power(bias power, arc power)
Ultimate Pressure	Non-loading cold state 1.0- 6.0×10-4Pa
Arc Source	8-10 set	8-12 set	12-16 set	18-26 set	22-28 set	22-36 set
Arc Source	200A-300A	200A-300A	200A-300A	200A-300A	200A-300A	200A-300A
Bias Power Supply	40KW/1 set	40KW/1 set	40KW/1 set	50KW/1 set	50KW/1 set	60KW/1 set
Magnetron Power Supply	1-2 set	1-2 set	2-3 set	2-3 set	2-3 set	2-3set
Rotation	Multi-axis planetary with frequency control(can be controlled and adjusted)
Baking Temperature	Normal temperature - 450℃ can be controlled and adjusted(PID temperature control)
Gas	3 or 4 ways working gas flow control and display system matched with auto gas adding system
Gas	Ar, N2, O2, C2H2,etc.
Cooling Method	Water cooling circulation, equip with industrial cooling tower or industrial water chiller(refrigerating machine) or cryogenic system.(customers provide)
Controlling Method	Manual, half-auto, auto, touch screen operation, PLC or computer controlled
Supply Index	Air Pressure 0.5-0.8MPa, Water Temperature≤25℃,Water Pressure≥0.2MPa
Warning	Alarming system will work when hydropenia, over-voltage, circuit break such abnormal situation happens and carry out related protect solution and electric interlock.
Total Power	60~80KW	60~90KW	90~120KW	165~185KW	185~200KW	200KW
Output Frequency	Voltage 380V,Frequency 50Hz(equip as customers' national electricity standard)
Occupation Space	15~50m²	15~50m²	25~55m²	25~55m²	35~55m²	35~55m²
Remark	Design and produce special machine according to customers' require, can add magnetron sputtering target,MF twins target,etc.
