coating equipment for automotive lights

Reflective lampshade dedicated automatic coating equipment, high-power electrode plate bombardment, symmetrical electrode evaporation, automatic control. With uniform film, acid, alkali, salt, water and other indicators in line with international standards to nano-technology means anti-external corrosion effects. Vacuum chamber to complete the evaporation of aluminum and plating protective film process (bombardment + aluminum + bombardment + charge + plating protective film) to prevent secondary pollution. 10.4-inch color man-machine interface touch screen, PLC configuration software, can be fully automated operation of the entire process.
Use / application area
       Car light protection film equipment for automotive light protection film, designed for cars, motorcycles lamps, in the vacuum chamber to complete the evaporation of aluminum and radio frequency plasma plating protective film. The equipment uses advanced plasma polymerization protective film technology, equipped with resistance heating evaporation system, to achieve the automotive lighting aluminum reflective film and polymer protective film once completed the production and technical requirements. According to the production of high-grade automotive lighting special, equipment configuration PLC automatic control system to improve production efficiency and ensure product quality. The plating of the plasma protective film through the national standard of automotive lighting testing, had acid, alkali, salt test and other standards.
       Applications: Dedicated to all types of automotive lights reflector plating metal aluminum reflective film and transparent protective film, especially high-end automotive headlamps production of special coating equipment.

Membrane type car reflection aluminum film: a complete automatic plating protective film process
Power supply type resistance heating tungsten wire evaporation transformer power supply, high pressure ion bombardment power supply, thyristor power supply

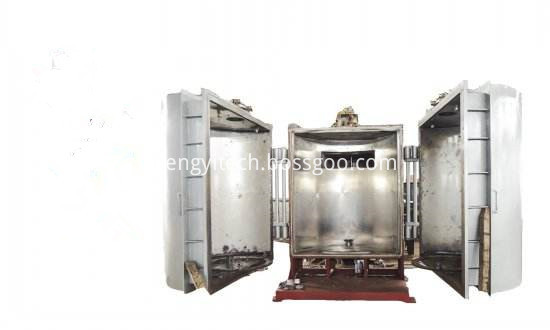

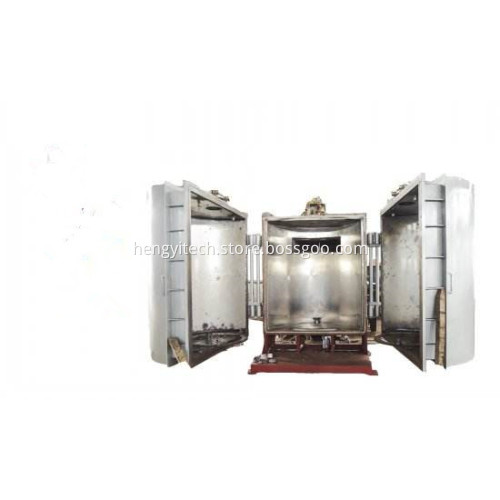

Vacuum chamber structure vertical double door, pumping system
Vacuum system slide valve pump + Roots pump + diffusion pump + maintenance pump (or optional: cryogenic pump, cryogenic system)
Protective film gas independent stainless steel cylinders AK, BK, CK
Inflatable system three-way solenoid valve (inlet) to adjust the inflatable
High pressure bombardment system 13KVA 3000V
Ultimate vacuum 8 * 10-4Pa (no load, clean room)
Pumping time No more than 6 minutes to 5 * 10-2Pa
Workpiece rotation mode 6 axis / 8 axis / 9 axis male rotation / variable frequency stepless speed regulation
Control mode manual + semi - automatic + automatic integration / touch screen + PLC
Remarks Vacuum chamber size can be customized according to customer's products and special process requirements
