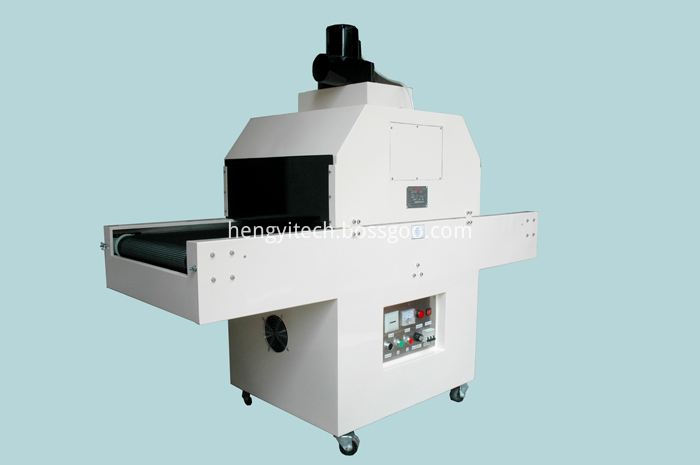

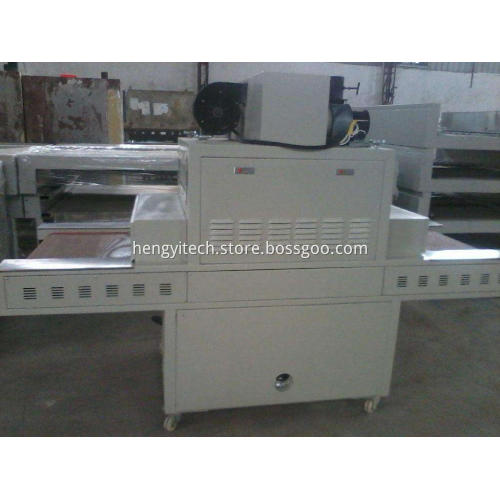

uv light curing system

The UV curing ovens with conveyor, is used in cellphone crust, compactdisc, thin film switch, electronic andplastic crust UV surface topainting, kinds of UV paint, IMD injection productscuring. Morever, italso can be used to cure electronic components, liquidcrystal film,terminal gumming, cellphone parts sticking and LCD etc. UV curing furnace using conveyor, is a small uv dryer, hand spray large pieces of products, in the uv dry curing furnace leveling and dry curing. Uv desiccant for mobile phone shell, compression plate, membrane switch, electronic and plastic shell UV surface mount, all kinds of UV paint, IMD injection molding mold. More importantly, it can be used for the treatment of electronic components, LCD film, the terminal glue, mobile phone parts paste and LCD and so on.
 Performance characteristics
 1) There are 2 sets of UV light source system,please utilize it according to the detailed requirement
 2) The imported Teflon mesh belt conveyor, it is enjoying precise production, smooth running , and restful.
 3) The speed of conveyor is adjustable,it can be adjusted any reasonable speed you need.
 4) Precise and imported photospot,high reflective lampshade, quick drying.
 5) The illuminating height of UV shade is also adjustable.
6)The operating current of  UV lamp is showed outside so as to control the working status.

7) There is a heat-extraction system to keep a high-efficiency working environment .

model	Rated voltage / light power	width of belt	convey speed m/min	outside dimension mm	weigh
HYJ-UV400	220V/3KW×1	380mm	5~25	1500×580×1150	120kg
HYJ-UV500	380V/3KW×2	500mm	5~25	2000×780×1350	220kg
HYJ-UV800	380V/5.6KW×2	800mm	5~25	2000×1100×1350	325kg
HYJ-UV800/2	380V/5.6KW×2 30W ×4	800mm	5~25	2500×1100×1350	450kg
