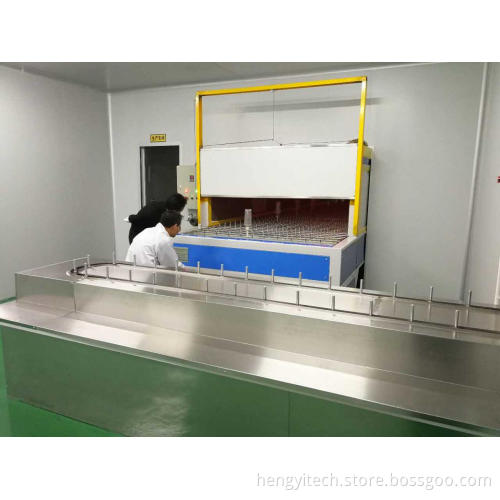

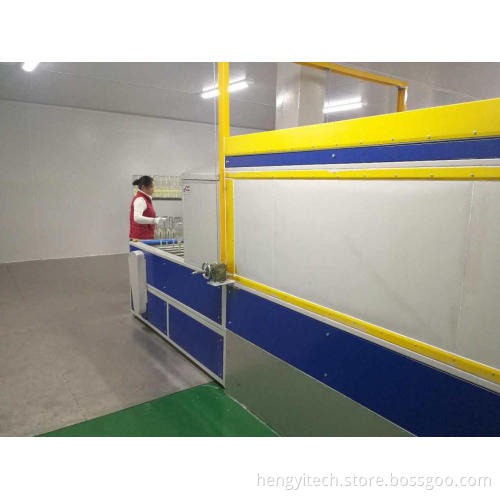

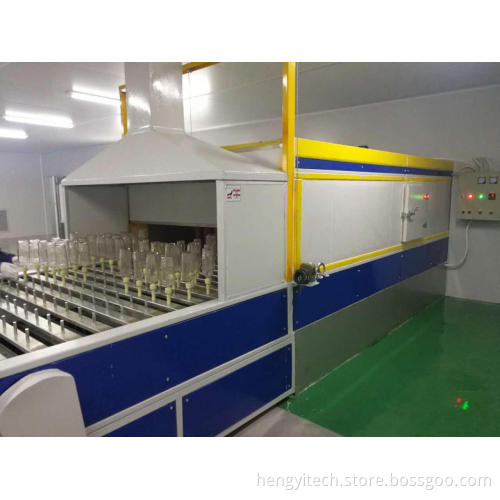

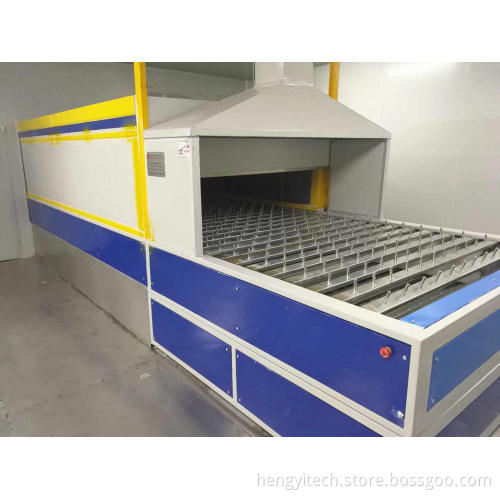

spray coating tunnel drying oven

 Tunnel oven technical and material description:
1, material: line frame with 50 * 50 iron square production, footrest adjustable height.
2, power: According to the length of the configuration 1HP, 2HP, 3HP motor, with 60,70,80 reducer, matching the same frequency of the inverter.
3, conveyor belt: 2mm thick green PVC belt.
4, the belt supporting the use of Ø25 galvanized black rubber drum, interval 280mm / article.
5, the lid used: the outer layer of T1.2 steel, the inner layer of T1.0 galvanized sheet, the middle filled with cotton insulation.
6, the wind: the top of the furnace with a motor, and squirrel-cage wind wheel, so that the furnace stir evenly.
7, the heat used: stainless steel or glass heating tube, the temperature room temperature 10-90 degrees adjustable.

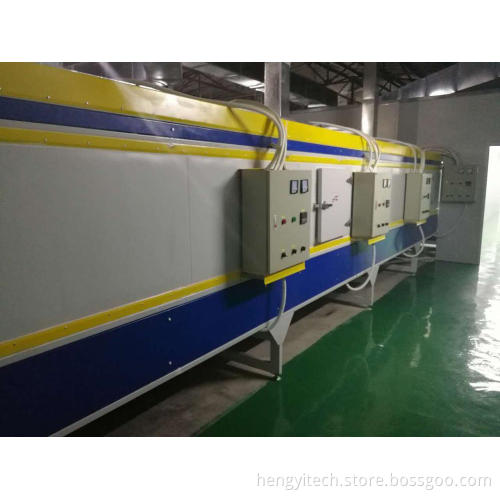

8, electronic control using: automatic temperature control system, sub-independent control.
9, the bottom of the pipeline belt cover with dust T1.0 galvanized sheet.
10, the top of the oven with exhaust valve, discharge interface (customers need to self-exhaust duct and exhaust fan).
11, paint: line spray computer white paint or green paint.

Tunnel oven technical  parameters

Working principle of the  tunnel drying oven, tunnel oven long body hot air circulation and far infrared drying (a kind of electric heating oven), mainly for high yield, high efficiency requirements of dry heating demand, within the tunnel oven heating element, distribution and temperature controller, tunnel oven type, continuous type drying equipment, bilateral chain transmission, mainly include the conveyor system with two major part is drying furnace, furnace temperature uniformity, conveying speed regulation, smooth operation, high production efficiency, mainly USES the chain mesh belt transmission, used for production of different products, can be adjusted according to different requirements, appropriate speed and temperature.
