electric spray & paint machine

UV Spray Line Workflow (Reference): Load -> Manual Dust -> Primer Spray -> Flash -> Curing -> Topcoat Spray -> Infrared Flattening -> Curing -> Cooling -> Unloading
Detailed workflow
Primer: On-line Electrostatic Cleaning Primer Loading Products - Infrared Flat UV Curing - Cooling - Dehydration Line
Vacuum coating: load products in the evaporative vacuum coating machine - metallized unloading products
Top paint: UV products on the product - electrostatic cleaning top paint - infrared leveling preheat - UV curing - cooling - unloading products.

The following are the same as the "
Welcome to contact us to customize the design and visit our company's installation view. We are happy to offer you the best offer!

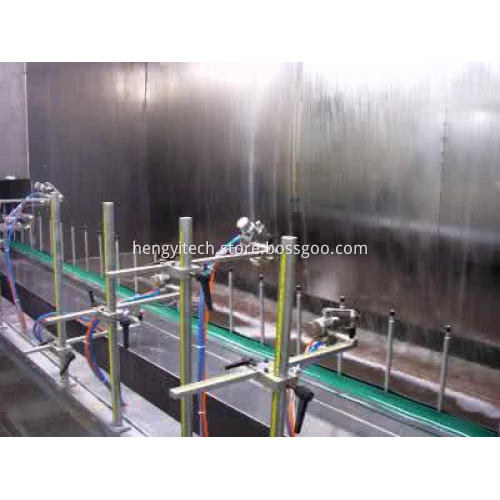

Spray gun fixed spray system is generally installed in the clean room, to facilitate high-quality production. Temperature and humidity control is essential for stable, high-quality production, so the AHU air conditioning system is always used for automotive parts uv painting systems, such as shade uv painting, mirror uv painting.

Size:3.0*2.5*2.2m
Stainless steel machine body
Stainless steel water tank
Explosion-proof lighting system
HEPA Filter
Exhaust fan,Air volume-1200 m³/hr
With explosion proof glass  observation window

Oven

IR tunnel oven and UV machine
TEM:50-150 degree
Heating pipe and UV lamp
Mirror stainless steel inner wall
T50mm rock wood thermal insulation
China motor
OMRON Temperature card

Air supply

Blowing Rate15000m³/hr
Machine size:1.2*2.1*1.16m
T50mm sandwich steel panel  machine body
China motor
Taiwan frequency converter
Filtering units
