semi automatic spray paint booth

Product Application

Semi-fully automatic spray booth and automated plastic spray machine lines have the same functions, which increase productivity and automate the spray line production efficiency compared to semi-automated paint sprayers. The semi-automatic paint sprayer requires an additional curing oven, which can be a uv curing oven, a tunnel curing oven and a stationary oven. The automated spray line is solidified directly into the oven after spraying and does not require manual transfer. Widely used in the spraying of plastic, glass, hardware, ceramics, wood and other products.

Main Features

1) The booth frame is welded firmly. The operation is simple, only the switch is needed, and the air pipe can start the machine.
2) Use stable performance motors, inverters, including pneumatic components, electrical components and operating parts.
3) Use a 50.8mm pitch to harden the chain.
4) With multiple switch protection. Main power switch, spray gun switch, inverter switch.
5) The fixture is made of aluminum rod turning.

Machine Parts

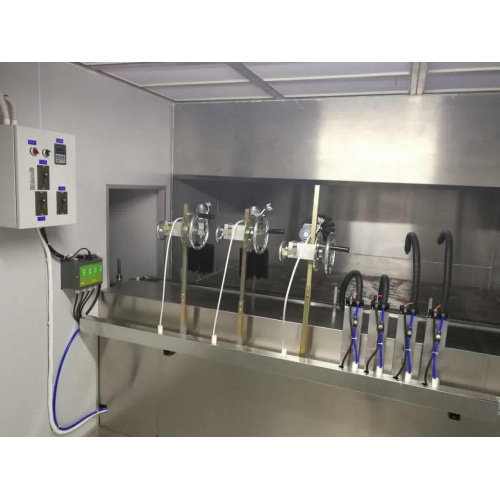

Name:semi/fully automatic spray booth

Brand: HENGYIJIA

Original: China

Features:

Mini automatic spray booth is low investment in the early stage can replace manual spraying. Save costs, improve quality and increase efficiency. Applicable products, such as: electronic products, tablets, mobile phone casings, mobile power, glass bottles, hardware accessories, etc. are suitable.

Main Features

Name: curing oven
Brand: HENGYIJIA
Original: China
The oven temperature can adjust.it is 60 to 180 c.

The Jigs by cnc turning parts.

Machine Parts

1Name: uv curing oven
Brand: HENGYIJIA
Original: China.
The uv curing oven have 6 uv lamp,4x5.6kw uv lamp and 2x3.0 uv lamps.

The UV curing oven can adjust the light energy to three grades: high, medium and low. The position of the uv lamp can be adjusted. There is an exhaust system in the uv furnace, which can extract the heat generated by the uv lamp at any time.

Main Features

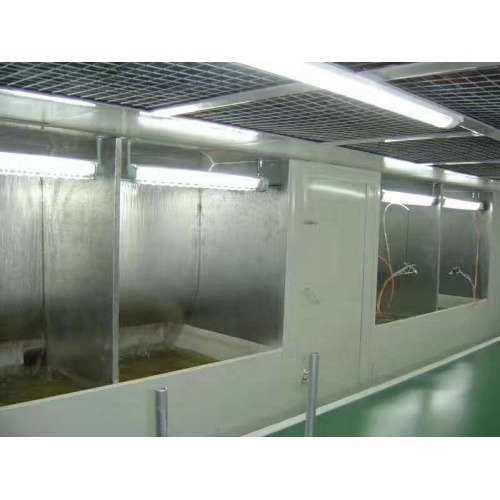

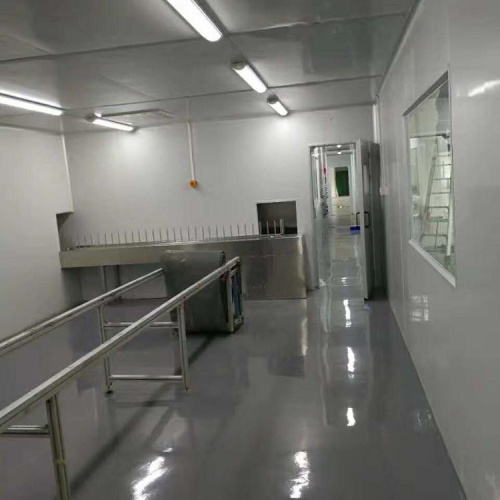

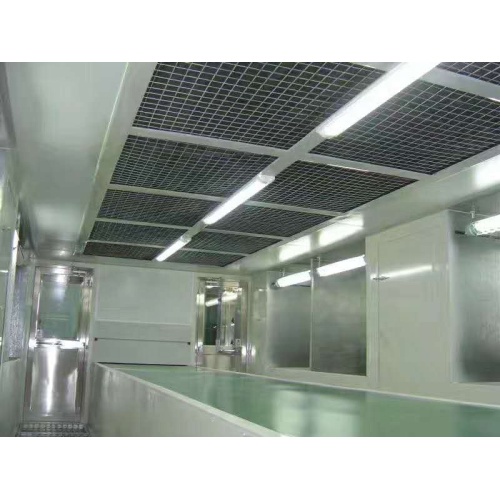

Name: clean room
Brand: HENGYIJIA
Original: China
The main function of the dust-free workshop is to keep the spraying environment clean. During the spraying and curing process, no dust falls on the surface of the product, which affects the quality of the product.
The material of the clean room is rock wool board, gypsum board production and installation, they all have fireproof function. Rock wool board thickness is 75mm.
