glass cold coating machine

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CIF, EXW, FCA

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	600
Supply Ability:	50
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	CE ISO
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

glass cold coating machine

Product Application

The glass spraying line is divided into a uv glass spraying production line and a water-based baking paint spraying line. The temperature required for the two spraying production lines is different, and the uv automatic spraying production line only needs low temperature flowing products. The water-based paint spraying production line belongs to the high temperature production line. The baking temperature is between 150 and 220 degrees.

The size of the automatic spray line is determined by the daily production.

Painting Booth	SS 304/SS 201/ Steel	Clean Room Material	75 mm / 100 mm rock wool board
Chain pitch	50.8mm	Painting pump	716 paint pump
Control	PLC/SWITCH	Guns	Iwata-101/WF-60B
Electrical appliances brand	Mitsubishi frequency converter	Fresh air supply system	Primary efficiency, medium efficiency, high efficiency filtration system

Main Features

1) The equipment frame is welded firmly. The operation is simple, only the switch is needed, and the air pipe can start the machine.
2) Use stable performance motors, inverters, including pneumatic components, electrical components and operating parts.
3) Use a 50.8mm pitch to harden the chain.
4) With multiple switch protection. Main power switch, spray gun switch, inverter switch.
5) The fixture is made of aluminum rod turning.

Certifications

Detailed Images

Machine Parts

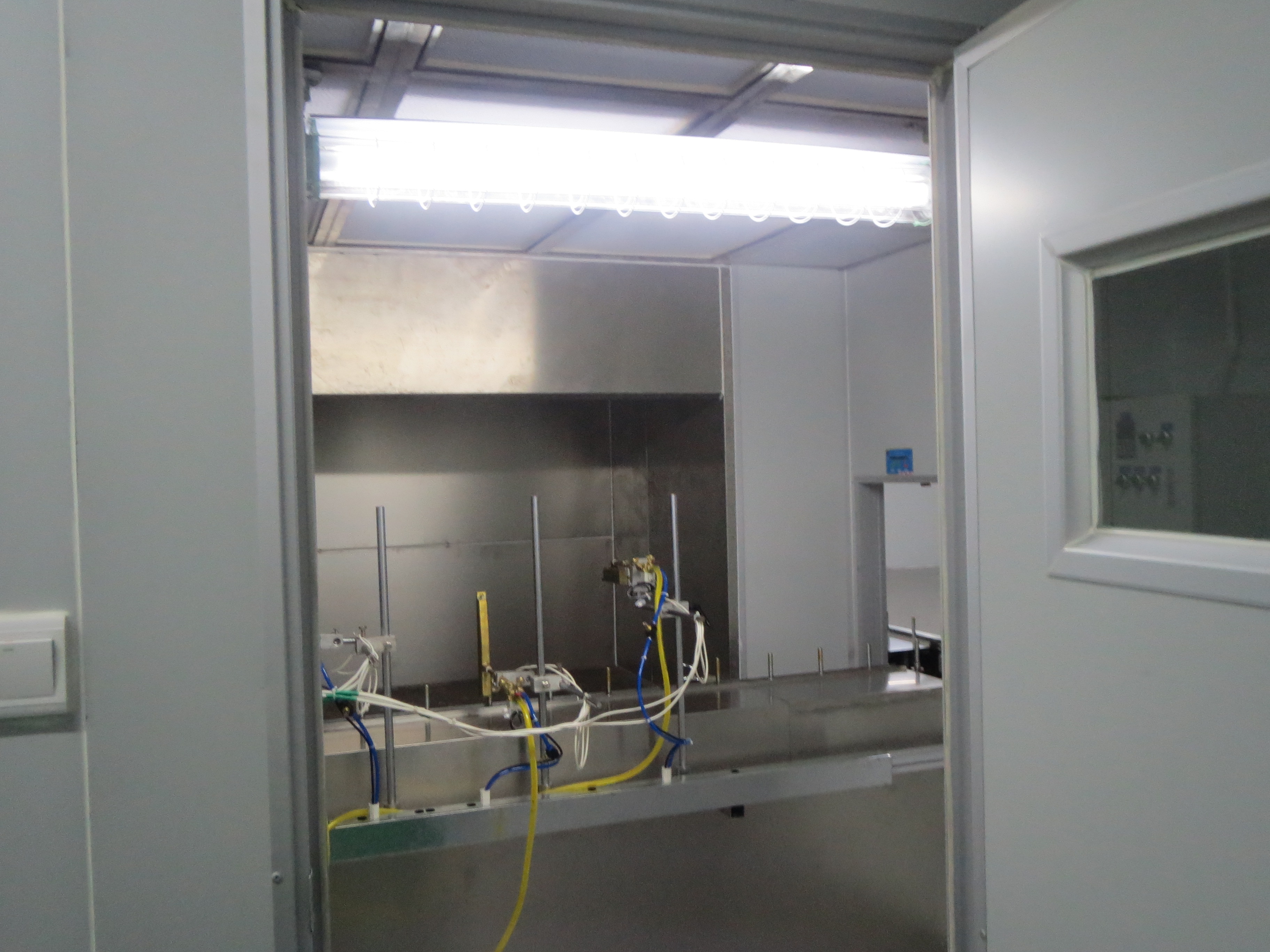

Name: Primer spray booth

Brand: HENGYIJIA

Original: China

Painting Booth Material:SS 304/ SS 201/ Steel

Exhaust fan, pump circulation system, explosion-proof lamp.

Main Features

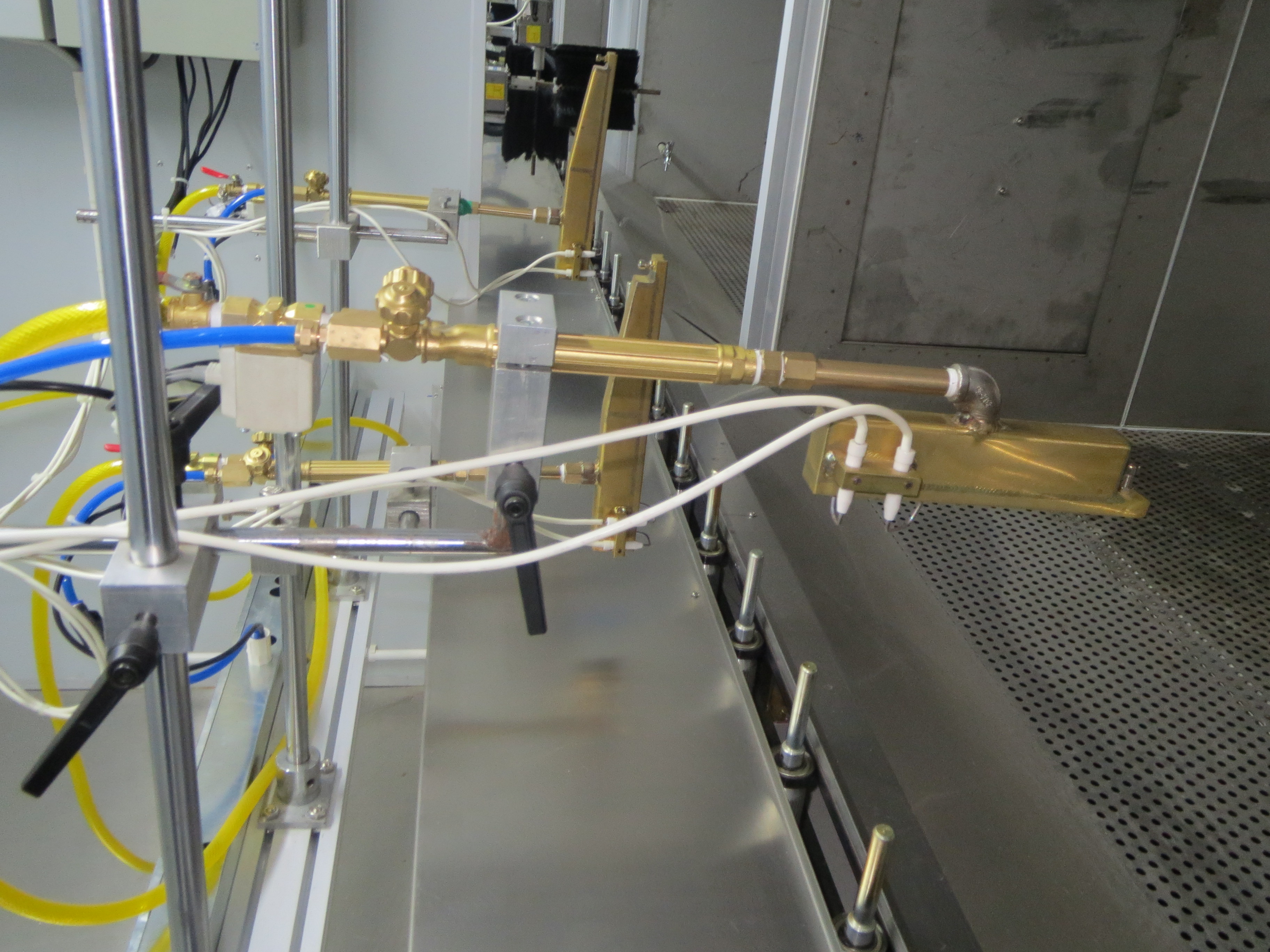

Name: Flame booth
Brand: HENGYIJIA
Original: China
The surface of the product is treated by flame, which can burn the dust on the surface and change the surface properties of the product.Increase the adhesion of paint.

Machine Parts

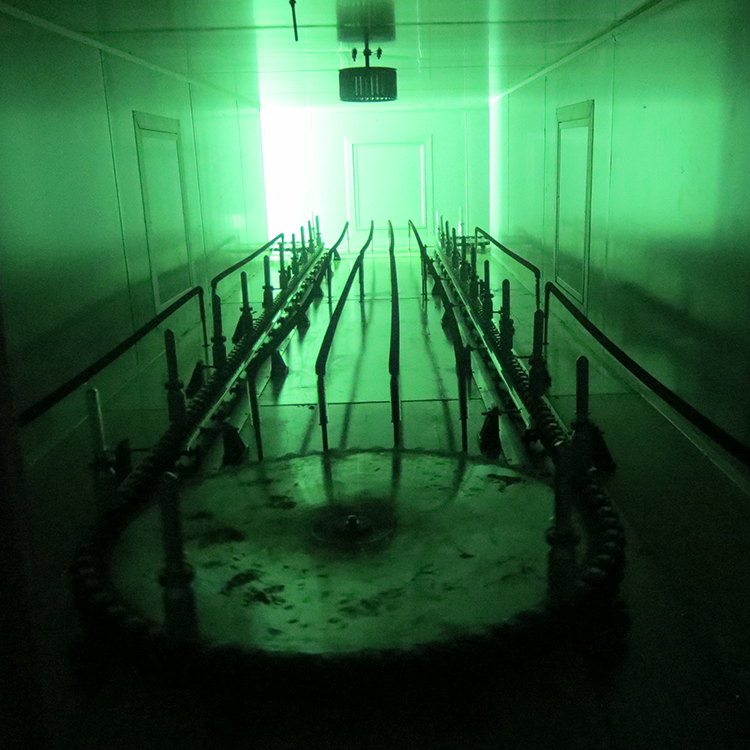

Name: Curing oven
Brand: HENGYIJIA
Original: China
The material of the fluidized open hearth furnace is suitable for stainless steel heating pipe and air motor to ensure the temperature balance inside the furnace.

Main Features

Name: 180 degree rotary sprocket
Brand: HENGYIJIA
Original: China
The diameter of the sprocket is determined by the diameter of the product.

OUR SERVICE

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Introduce the products to customers in detail

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Debugging production

Packing & Delivery

Packaging
Size	1200(L) * 600 (W) * 550 (D)
Weight	100kg
Packaging Details	Liquid packing case All of our company's wooden boxes are made of exemption materials and can be exported to any country for direct customs clearance. If your product is large in size and needs to be sent from the whole cabinet, our company will fix it with wooden frame, and we will use pe film packaging or packaging according to customer's special requirements.

Packaging
Size	12032(L)x2352(W)x2393(H)
Weight	5000KG
Packaging Details	All of our company's wooden boxes are made of exemption materials and can be exported to any country for direct customs clearance. If your product is large in size and needs to be sent from the whole cabinet, our company will fix it with wooden frame, and we will use pe film packaging or packaging according to customer's special requirements.
