Glass bottle interior spray coating machine

Own design & manufacture & selling automatic spray coating machine for glass bottle, like brand wine bottle, cosmetics packages ,perfume bottle etc. fruitful experience in manufacturing and installation for fully automatic spray painting line in glass product field. we get solution for your full technology support in operating the line and skills for making better quality product coating. some glass bottle need to spray inside of the bottle

Example plan for automatic spray painting equipment/automatic spray coating machine for glass bottle.

Designed condition required:

Factory space

spray painting equipment/line specification :90 degree tunning guiding wheel Φ240mm, back turning 1800 degree Φ 300mm wheel

Line speed : 1-25M/min, frequency conversion and adjustable

Heat sourcing: heating tubes

Curing oven temperature: 0-100℃ can be adjustable.

Power: AC380V  50HZ 3 phase

Lighting:AC220V  50HZ  single phase

Power control:AC220V (transforming in the power box)

Compressor supply: :0.6±0.05MPa

Whater preasure :0.1MPa(1.0kg/cm2 above)

Spindle :44.45㎜

23pcs spindle per 1 meter

Line length:56m

equipment total power : 80KW

automatic spray coating machine process:

Labor loading productions→electrostatic dust free---flame treatment---UV base coat,top coat spray booth→heating leveling→light curing---unloading for vacuum metallizing.

Electrostatic Dust Free Booth

Dimension: W1200mm*D1700mm*H1800mm

Flame treatment booth

Booth Dimension : W1200mm*D1700mm*H1800mm

UV base coat top coat spray booth

Water curtain booth :

Dimension :W3000mm*D2400mm*H2400mm

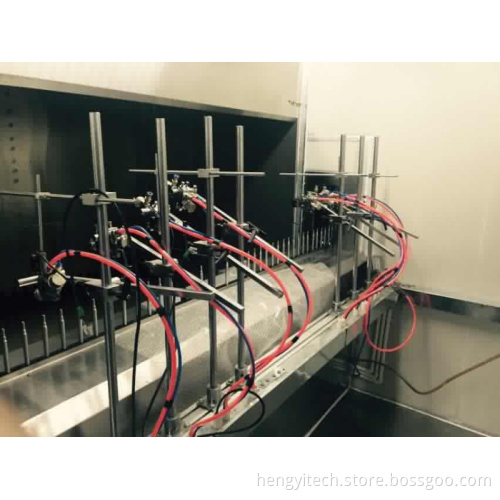

Spray gun systems:

Spray gun:WA-101 model(1.3 nozzle)

Rotation sstem

Solenoid valune spray gun control

Rotation type:  belt rotation , front and back rotation function,crocking resistance , frequency conversion adjustable.

Heating leveling oven

IR lamps for heating

oven hight :800㎜

Temperature adjustable : 0-100℃

Chainlink passway:600㎜

Electricity control system

Brand component.

Equipment Material:

stainless steel .

The equipment without including air supply ,exhaust pipes, deducting compressor etc.

Payment terms: 35% TT deposit, 65% TT balance before shipment.

Installation onsite support: 2 engineers for guiiding.
