Automatic spray painting equipment for glass products

Our factory  produce  glass products, bottles, handicrafts automatic spraying line. the total length of 120 meters, of which 90 meters baking area. the workpiece rotation axis can be installed according to product diameter (size) or extraction. baking temperature: adjustable at room temperature -220 °.the spraying area with purification drencher and (optional) lifts,according to customer requirements can be set to spray a number of areas and dry areas. the total power 80KW, constant temperature power of about 40KW,according to the production needs of customers production.

Own design & manufacture & selling Auto painting equipment for glass bottle, like brand wine bottle, cosmetics packages ,perfume bottle etc. fruitful experience in manufacturing and installation for fully automatic spray painting line in glass product field. we get solution for your full technology support in operating the line and skills for making better quality product coating.

Example plan for automatic spray painting equipment/auto spray painting line for glass bottle.

Designed condition required:

Factory space

spray painting equipment/line specification :90 degree tunning guiding wheel Φ240mm, back turning 1800 degree Φ 300mm wheel

Line speed : 1-25M/min, frequency conversion and adjustable

Heat sourcing: heating tubes

Curing oven temperature: 0-100℃ can be adjustable.

Power: AC380V  50HZ 3 phase

Lighting:AC220V  50HZ  single phase

Power control:AC220V (transforming in the power box)

Compressor supply: :0.6±0.05MPa

Whater preasure :0.1MPa(1.0kg/cm2 above)

Spindle :44.45㎜

23pcs spindle per 1 meter

Line length:56m

equipment total power : 80KW

Auto spray painting equipment production process:

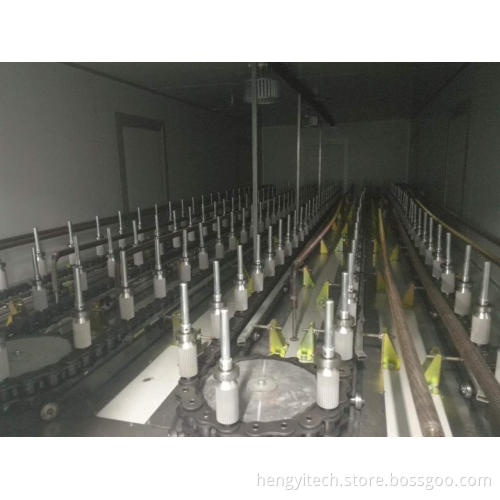

Labor loading productions→electrostatic dust free---flame treatment---UV base coat,top coat spray booth→heating leveling→light curing---unloading for vacuum metallizing.

Electrostatic Dust Free Booth

Dimension: W1200mm*D1700mm*H1800mm

Flame treatment booth

Booth Dimension : W1200mm*D1700mm*H1800mm

UV base coat top coat spray booth

Water curtain booth :

Dimension :W3000mm*D2400mm*H2400mm

Spray gun systems:

Spray gun:WA-101 model(1.3 nozzle)

Rotation sstem

Solenoid valune spray gun control

Rotation type:  belt rotation , front and back rotation function,crocking resistance , frequency conversion adjustable.

Heating leveling oven

IR lamps for heating

oven hight :800㎜

Temperature adjustable : 0-100℃

Chainlink passway:600㎜

Electricity control system

Brand component.

Equipment Material:

stainless steel .

The equipment without including air supply ,exhaust pipes, deducting compressor etc.

Payment terms: 35% TT deposit, 65% TT balance before shipment.

Installation onsite support: 2 engineers for guiiding.
