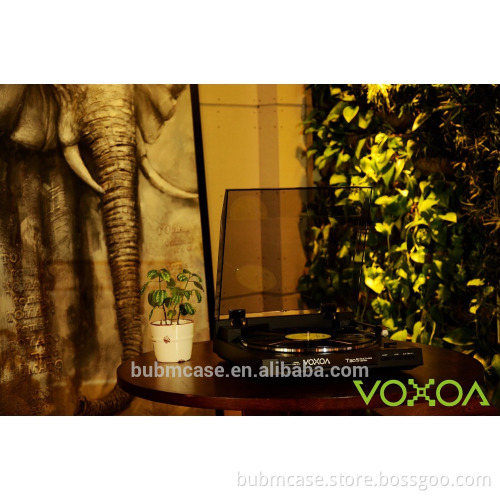

VOXOA T30 Full-Auto belt-drive turntable player, classic gramophone with USB recording function

   WARMLY WELCOME TO VOXOA HIFI WORD----VOXOA T30 FULL AUTO TURNTABLE   VOXOA T30 Belt Drive Turntable with USB REC   Fully automatic operation keeps LPs scratch free   2 speed Belt drive turntable - 33 1/3 and 45 RPM   USB Audio output: Direct connect with computers without special drivers   Built-in switchable stereo phono/line level pre-amplier.   Compatible with Audacity recording software   PC & Mac compatible   GENERAL SPECIFICATIONS Power supply : AC 230V~, 50Hz Power consumption : 3 Watts Operating voltage : DC 12V Dimensions : 350 (W) x 348 (D) x 95.4 (H) mm Weight : 2.75 Kg TURNTABLE SECTION 2-speed full-auto Motor : DC Motor Driving : Belt drive Platter : 296mm dia. Speed : 33 1/3 and 45 rpm Wow and fl utter : Less than 0.25%(WTD) at 3KHz (JIS) S/N Ratio : More than 50dB (DIN-B) Speed Tolerance : 3000Hz +3% , -2% USB Function USB rec. Function - A/D,D/A 16BIT 44.1KHz or 48KHz USB Selectable - Computer interface USB 1.1 Compliant WINDOWS XP or MAC OSX TONEARM SECTION Type : Dynamic balanced straight shaped arm w/soft damping control Effective arm length : 195mm Tonearm Lead - in point - 17cm To be operated within the distance 85+/-0.75mm from the record center - 30cm To be operated within the distance 147.3 +/- 0.75mm from the record center Tonearm return point To be operated between the distance of 54mm and 62mm from the record center Tracking Force adjustment range:3.5+/-1.0g CARTRIDGE SECTION (AT3600LAX) Type : Moving magnet cartridge Stylus : Diamond stylus Output Voltage A. Connect with Equalizer 90-216mV at 1KHz 5cm/sec (HP-4005) B. Connect without Equalizer 1.5-3.6mV at 1KHz 5cm/sec (HP-4005) Channel Separation : More than 15dB at 1KHz Channel Balance : Within 2.5 dB at 1KHz Load Impedence : 47K ohm , 100 PF     PART NAMES AND OPERATIONS
Part Name
1. Dust cover
2. Turntable platter
3. SPEED button ( )
4. START button
5. STOP button
6. Arm-elevation button ( )
7. SIZE select (30/17)
8. Cartridge
9. Tonearm
10. Phono/line switch
11. RCA output jack
12. USB socket (USB cable limit within 3M)
13. AC power cord
14. Platter mat
Automatic Play
1. Open the dust cover.
2. Place the record on the player.
NOTE Place the EP adaptor over the center spindle
when playing 17-cm (7”) EP records.
3. Set the SPEED button to 45 or 33.
4. Set the SIZE selector to 17 or 30.
5. Close the dust cover.
6. Set the input selector on the amplifi er.
7. Press the START button.
8. Adjust the volume control on the amplifi er.
NOTE 30-cm (12”) LP records and 17-cm (7”) EP
records can be played automatically.
NOTE The tonearm will automatically return to the rest
position when the record fi nishes.
To Stop During Play
Press the STOP button.
Precautions when playing records
• Do not rotate or stop the platter manually.
• Do not stop the tonearm manually when it is returning
automatically.
• Moving or jarring the unit without securing the
tonearm can damage the tonearm.
• Playing fl exible records or badly warped records can
damage the records and the stylus.  SPECIFICATIONS & ACCESSORIES SUPPLIED
GENERAL SPECIFICATIONS
Power supply : AC 230V~, 50Hz
Power consumption : 3 Watts
Operating voltage : DC 12V
Dimensions : 350 (W) x 348 (D) x  (H) mm
Weight : 2.75 Kg
TURNTABLE SECTION
2-speed full-auto
Motor : DC Motor
Driving : Belt drive
Platter : 296mm dia.
Speed : 33 1/3 and 45 rpm
Wow and fl utter : Less than 0.25%(WTD) at 3KHz (JIS)
S/N Ratio : More than 50dB (DIN-B)
Speed Tolerance : 3000Hz +3% , -2%
USB Function USB rec. Function
- A/D,D/A 16BIT 44.1KHz or 48KHz USB Selectable
- Computer interface USB 1.1 Compliant WINDOWS
XP or MAC OSX
ACCESSORIES SUPPLIED
- 1 Platter
- 1 45 rpm adaptor
- 1 Slipmat
- 1 USB cable
- 1 Dust Cover
- 1 User Manual
- 1 Software Disc
TONEARM SECTION
Type : Dynamic balanced straight shaped arm w/soft
damping control
Effective arm length : 195mm Tonearm lead-in point -17cm  To be operated within the distance 85+/- 0.75mm from the record center(counter from 5-25 by test record GES-3327 & HT-5) -30cm   To be operated within the distance147.3+/- 0.75mm from the record center(counter from 5-25 by test record GES-3327 & HT-5)   Tonearm return point To be operated between the distance of 54mm and 62mm from the record center(count from 6-15 by test record HP-4005,3-15 by EM-1001) Tracking Force adjustment range: 3.5+/-1.0g   CARTRIDGE SECTION(AT 3600LAX) Type:moving magnet cartridge Stylus:diamond stylus Output voltage A:  Connect with equalizer    90-216mv at 1khz                                                     5cm/sec(hp-4005) B:  Connect without equalizer    1.5-3.6mv at 1khz                                                     5cm/sec(hp-4005) Channel separation:more than 15db at 1khz Channerl balance:within 2.5db at 1khz Load impedence: 47k ohm,100pf
