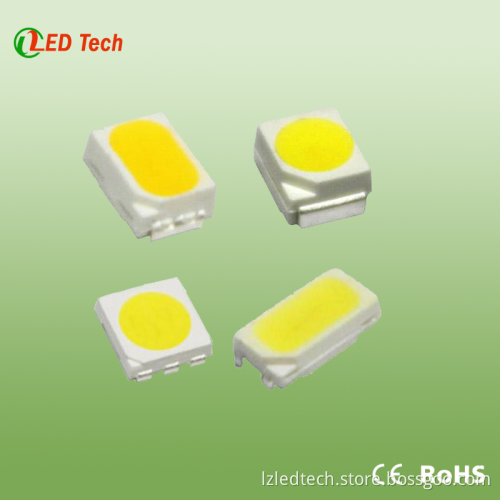

60mA 2835smd 0.2w LED components

Features

• package: white PLCC-2 package, colored diffused resin

• feature of the device: extremely wide viewing angle; long life time due to enhanced resin material

• color coordinates: x=0.3738,    y=0. 3846   acc. to CIE 1931 (white)

• typ. color temperature: 4300K

• viewing angle: Lambertian Emitter (120°)

• technology: InGaN

• grouping parameter: luminous intensity, color coordinates

• assembly methods: suitable for all SMT assembly methods

• soldering methods: IR reflow soldering and TTW soldering

• preconditioning: acc. to JEDEC Level 2

• taping: 8 mm tape with 3000/reel, ø180 mm

• ESD-withstand voltage: ESD sensitive device

Applications

• outdoor displays

• backlighting (LCD, switches, keys, displays, illuminated advertising)

• interior and exterior automotive lighting

• substitution of micro incandescent lamps, reading lamps

• emergency lighting

• signal and symbol luminaire

• marker lights (e.g. steps, exit ways, etc.)

Type

Color of Emission

Luminous Intensity(I_F= 60mA)

Min I_V (LM)

MAX I_V (LM)

LZ111XW16-04MSR1

White

22

26

Note:

In order to ensure availability, single brightness groups will not be orderable.

In order to ensure availability, single chromaticity coordinate groups will not be orderable.

Parameter

Symbol

Values

Unit

Operating temperature range

T_op

– 60 … + 100

°C

Storage temperature range

T_stg

– 60 … + 100

°C

Junction temperature

T_j

120

°C

Forward current

(TA=25°C)

I_F

60

mA

Surge current

t ≤ 10 μs, D = 0.005, TA=25°C

I_F

150

mA

Reverse voltage

(I_R = 10uA,TA=25°C)

V_R

5

V

Power consumption

(TA=25°C)

P_tot

190

mW

Thermal resistance

solder point

R_th-js

130

°C /W

Parameter

Symbol

Values

Unit

Chromaticity coordinate x

(I_F = 60mA)

x

0.3738

-

Chromaticity coordinate y

(I_F = 60mA)

y

0.3846

-

Viewing angle at 50 % Φ_V

(typ.)

2φ

120

deg.

CRI

(typ.)

RA

70

-

Forward voltage

(I_F = 60mA)

(min.)

V_F

2.8

V

(typ.)

V_F

3.2

V

(max.)

V_F

3.5

V

Reverse current

(V_R=5V)

(max.)

I_R

10

uA
