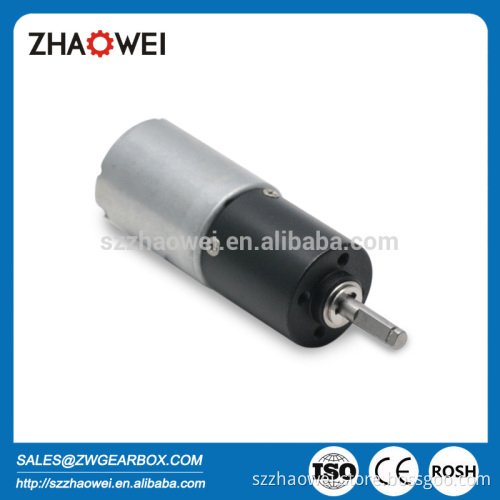

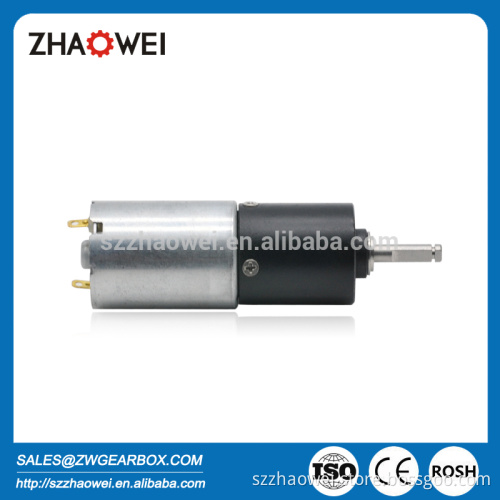

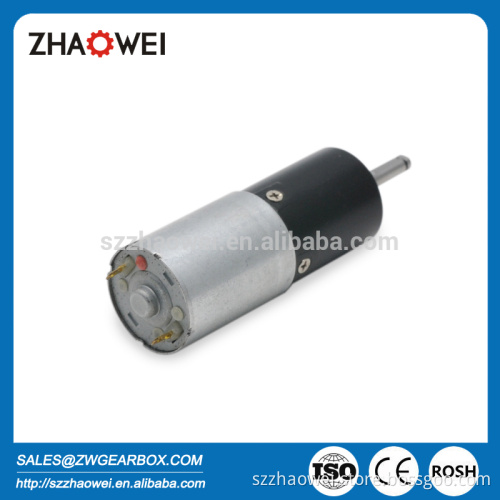

16mm Brushless High Torque Planetary Gear Motor For Intelligent Robot , Metal Shaft Material

16mm Brushless High Torque Planetary Gear Motor For Intelligent Robot , Metal Shaft Material Product Description

Item:	ZWMD016017	Specification	Φ16MM
Product Voltage:	9V	Current:	55mA
Production ratio:	4-1296	Output speed:	5-1625
Produt material:	metal	Stype:	Planetary gearbox moter



Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length
	Rated	At No Load		At Rated Load				Overall Length
	Voltage	Speed	Current	Speed	Current	Torque
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWMD016017-4	9.0	1838	95	1625	165	16	1.6	34.2	1500	10000	4	11.5
ZWMD016017-6	9.0	1225	95	1083	165	24	2.4		1000	10000	6
ZWMD016017-16	9.0	460	105	406	165	51	5.0	37.5	2500	10000	16	14.8
ZWMD016017-24	9.0	306	105	271	165	77	7.5		2500	10000	24
ZWMD016017-36	9.0	204	105	181	165	115	11.3		2000	10000	36
ZWMD016017-64	9.0	115	115	102	165	135	13.2	40.8	3500	10000	64	18.1
ZWMD016017-96	9.0	77	115	68	165	203	19.9		3500	10000	96
ZWMD016017-144	9.0	51	115	45	165	304	29.8		3500	10000	144
ZWMD016017-216	9.0	34	115	30	165	456	44.7		3000	10000	216
ZWMD016017-256	9.0	29	115	25	170	405	39.7	44.1	5000	10000	256	21.4
ZWMD016017-384	9.0	19	115	17	170	608	60		5000	10000	384
ZWMD016017-576	9.0	13	115	11	170	911	89		5000	10000	576
ZWMD016017-864	9.0	9	115	8	170	1367	134		5000	10000	864
ZWMD016017-1296	9.0	6	115	5	170	2050	201		3500	10000	1296

  above specifications just for reference and customizable according to requirements. Application:

Household application	electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipments	OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive products	conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and models	radio control model, automatic cruise control, ride-on toy and etc.
Medical equipments	blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrials	display, flow control valves and etc.
Electric power tools	electric drill, screwdriver and etc.
Precision instruments	monitor, optics instruments,automatic vending machine and etc.
cosmetic tool	eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.

Packaging & Shipping 1) Packing Details   packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing. Or according to client's requirement.   2) Shipping Details   samples will be shipped within 10 days; batch order leading time according to the actual situation. Our Services ODM & OEM Gearbox design and development Related technology support Company Information 1) Competitive Advantages 18-year experience in manufacturing motor gearbox Experienced Staff: average 7-year experience in R&D , ODM &OEM International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949 Competitive Price High Product Performance: Low noise, High efficiency, Long lifespan Prompt Delivery: 15 working days after payment Small Orders Accepted Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.   2) Main Products   Precise motor gear box reducer: diameter 4-40mm, Output speed: 5-2000rpm, Output torque: 10 gf-cm 50Kgf-cm; Customized worm and gear transmission machinery; Precise electromechanical motion module; Precise component and assembly of plastic and metal powder injection.   Our test advices: Our mold making machines: Our assembly line room: As the best-seller in china, we would like to be your reliable and longer supplier. Certifications We Have passed to hold ISO9001, ISO14001 and TS16949. and more... FAQ 1. Can you make the gearbox with custom specifications? YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience. 2.Do you provide the samples? YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need. 3.What is your MOQ? Our MOQ is 2000pcs. But at the beginning of our business, we accept small order. 4. Do you have the item in stock? I am sorry we donot have the item in stock, All products are made with orders. 5. Do you provide technology support? YES. Our company have strong R&D capability, we can provide technology support if you need. 6.How to ship to us? We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.  7.How to pay the money? We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc. 8. How can I know the product is suitable for me? Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use. 9. Can I come to your company to visit? YES, you can come to our company to visit at anytime, and welcome to visit our company. 10. How do contact us ?  Please send an inquiry .
