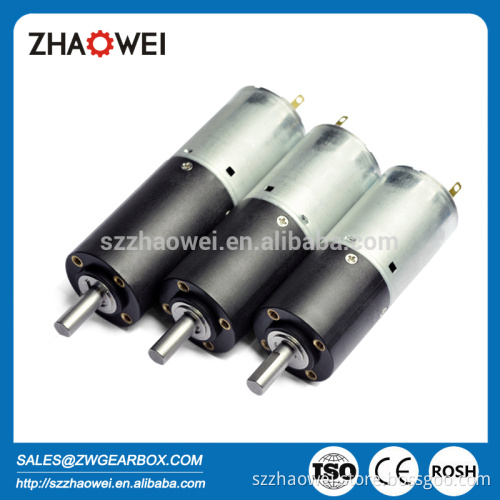

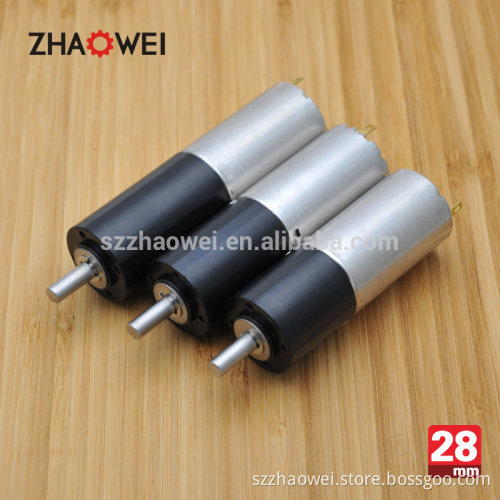

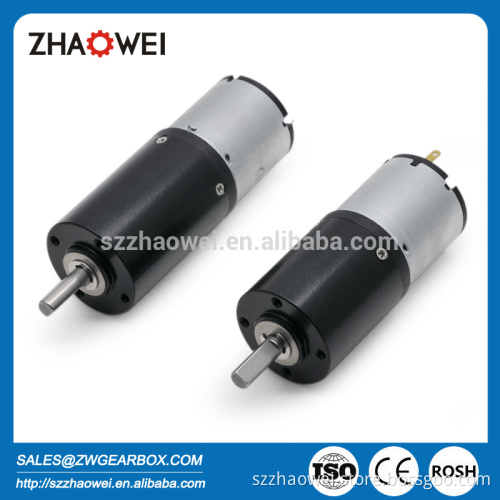

Low power long life 24V dc gear motor
  • Low power long life 24V dc gear motor
  • Low power long life 24V dc gear motor
  • Low power long life 24V dc gear motor
  • Low power long life 24V dc gear motor
  • Low power long life 24V dc gear motor
  • Low power long life 24V dc gear motor
Low power long life 24V dc gear motor
Low power long life 24V dc gear motor
Low power long life 24V dc gear motor
Low power long life 24V dc gear motor
Low power long life 24V dc gear motor
Low power long life 24V dc gear motor

Low power long life 24V dc gear motor

Delivery Time:
7 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description
Low power long life 24V dc gear motor Product Description 1)Specification Model:    ZWBPD032032-144
Rated Voltage: 24.0 V No Load Speed: 54 rpm No Load Current: 150 mA(MAX) Rated Load Speed: 46 rpm Rated Load Current: 350 mA(MAX) Rated Load Torque: 4,963 gf.cm Max Rated Torque of Gear Box: 15,000 gf.cm Max Instant Torque of Gear Box: 60,000 gf.cm Overall Length L: 75.1 mm Gear Box Length L1: 37.6 mm
 We also have the following items with different ratio:
Model Typical Application Parameters Max Rated Torque of Gear Box Max Instant Torque of Gear Box Gear Ratio Gear Box Length
Rated At No Load At Rated Load Overall Length
Voltage Speed Current Speed Current Torque
VDC rpm mA(MAX) rpm mA(MAX) gf.cm mN.m mm gf.cm gf.cm mm
ZWBPD028028-16 24.0 472 150 413 400 837 82.0 66.6 15000 60000 16 29.1
ZWBPD028028-24 24.0 312 150 276 400 1255 123.1 15000 60000 24
ZWBPD028028-36 24.0 211 150 181 400 1882 184.6 15000 60000 36
ZWBPD028028-64 24.0 119 150 104 350 2206 216.3 75.1 15000 60000 64 37.6
ZWBPD028028-96 24.0 79 150 69 350 3308 324.5 15000 60000 96
ZWBPD028028-144 24.0 54 150 46 350 4963 486.7 15000 60000 144
ZWBPD028028-216 24.0 35 150 31 350 7444 730.0 15000 60000 216
ZWBPD028028-256 24.0 30 150 26 350 6617 648.9 83.6 15000 60000 256 46.1
ZWBPD028028-384 24.0 19 150 17 350 9925 973.4 15000 60000 384
ZWBPD028028-576 24.0 13 150 12 350 14888 1460.1 15000 60000 576
ZWBPD028028-864 24.0 9 150 8 350 15000 1471.1 15000 60000 864
ZWBPD028028-1296 24.0 6 150 5 350 15000 1471.1 15000 60000 1296
above specifications just for reference and customizable according to requirements. Reliability Test: Noise test Water-proof test life test impact test drop test storage test salt spary test environmental related substance   Precise product Divices: Machine Name: CNC Manufacturing Accurancy: 0.005mm Type: RODERS Running speed: 43000rpm Machine Name: Wire Cutting Machine  Manufacturing Accurancy: 0.002mm Type: AgieCharmilles ACEertex 2F Wire Diameter: 0.03mm Agie CNC Agie Wire Cutting Machine Makino EDM SUMITOMO & SODICK Injection machines    Precise testing devices: ZEISS CONTURA G2-1 3D measuring instrument Accuracy: 0.003mm Made in  Germany Mituyoto microscope Accurancy: 0.001mm Made in Japan Germany Werth Tester Accuracy: 0.001mm Made in Germany OSAKS Seimitsu CLP-35 Accurancy: 0.0002mm Made in Japan Gear mesh testing instrument Accuracy: 0.002mm Made in Japan.   2)2D Drawing Product details show   Typical Application:
Audio and visual equipments     notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc.
Household application electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipments   OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive products  conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and models  radio control model, automatic cruise control, ride-on toy and etc.
Medical equipments  blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrials   display, flow control valves and etc.
Electric power tools  electric drill, screwdriver and etc.
Precision instruments  monitor, optics instruments,automatic vending machine and etc.
cosmetic tool eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.

Our Services ODM & OEM Gearbox design and development Related technology support Packaging & Shipping 1) Packing Details   packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing. Or according to client's requirement.   2) Shipping Details   samples will be shipped within 10 days; batch order leading time according to the actual situation. Company Information Shenzhen Zhaowei Machinery & Electronics Co., Ltd is a national grade high-tech enterprise which professionally specialized in R&D and manufacture high precise gear box reducers. We provide total solution to costomers including transmission gear box design, gear parts and molding design and manufacturer, parts mass production and assembly.
1) Competitive Advantages 18-year experience in manufacturing motor gearbox Experienced Staff: average 7-year experience in R&D , ODM &OEM International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949 Competitive Price High Product Performance: Low noise, High efficiency, Long lifespan Prompt Delivery: 15 working days after payment Small Orders Accepted Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc. We Have passed to hold ISO9001, ISO14001 and TS16949. and more...  2) Main Products   Precise motor gear box reducer: diameter 4-40mm, Output speed: 5-2000rpm, Output torque: 10 gf-cm 50Kgf-cm; Customized worm and gear transmission machinery; Precise electromechanical motion module; Precise component and assembly of plastic and metal powder injection. Production&Equipment FAQ 1. Can you make the gearbox with custom specifications? YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience. 2.Do you provide the samples? YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need. 3.What is your MOQ? Our MOQ is 2000pcs. But at the beginning of our business, we accept small order. 4. Do you have the item in stock? I am sorry we donot have the item in stock, All products are made with orders. 5. Do you provide technology support? YES. Our company have strong R&D capability, we can provide technology support if you need. 6.How to ship to us? We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.  7.How to pay the money? We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc. 8. How can I know the product is suitable for me? Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use. 9. Can I come to your company to visit? YES, you can come to our company to visit at anytime, and welcome to visit our company. 10. How do contact us ?  Please send an inquiry . Related Products

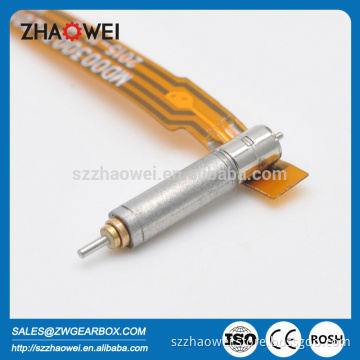

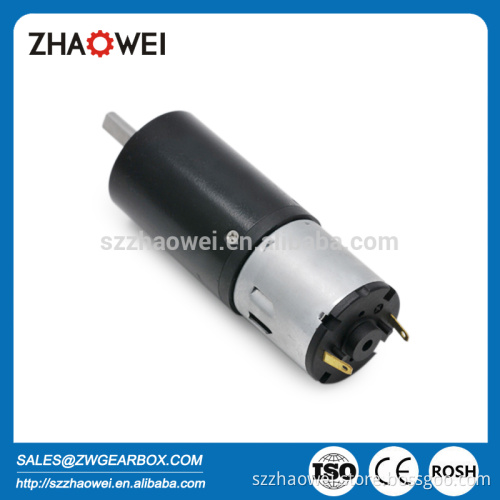

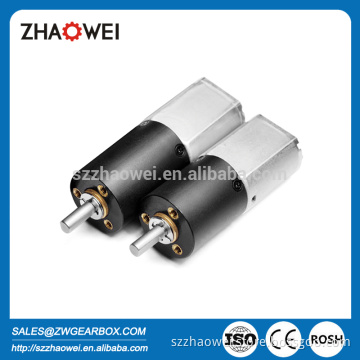

    small stepper gear motor   24V Reduction DC Gear Motor     6mm DC Planetary Gearmotor
