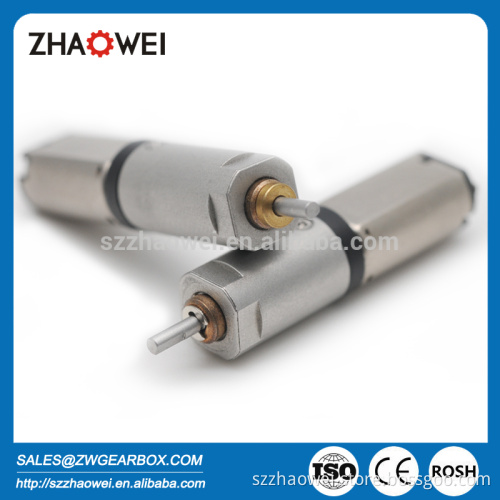

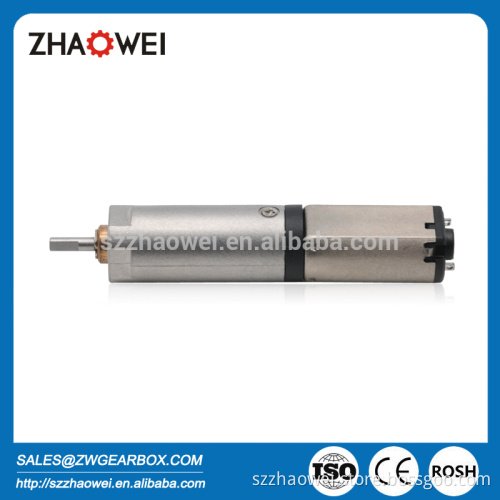

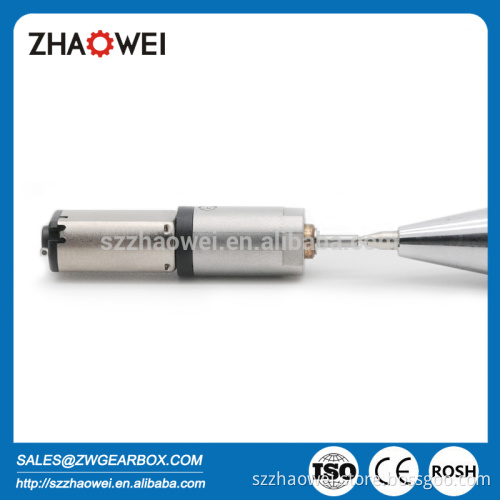

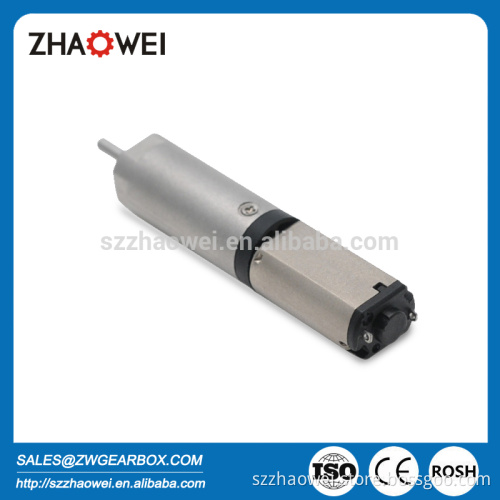

8mm small metal planetary gear reduction motor with gearbox

8mm small metal planetary gear reduction motor with gearbox  for Puff machine  and more Product Description   Rated voltage: 4.2V      No-load Current: 95mA Load current: 160mA    Stall torque: 600g.cm Ratio: 152 :1

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length
	Rated	At No Load		At Rated Load				Overall Length
	Voltage	Speed	Current	Speed	Current	Torque
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWMD008008-13	4.2	1228	95	934	155	13	1.2	28.8	400	800	13.0	14.3
ZWMD008008-19	4.2	829	95	630	155	19	1.8		400	800	19.2
ZWMD008008-28	4.2	559	95	425	155	27	2.7		400	800	28.4
ZWMD008008-47	4.2	335	95	259	160	40	3.9	31.5	600	1200	46.7	17.0
ZWMD008008-69	4.2	226	95	175	160	56	5.5		600	1200	69.1
ZWMD008008-102	4.2	153	95	118	160	87	8.6		600	1200	102.4
ZWMD008008-152	4.2	103	95	80	160	123	12.1		600	1200	151.7
ZWMD008008-168	4.2	91	100	72	160	124	12.2	34.2	750	1500	168.0	19.7
ZWMD008008-249	4.2	62	100	49	160	176	17.3		750	1500	248.8
ZWMD008008-369	4.2	42	100	33	160	273	26.8		750	1500	368.6
ZWMD008008-546	4.2	28	100	22	160	405	39.7		750	1500	546.1
ZWMD008008-809	4.2	19	100	15	160	599	58.8		750	1500	809.1

above specifications just for reference and customizable according to requirements.       Product details show   Typical Application: Puff machine , Eyebrow pencil, Camera, Health care product, Robot , and etc. Company Information  Shenzhen Zhaowei Machinery & Electronics Co., Ltd is professional manufacturer in the planetary gearbox field, we have strong R&D capability, the most advanced manufactur equipment, test devices, engineer team. We have more than 700people, more than 100 sets injection machines, more than 10 assembly lines. What is more, we are cooperating with many famous enterprises, like BOSCH, BROSE, VALEO, HUWEI, SONY, SOMFY etc.    Main products:   all series of precise planetary gearbox motor with diameter 4mm, 6mm, 8mm. 10mm. 12mm. 16mm. 22mm. 24mm. 28mm. 30mm. 40mm etc.   All products can be customized according to client’s requirement, if you have any need, just provide your drawings to us, we have professional engineers to evaluate the drawings and give feedback soon.   We provide the standard packaging or according to client’s requirement, also we provide the fastest delivery date.   all series of precise planetary gearbox motor with diameter 4mm, 6mm, 8mm, 10mm, 12mm, 16mm, 24mm, 28mm, 30mm, 40mm, etc, output speed from 5rpm to 1500rpm, ratio range from 3 to 2000, output torque from 1gf.cm to 50kgf.cm.   Reliability Test:   Noise test Water-proof test life test impact test drop test storage test salt spary test environmental related substance   Precise product Divices:   Machine Name: CNC Manufacturing Accurancy: 0.005mm Type: RODERS Running speed: 43000rpm   Machine Name: Wire Cutting Machine  Manufacturing Accurancy: 0.002mm Type: AgieCharmilles ACEertex 2F Wire Diameter: 0.03mm   Agie CNC Agie Wire Cutting Machine Makino EDM   SUMITOMO & SODICK Injection machines    Precise testing devices:   ZEISS CONTURA G2-1 3D measuring instrument Accuracy: 0.003mm Made in  Germany   Mituyoto microscope Accurancy: 0.001mm Made in Japan   Germany Werth Tester Accuracy: 0.001mm Made in Germany   OSAKS Seimitsu CLP-35 Accurancy: 0.0002mm Made in Japan   Gear mesh testing instrument Accuracy: 0.002mm Made in Japan. Our company:   Our test advices: Our mold making machines: Our assembly line room:   Certifications We Have passed to hold ISO9001, ISO14001 and TS16949. and more... Our Services ODM & OEM Gearbox design and development Related technology support FAQ 1. Can you make the gearbox with custom specifications? YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience. 2.Do you provide the samples? YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need. 3.What is your MOQ? Our MOQ is 2000pcs. But at the beginning of our business, we accept small order. 4. Do you have the item in stock? I am sorry we donot have the item in stock, All products are made with orders. 5. Do you provide technology support? YES. Our company have strong R&D capability, we can provide technology support if you need. 6.How to ship to us? We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.  7.How to pay the money? We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc. 8. How can I know the product is suitable for me? Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use. 9. Can I come to your company to visit? YES, you can come to our company to visit at anytime, and welcome to visit our company. 10. How do contact us ?  Please send an inquiry .
