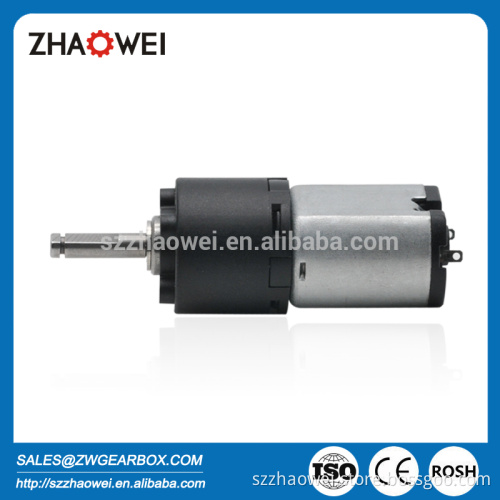

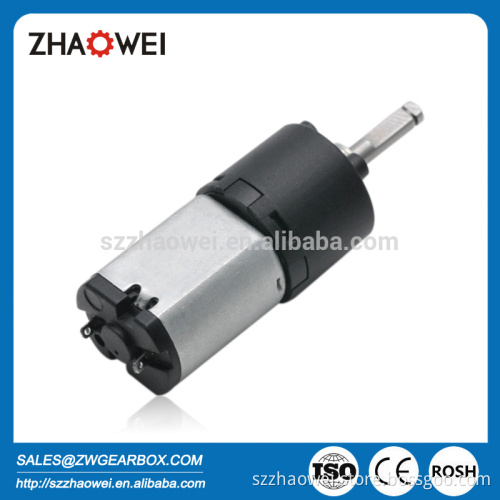

16mm 6-515rpm 6V dc micro plastic planetary gear motor with gearbox

16mm 6-515rpm 6V dc micro plastic planetary gear motor with gearbox Product Description Use Voltage range: 1.5-6V  Rated Voltage: 6V  Planetary gearbox motor

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length
	Rated	At No Load		At Rated Load				Overall Length
	Voltage	Speed	Current	Speed	Current	Torque
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWPD016016-16	6.0	643	110	515	200	41	4.0	33.8	1500	5000	16	15.1
ZWPD016016-24	6.0	429	110	343	200	61	6.0		1500	5000	24
ZWPD016016-36	6.0	286	110	229	200	92	9.0		1000	4000	36
ZWPD016016-64	6.0	161	120	129	200	108	10.6	38.1	1500	5000	64	19.4
ZWPD016016-96	6.0	107	120	86	200	162	15.9		1500	5000	96
ZWPD016016-144	6.0	71	120	57	200	243	23.8		1500	5000	144
ZWPD016016-216	6.0	48	120	38	200	365	35.7		1000	4000	216
ZWPD016016-256	6.0	39	120	31	200	324	31.8	42.4	1500	5000	256	23.7
ZWPD016016-384	6.0	26	120	21	200	486	48		1500	5000	384
ZWPD016016-576	6.0	17	120	14	200	729	71		1500	5000	576
ZWPD016016-864	6.0	12	120	9	200	1094	107		1500	5000	864
ZWPD016016-1296	6.0	8	120	6	200	1000	98		1000	4000	1296

above specifications just for reference and customizable according to requirements.       Product details show   Application:

Household application	electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipments	OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive products	conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and models	radio control model, automatic cruise control, ride-on toy and etc.
Medical equipments	blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrials	display, flow control valves and etc.
Electric power tools	electric drill, screwdriver and etc.
Precision instruments	monitor, optics instruments,automatic vending machine and etc.
cosmetic tool	eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.

Our Services ODM & OEM Gearbox design and development Related technology support Packaging & Shipping 1) Packing Details   packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing. Or according to client's requirement.   2) Shipping Details   samples will be shipped within 10 days; batch order leading time according to the actual situation. Company Information 1) Competitive Advantages 18-year experience in manufacturing motor gearbox Experienced Staff: average 7-year experience in R&D , ODM &OEM International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949 Competitive Price High Product Performance: Low noise, High efficiency, Long lifespan Prompt Delivery: 15 working days after payment Small Orders Accepted Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc. We Have passed to hold ISO9001, ISO14001 and TS16949. and more...   2) Main Products   Precise motor gear box reducer: diameter 4-40mm, Output speed: 5-2000rpm, Output torque: 10 gf-cm 50Kgf-cm; Customized worm and gear transmission machinery; Precise electromechanical motion module; Precise component and assembly of plastic and metal powder injection. Production&Equipment FAQ 1. Can you make the gearbox with custom specifications? YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience. 2.Do you provide the samples? YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need. 3.What is your MOQ? Our MOQ is 2000pcs. But at the beginning of our business, we accept small order. 4. Do you have the item in stock? I am sorry we donot have the item in stock, All products are made with orders. 5. Do you provide technology support? YES. Our company have strong R&D capability, we can provide technology support if you need. 6.How to ship to us? We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.  7.How to pay the money? We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc. 8. How can I know the product is suitable for me? Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use. 9. Can I come to your company to visit? YES, you can come to our company to visit at anytime, and welcome to visit our company. 10. How do contact us ?  Please send an inquiry . Related Products
