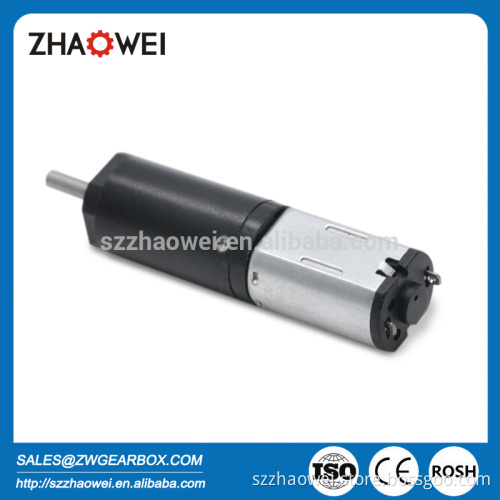

Customized 10mm High Torque Dc Geared Motor With Plastic Planetary Gearbox

Customized 10mm High Torque Dc Geared Motor With Plastic Planetary Gearbox Product Description

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length
	Rated	At No Load		At Rated Load				Overall Length
	Voltage	Speed	Current	Speed	Current	Torque
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWBPD008008-3	3.0	4318	90	3625	235	8	0.8	24.7	300	900	4.0	9.7
ZWBPD008008-5	3.0	2879	90	2417	235	12	1.2		300	900	6.0
ZWBPD008008-13	3.0	1329	100	1115	235	21	2.0	27.8	400	1200	13.0	12.8
ZWBPD008008-19	3.0	909	100	763	235	30	3.0		400	1200	19.0
ZWBPD008008-28	3.0	617	100	518	235	45	4.4		300	900	28.0
ZWBPD008008-46	3.0	375	110	315	235	49	4.8	30.9	700	2100	46.0	15.9
ZWBPD008008-69	3.0	250	110	210	235	73	7.1		700	2100	69.0
ZWBPD008008-102	3.0	169	110	142	235	108	10.6		700	2100	102.0
ZWBPD008008-151	3.0	114	110	96	235	159	15.6		500	1500	151.0
ZWBPD008008-168	3.0	98	110	86	240	133	13.0	34	1000	3000	168.0	19
ZWBPD008008-249	3.0	66	110	58	240	197	19.0		1000	3000	249.0
ZWBPD008008-368	3.0	45	110	39	240	291	29.0		1000	3000	368.0
ZWBPD008008-546	3.0	30	110	27	240	432	42.0		1000	3000	546.0
ZWBPD008008-809	3.0	20	110	18	240	640	63.0		700	2100	809.0

  above specifications just for reference and customizable according to requirements.   Product details show   Typical Application:         Eyebrow pencil, Camera, Health care product, Robot bicycle lock and etc.     Reliability Test:   Noise test Water-proof test life test impact test drop test storage test salt spary test environmental related substance Our Services ODM & OEM Gearbox design and development Related technology support Packaging & Shipping 1) Packing Details   packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing. Or according to client's requirement.   2) Shipping Details   samples will be shipped within 10 days; batch order leading time according to the actual situation.   Company Information Shenzhen Zhaowei Machinery & Electronics Co., Ltd is a national grade high-tech enterprise which professionally specialized in R&D and manufacture high precise gear box reducers. We provide total solution to costomers including transmission gear box design, gear parts and molding design and manufacturer, parts mass production and assembly.

Precise product Divices: Machine Name: CNC Manufacturing Accurancy: 0.005mm Type: RODERS Running speed: 43000rpm   Machine Name: Wire Cutting Machine  Manufacturing Accurancy: 0.002mm Type: AgieCharmilles ACEertex 2F Wire Diameter: 0.03mm   Agie CNC Agie Wire Cutting Machine Makino EDM   SUMITOMO & SODICK Injection machines    Precise testing devices:   ZEISS CONTURA G2-1 3D measuring instrument Accuracy: 0.003mm Made in  Germany   Mituyoto microscope Accurancy: 0.001mm Made in Japan   Germany Werth Tester Accuracy: 0.001mm Made in Germany   OSAKS Seimitsu CLP-35 Accurancy: 0.0002mm Made in Japan   Gear mesh testing instrument Accuracy: 0.002mm Made in Japan. Our company:   Our test advices: Our mold making machines: Our assembly line room:   Certifications We Have passed to hold ISO9001, ISO14001 and TS16949. and more... FAQ 1. Can you make the gearbox with custom specifications? YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience. 2.Do you provide the samples? YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need. 3.What is your MOQ? Our MOQ is 2000pcs. But at the beginning of our business, we accept small order. 4. Do you have the item in stock? I am sorry we donot have the item in stock, All products are made with orders. 5. Do you provide technology support? YES. Our company have strong R&D capability, we can provide technology support if you need. 6.How to ship to us? We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.  7.How to pay the money? We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc. 8. How can I know the product is suitable for me? Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use. 9. Can I come to your company to visit? YES, you can come to our company to visit at anytime, and welcome to visit our company. 10. How do contact us ?  Please send an inquiry .
