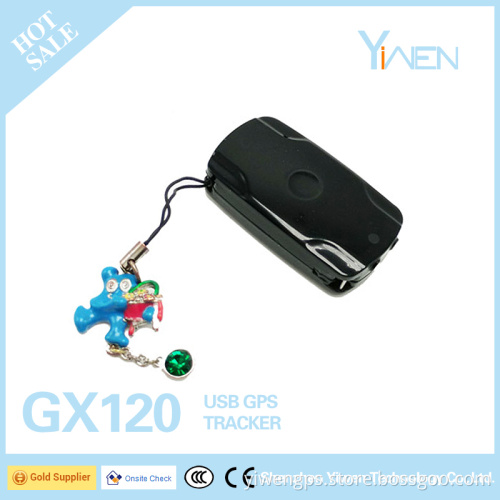

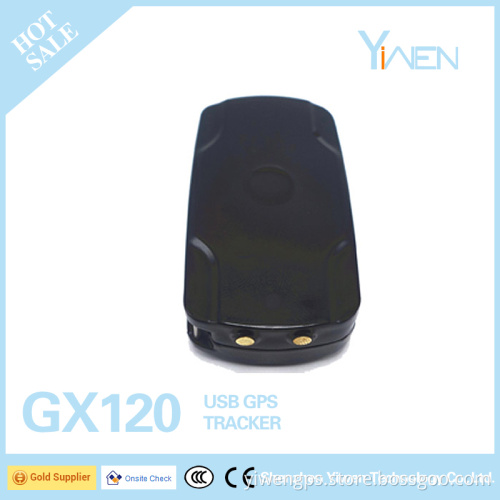

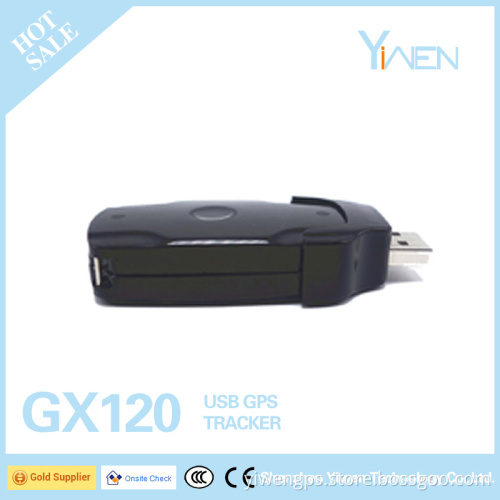

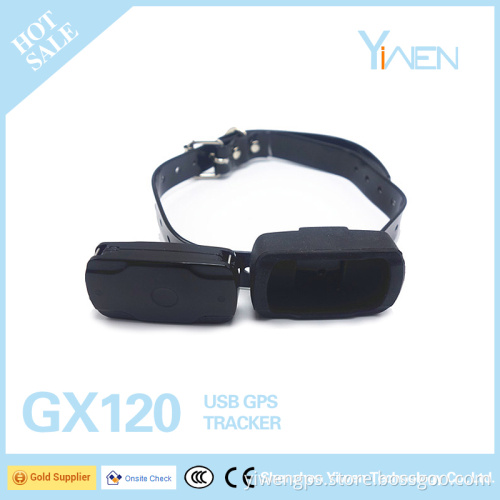

Yiwen GPS Mini Chip Tracker GX120 For Persons And Pets, Electric Bike

Product Description           GPS tracker GX120 is one of the independently researched and developed GPS tracking products from Shenzhen Yiwen Technology Co., Ltd., which adopted imported high gain GPS module and unique dual mode design, global commonly used GSM receiving antenna, with the lowest power consumption design, so it’s a most suitable and easily used GPS tracker for multiple purposes such as person, pet, vehicle, item and so on.   Specifications

Model	GX120
Brand	Yiwen Technology
GSM frequency	Global commonly used 4 frequencies
GPS accuracy	5 meters
GPS sensitivity	-159 dBm
First start duration	Cold start: 45-120 seconds Warm start: 35 seconds Hot start: 1 second
Car recharging voltage	12-24 V input 5 V output
Desktop charger recharging voltage	110-220 V input 5 V output
Network bands	850/900/1800/1900 Mhz
Network	GSM/GPRS(class 12)
Weight	28 grams
Working humidity	5-95% non-condensing
Working temperature	-20 to +55 ℃
Storage temperature	-40 to +60 ℃
Authentications	Chinese 3C, European CE available
Phone APP operating system	Android 2.3 and higher, iOS 5.0 and higher
Size	Width: 5 cm Length: 3 cm Height: 1.5 cm Packing box: 13*9.5*3 cm

  Product Composition

Button	Power button
GPS chip	UBLOX-7
GSM/GPRS module	MTK6261
Battery	3.7 V 500 mAh(rechargeable)
SIM card slot	1 unit

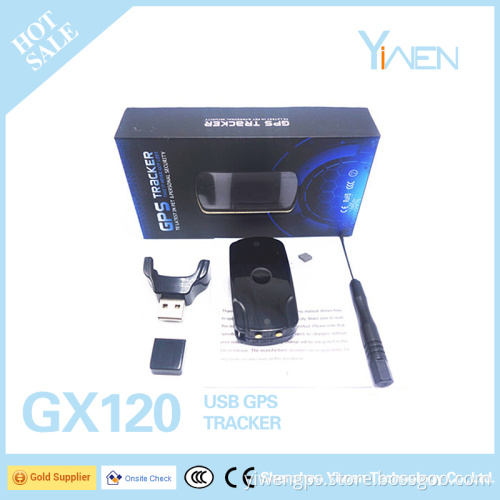

Accessory	4*screw 1*screw driver 1*user manual 1*Housing cover 1*USB charging port cover

  Functions

Positioning	GPS+LBS double mode positioning
Recharging	USB port recharging
Geofence	A range can be set and alarm message will be sent to software once the tracker getting in or out it.
History Replay	Historical moving route of the latest 6 months can be replayed.
Timer Switch	Automatic power on and off time can be set by phone APP.
Listen-in	Listen-in mode can be activated by phone APP.
Smart LED Light	LED lighting mode can be set by phone APP.

  Highlights -It’s ultra-long time standby. -It’s waterproof. -It’s with dual mode design so positioning accuracy is high. -It’s easy to carry and place because of its mini type. -It supports base station auxiliary positioning so the accuracy is high. -It supports check situation, position and residual battery power by Android and iOS phone APP, computer webpage platform.
-It supports replay historical moving route on the web and APP. -It supports SOS alarm message sending by pressing the red button for over 3 minutes. -It supports the function of setting geofence which is for monitoring and alarming. -It can be hung around necks of person and pet.   Usage Range -People: The kid, elderly, disabled, psychotic, babies(baby carriage) etc. -Pets and domestic animals etc. -Vehicles: Cars, trucks, motorbikes, electric motorcycles etc. -Assets: Bags, keys, safe cases, luggages etc. -Circumstances: Checking the moving route of family car, tracking the car which was lent or stolen, monitoring the government cars which was privately used etc. -Industries: Fleet management, car rental, transportation etc.   Our GPS platform           Shenzhen Yiwen Technology Co., Ltd. is also a software company of developing GPS tracking software, which located in Shenzhen City in Guangdong Province in China.           Our tracker and software are selling to the whole world. We have entered the industrial area of developing GPS software and device for more than 4 years. We can provide the services of developing customized computer webpage platform and phone APP.           Nowadays, we have more than 300 clients who bought our product in the whole world especially in China. Obviously, the stability and accessibility of our product is recognized by the whole industry.          We promises that we'll provide our best products and services to every customer to earn their trusts!          Giving trust to us is your best investment     Contact Information           If you are interesting in our product and service, please contact us right now!:
