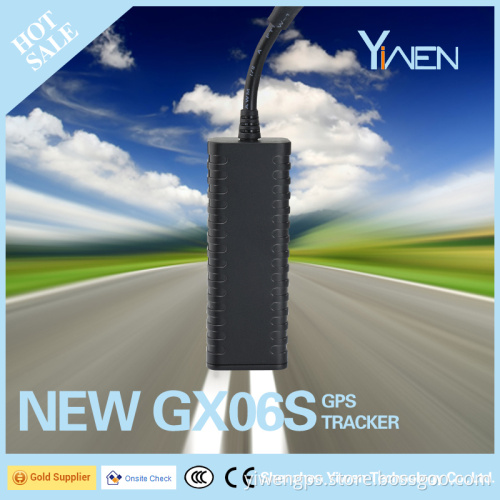

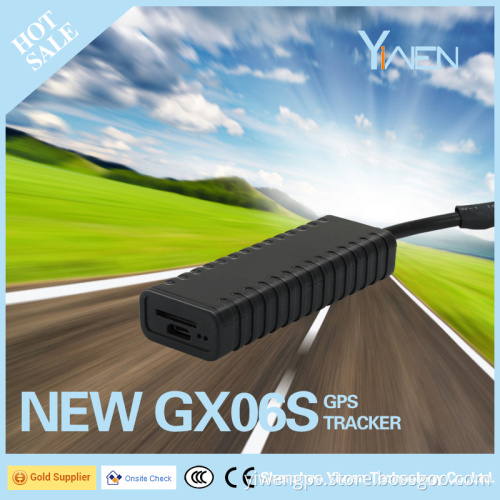

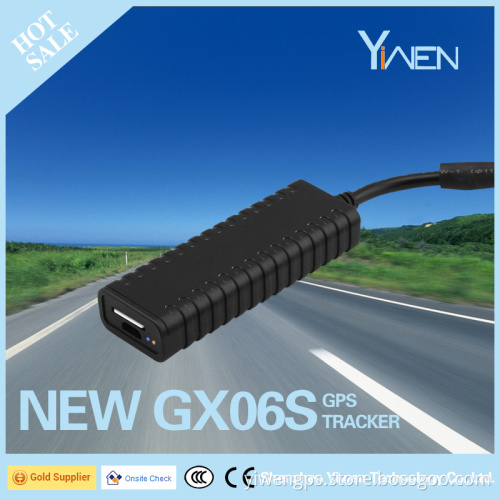

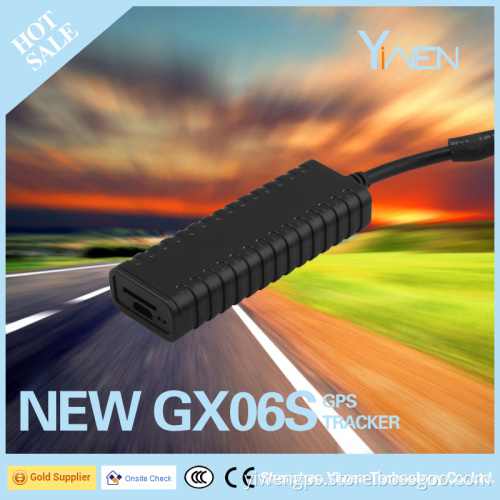

Yiwen Vehicle GPS Tracker New GX06S

  Product Description           Vehicle GPS tracker New GX06S is one of the independently researched and developed GPS products from Shenzhen Yiwen Technology Co., Ltd. which adopted imported high gain GPS module, global commonly used GSM receiving antenna, with the low power consumption design, so it’s a most suitable easily hidden and installed GPS tracker in vehicle because of small type and light weight.           It has the functions such as low power consumption and long-time stand-by, excellent signal receiving, GSM blind spot storage(save the positioning data when there is no signal until signal appears and data uploaded), gas and electricity remote control cutting(also the wheels locking).   Specifications

Model	New GX06S
Brand	Yiwen Technology
GSM frequency	850/900/1800/1900 Mhz
GPS accuracy	10 meters, 2D RMS
GPS sensitivity	-162 Db
GPS frequency	L1, 1575.42 MHz
Speed accuracy	0.1 m/s
Time accuracy	Sync with satellite time within 1 microsecond.
Coordinate system	WGS-84
Channel	56 channels(all-around tracking)
Update time	0.1 second on average
Hot start	1 second on average
Warm start	30 seconds on average
Cold start	32 seconds on average
Max altitude	18,000 meters(60,000 feet)
Max speed	515 meters/second(1,000 knots)
Instant movement	20 meters/second
Max gravitational acceleration	<4 g
Working temperature	-25~+55 ℃
Working humidity	5-95% non-condensing
Recharging voltage	DC 9-100 V
Battery stand-by time	100 days
C/A code	1.023 MHz chip rate
Default data	WGS-84
Phone APP operating system	Android 2.3/iOS 5.0 and newer

  Product Composition

Button	SOS
GSM module	MT6261D
GPS module	UBLOX7020
SIM card slot	1 unit
LED light	1*GPS signal light 1*GSM signal light 1*recharging situation light
Accessory	1*user  manual 1*charging cable 1*double-face sticker 1*SIM card slot cover

  Functions

ACC detection	ACC situation can be displayed by software.
Move History Replay	Move history can be replayed by software.
Remote engine cutoff	Engine can be stopped by software.
Geofence	A range can be set on software's map for receiving alarms of GX06S getting in/out.
Shift alarm	Alarm will be sent to software if GX06S' location shifted after car ACC turned off.
Shock alarm	Alarm will be sent to software if GX06S sensed vibrations after car ACC turned off.
Disconnection alarm	Alarm will be sent to software if GX06S is out of connection with vehicle battery.
More	More

  Highlights -It’s water/dustproof. -It can be used for anti-theft. -It can be tracked by software. -It has stable capabilities and signals. -It's upgrade version based on old GX06S. -It can remotely stop and restart car engine. -It’s dual positioning mode so accuracy is high. -Its integration level is very high so it’s easy to install. -It’s cheaper than same type product for at least 20%. -It’s easy to hide in car because it’s small and lightweight. -It’s with 12-100 V wide voltage range suits car, truck, motorbike and electric motorcycle etc. (Normal range is 9-36V just for car.) -More   Usage Range Vehicle: Car, electrocar, truck, motorbike, electric motorcycle, reffited vehicle etc. Circumstance: Checking move route of family car, tracking lent or stolen car, monitoring government vehicles etc.   Our GPS platform             Shenzhen Yiwen Technology Co., Ltd. is also a software company of developing GPS tracking platform, located in Shenzhen City, Guangdong Province, China.             Our tracker and software are selling to the whole world. GPS tracking industry has been entered by us for many years. Computer webpage GPS tracking platform and phone GPS tracking APP can be customed.             Nowadays, there are plenty of clients bought our software in the whole world. Obviously, stability and accessibility of our software are recognized by the whole industry.             We promises that that the best products and services will be provided to every customer to earn their trusts!             Giving trust to us is your best investment!      Contact Information           If you are interesting with our product and service, please contact us right now!:
