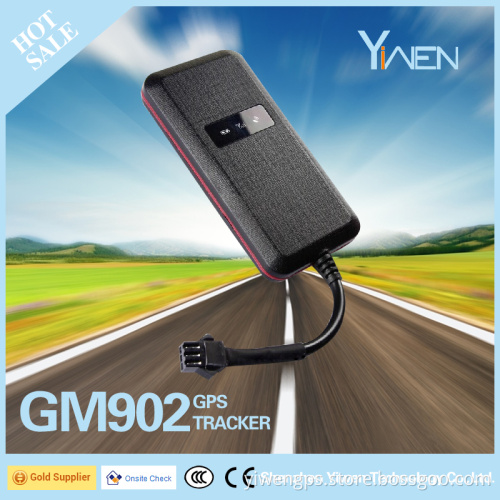

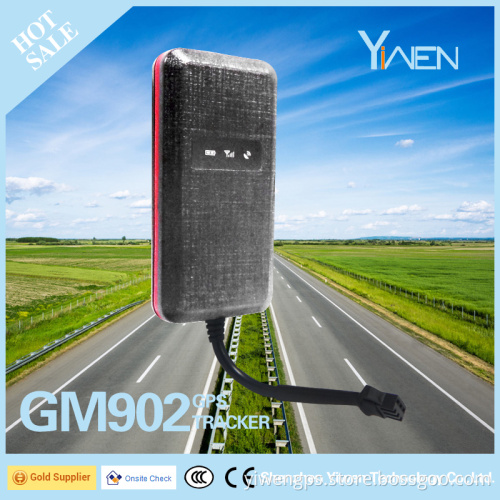

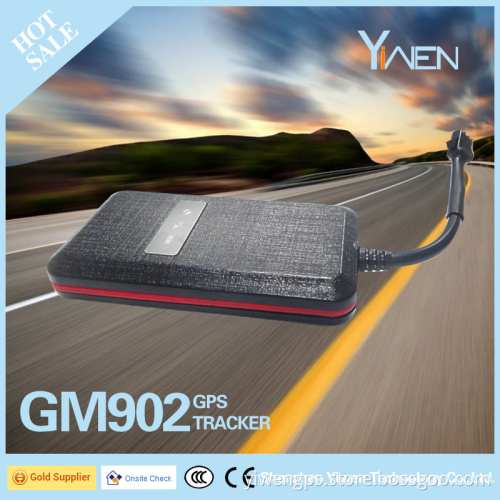

Yiwen Car GPS Tracker GM902 with Google Map, Remote Control and Immobilizer

    Product Description           Vehicle GPS tracker GM902 is one of the independently researched and developed GPS products from Shenzhen Yiwen Technology Co., Ltd. which adopted imported high gain GPS module and unique dual mode design, global commonly used GSM receiving antenna, with the lowest power consumption design, so it’s a most suitable and easily hidden and installed GPS tracker in car because of small type and light weight.   Specifications

Model	GM902
Brand	Yiwen Technology
GSM frequency	Global commonly used 4 frequencies
GSM module	Quad band(GSM 850/900/1800/1900 Mhz)
GPS accuracy	10 meters, 2D RMS
Hot start	1 second(all data is valid, start within 2 hours since the last positioning)
Warm start	32 seconds(initialization data loaded, start after 2 hours since the last positioning)
Cold start	38 seconds (first start, ephemeris cleared and then start, move out about 1,000 km and then start)
Network	GSM/GPRS(class 12, TCP/IP)
Radiation	Very lower than the national standard
Weight	50 grams
Working voltage range	9 - 36 V DC
Working temperature	-20 to +70 ℃
Working humidity	20 - 80% RH
Working current	22 mA(12 V DC), 12 mA(24 VDC)
Operating system for phone APP	Android 2.3 & higher, IOS 5.0 & higher
Size	Length: 87 mm Width: 43 mm Height: 14 mm Packing size: 13.3 × 9.8 × 5.5 cm/piece

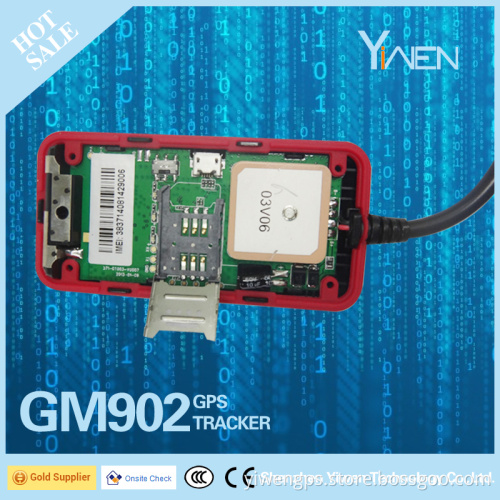

Product Composition

GPS indicator light (Green)	When GPS isn't working, this light will be twinkling. When GPS works normall, the light will be always lighting.
GSM  indicator light (Blue)	When GSM receives signals normally, this light will be always lighting. When there are no GSM signals, the light will be twinkling.
Power indicator light (Red)	When the tracker connects the power of DC 9 - 24V, this light will be always lighting until 5 minutes passed. Once the trackers receives calling, it lights again, and will be turned off after 5 minutes.
Power connector	To connect the car battery.
GPS antenna	GPS accuracy: 10 meters, 2D RMS
SIM card slot	1 unit
Accessories	1*charging cable 4*dust plug 4*screw 1*instruction handbook

  Functions

Gas & electricity remotely cutting/recovering	By messaging or Web platform/IOS & Android APP operating.
Low voltage alarming	A warning message will be sent to Web platform & phone APP if the voltage is too low.
Vibration alarm	A warning message will be sent to Web platform & phone APP if the vehicle is shaking.
Geofence	A Geofence can be set and the warning messages will be sent once the tracker was out of the geofence.
Historical route replaying	The historical moving route of the latest 3 months of the watch can be replayed.
Base station auxiliary positioning	Supported
Residual energy display	The residual energy of the tracker can be displayed on the Web tracking platform and phone APP.
Low power consumption mode	It’ll stay automatically if it moves less than 200 meters within 10 minutes
GSM blind port storage	Positioning data will be saved when there is no GPRS signal until the signal is found and the data uploded.
ACC feedbacking	The situation of ACC can be checked on the Web platform & phone APP.
Out of electricity supplying alarm	A warning message will be sent to the Web platform & phone APP once the tracker is out of electricity supplying.
The interval of time of uploading positioning data adjustment	Supported

  Highlights -It’s cheaper than same type product for at least 20%. -It’s easy to hide in car because it’s small & lightweight so It can be used for anti-theft. -It can remotely cut(or recover) the gas & electricity and can be rested(or started) remotely by SMS/android APP/IOS APP/web page. -It binds phone number, which means, text message will be sent to another phone number when its voltage is too low and it was out of the geofencing. -It supports inspection of its position and residual energy by Android /IOS APP. -It supports base station auxiliary positioning so the accuracy is high. -It has internal shock sensor and movement recognition system so the warning message will be sent when the vehicle is shaking or some situations happened. -It can feedback the realtime position information by sending messages. -It has global commonly used quad band. -It has a function of GSM blind port storage which can save the positioning data when there is no GPRS signal until the signal is found and the data uploded. -It’ll feedback if the ACC is on or off and the user can check it on the Web tracking platform and phone APP. -It’ll send a warning message once it out of charging. -It’ll stay automatically if it moves less than 200 meters within 10 minutes so it’s very power-saving. -Its integration level is very high so it’s easy to install. -Its time interval of automatically uploading positioning data can be set. -It’s dual-mode so the accuracy is high.   Usage Range Vehicles: -Car -Electrocar -Truck -Motorbike -Electric motorcycle -Reffited vehicle -Etc.
  Circumstances: -Checking the moving route of family car -Tracking the car which was lent or stolen -Monitoring the government cars which was privately used -Etc.   Our GPS platform            Shenzhen Yiwen Technology Co., Ltd. is also a software company of developing GPS tracking platform, which located in Shenzhen City in Guangdong Province in China.            Our trackers & softwares are selling to the whole world. We have entered the industrial area of developing GPS software & device for more than 4 years. We can provide the services of developing customized GPS tracking platform(Webpage and smart phone APP).            Nowadays, we have more than 100 customers who bought our software in the whole world especially in China. Obviously, the stability & accessibility of our software is recognized by the whole industry.            We promises that we'll provide our best products and services to every customer to earn their trusts!            Giving trust to us is your best investment!     Contact Information           If you are interesting with our products & services, please contact us right now!:
