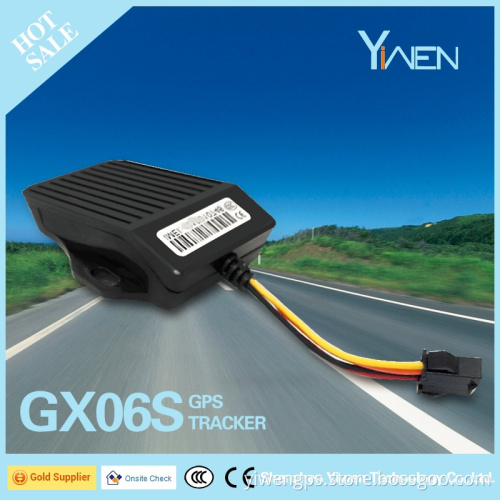

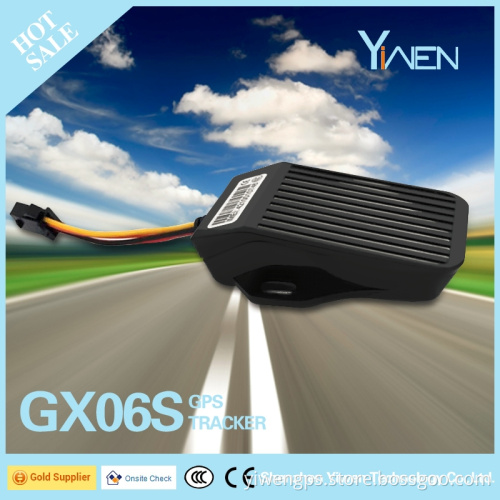

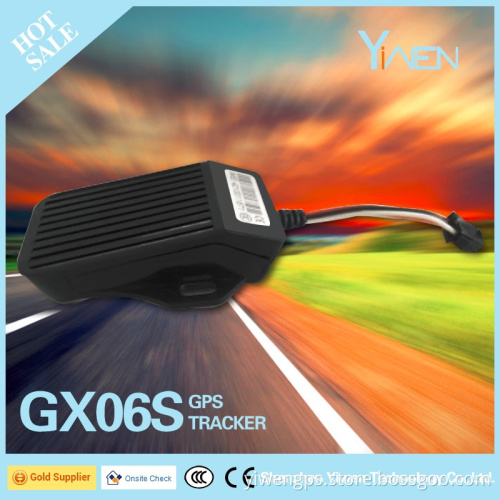

Yiwen 9-80V Wide Voltage GX06s GPS Tracker With Alarm & Remote Control Power Cutting

Product Description           GPS tracker GX06s is one of the independently researched and developed GPS products from Shenzhen Yiwen Technology Co., Ltd. which adopted imported high gain GPS module and unique dual mode design, global commonly used GSM receiving antenna, with the low power consumption design, so it’s a most suitable and easily hided and installed GPS tracker in car because of small type and light weight.           It has the functions such as low power consumption and long-time stand-by, excellent signal receiving, GSM blind spot storage(save the positioning data when there is no signal until signal appears and data uploaded), gas & electricity remote control cutting(also the wheels locking).           It is designed for double input(ADC & serial port) and it can connect OBD or other sensors such as fuel sensor, display screen and so on so that it can realize the expanding functions e.g. data sending etc. through connect the other devices. It can be matched with 2.4G remote control to set up or remove defenses. Easy and safe to use is the main feature of it!   Specifications

Model	GX06S
Brand	Yiwen Technology
GSM frequency	Global commonly used 4 frequencies
GSM module	Quad band(GSM 850/900/1800/1900 Mhz)
GPS accuracy	10 meters, 2D RMS
GPS sensitivity	-162 Db
GPS frequency	L1, 1575.42 MHz
Speed accuracy	0.1 m/s
Time accuracy	Sync with satellite time within 1 microsecond.
Coordinate system	WGS-84
Channel	48 channels(all-around tracking)
Upload period	0.1 second on average
Hot start	1 second on average
Warm start	38 seconds on average
Cold start	45 seconds on average
Network	GSM/GPRS(class 12)
Max altitude	18,000 meters (60,000 feet)
Max speed	515 meters/second (1000 knots)
Instant movement	20 meters/second
Radiation	Very lower than the national standard
Power consumption	40 mAh, 12V
Weight	85 grams (battery included)
Working duration	Internal stand-by battery for 4 hours
Working voltage range	12 - 80 V
Working temperature	-25 to 55 ℃
Working humidity	5 - 95 % non-condensing
Working current	< 55 mA
Chip receiving sensitivity	Tracking: -159 dBm Capturing: -143 dBm
Input design	Double inputs(compatible ADC & serial port)
Operating system for phone APP	Android 2.3 & higher, IOS 5.0 & higher
Remote control(Optional)	Internal 2.4G remote control
C/A code	1.023 MHz chip rate
Size	Length: 90 cm Width: 45 cm Height: 10 cm Packing size: 13.3 × 9.8 × 5.5 cm/piece

  Product Composition

GPS antenna	High sensitive ceramic antenna
Battery	Chargeable & replaceable, 400 mAh for 4 hours stand-by
SIM card slot	1 unit
Accessories	1*power wire(bundle) 1*instruction handbook

  Functions

Gas & electricity remotely cutting/recovering	By messaging.
Low voltage alarming	A warning message will be sent to Web platform & phone APP if the voltage is too low.
Vibration alarm	A warning message will be sent to Web platform & phone APP if the vehicle is shaking.
Geofence	A Geofence can be set and the warning messages will be sent once the tracker was out of the geofence.
Historical route replaying	The historical moving route of the latest 3 months of the watch can be replayed.
Base station auxiliary positioning	Supported
Residual energy display	The residual energy of the tracker can be displayed on the Web tracking platform and phone APP.
Low power consumption mode	GPS module will be shut down automatically when the vehicle is stayed for a long time.
GSM blind port storage	Positioning data will be saved when there is no GPRS signal until the signal is found and the data uploded.
ACC feedback	The situation of ACC can be checked on the Web platform & phone APP.
Out of electricity supplying alarm	A warning message will be sent to the Web platform & phone APP once the tracker is out of electricity supplying.
The interval of time of uploading positioning data adjustment	Supported

  Highlights -It’s cheaper than same type product for at least 20%. -It’s with 9-80V wild voltage which suits car, truck, motorbike and electric motorcycle etc. (Normal GPS tracker is with 9-36V which just for car.) -It’s easy to hide in car because it’s small & lightweight. -It’s dual mode so the accuracy is high. -It’s water-poof & dust-proof & fire-proof. -It can be used for anti-theft. -It can remotely cut(or recover) the gas & electricity and can be rested(or started) remotely by SMS/android APP/IOS APP/web page. -It binds phone number, which means, text message will be sent to another phone number when its voltage is too low. -It supports inspection of its position and residual energy by Android /IOS APP. -It supports base station auxiliary positioning so the accuracy is high. -It has internal battery with 400 mAh(for 4 hours stand-by). -It adopts the design of double inputs which means it can be used with other devices such as OBD & gas sensor. -It has internal shock sensor and movement recognition system so the warning message will be sent when the vehicle is shaking or some situations happened. -It has stable capabilities & signals. -It has a low power consumption design for a function of shut down the GPS module (power consumption < 1 mAh)
when the car was still for a long period. (Once the vehicle works again, it works again.) -It can be tracked by SMS/GPRS(TCP/UDP). -It has global commonly used quad band. -It has a function of GSM blind port storage which can save the positioning data when there is no GPRS signal until the signal is found and the data uploded. -It’ll feedback if the ACC is on or off and the user can check it on the Web tracking platform and phone APP. -It’ll send a warning message once it out of charging. -Its easy connecting & using internal 2.4G remote control is optional for buyer. -Its integration level is very high so it’s easy to install. -Its time interval of automatically uploading positioning data can be set.   Usage Range Vehicles: car, electrocar, truck, motorbike, electric motorcycle, reffited vehicle etc. Circumstances: checking the moving route of family car, tracking the car which was lent or stolen, monitoring the government cars etc.   Our GPS platform             Shenzhen Yiwen Technology Co., Ltd. is also a software company of developing GPS tracking platform, which located in Shenzhen City in Guangdong Province in China.             Our trackers & softwares are selling to the whole world. We have entered the industrial area of developing GPS software & device for more than 4 years. We can provide the services of developing customized GPS tracking platform(Webpage & smart phone APP).             Nowadays, we have more than 100 customers who bought our software in the whole world especially in China. Obviously, the stability & accessibility of our software is recognized by the whole industry.             We promises that we'll provide our best products and services to every customer to earn their trusts!             Giving trust to us is your best investment!   PLEASE PAY ATTENTION: ALL TKSTAR TRACKERS ARE USING OUR SOFTWARE!
