Yiwen Low Cost Hi-Tech Bike Motorbike Car Vehicle Truck Van Person Pet Item Asset Luggage Ship Animal Cow GPS Tracker GX10

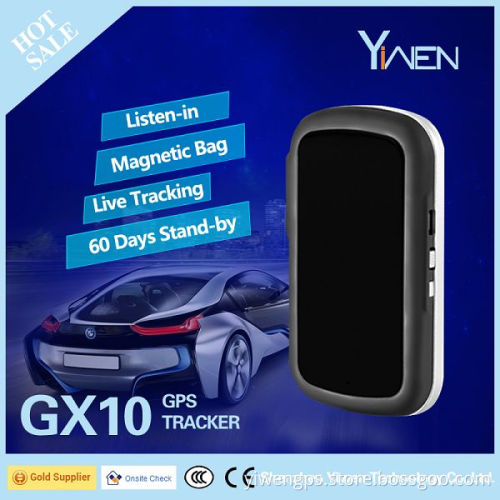

      Product Description           GPS tracker GX10 is one of the independently researched and developed GPS products from Shenzhen Yiwen Technology Co., Ltd. which adopted imported high gain GPS module and unique bi-module design, global commonly used GSM receiving antenna, with the lowest power consumption design, so it’s the most suitable GPS tracker without any complicated installations to hide in vehicles.     Specifications

Model	GX10
Brand	Yiwen Technology
Network	GSM/GPRS
GSM frequency	Global commonly used 4 frequencies
GSM module	Quad band(GSM 850/900/1800/1900 Mhz)
GPS accuracy	5 meters
GPS sensitivity	-159 dBm
Hot start	1 second on average
Warm start	35 seconds on average
Cold start	45 seconds on average
Working duration	60 days stand-by
Working temperature	-20~+55 ℃
Storage temperature	-40~+85 ℃
Working humidity	5-95% non-condensing
Car charging voltage	Input: 12-24 V Output: 5 V
Phone APP operating system	Android 2.3 and newer version IOS 5.0 and newer version
Size	Length: 10.5 cm Width: 6 cm Height: 1.8 cm Packing size: 13.3*9.8*5.5 cm/piece

  Product Composition

GSM/GPRS module	MTK6260
Li-ion battery	Chargeable
GPS chip	U-BLOX
SIM card slot	1 unit
Accessories	1*charger(110-220 V input, 5 V output) 1*instruction handbook

  Functions

Low power alarm	Supported.
Overspeed alarm	Supported.
Intelligent switching	Supported.
Geofencing	A range can be set and warning message will be sent once the tracker gets out/in.
Historical route replaying	The historical moving route of the latest 3 months(at least) of the watch can be replayed.
Base station positioning	Supported
Residual energy display	The residual energy of the tracker can be displayed on the web tracking platform and phone APP.
Power saving mode	GPS module will be shut down automatically when vehicle is stayed still for a long time.
GSM blind port storage	Positioning data will be saved for 1-2 days when there is no GPRS signal until the signal is found and the data uploded.
Positioning frequency setting	Supported

  Highlights -It’s fire/crash-proof.
-It’ll sleep automatically when it’s still and will be awakened by moving, therefore, it can save power a lot.
-It’ll send a message to the monitor telephone number to warn that power's low.
-It can switch intelligently because it has dual mode.
-It supports replay historical moving route.
-It supports geofencing set by the webpage GPS tracking platform/smart phone APP/messages, once it’s out of fence, a warning will be sent to the monitor phone number.
-It has GPS and GSM antenna so the accuracy is good.
-It supports TCP communication on GPRS.
-It supports base station auxiliary positioning which can increase the accuracy.
-It supports alarming when: low voltage, vibrating, overspeeding etc.
-It can be tracked by computer webpage GPS tracking platform, Android/iOS phone APP and phone text message.
-Its battery has huge capacity.
-Its remaining power can be displayed on computer webpage GPS tracking platform, Android/iOS phone APP and phone text message. Usage Range -Vehicle: Motorcycle, electrocar, car etc.
-Industry: Fleet management, car rental, transportation etc.
-Asset: Luggage, safe case, bag etc.
-Circumstances: checking the moving route of family car, tracking the car which was lent or stolen, monitoring the government cars which was privately used etc.   Our GPS platform             Shenzhen Yiwen Technology Co., Ltd. is also a software company of developing GPS tracking platform, which located in Shenzhen City, Guangdong Province, China.             Our trackers and softwares are selling to the whole world. We have entered the industrial area of developing GPS software and device for many years. We can provide the services of developing customized GPS tracking platform(webpage and phone APP).             Nowadays, we have plenty of clients who bought our software in the whole world especially in China. Obviously, the stability and accessibility of our software are recognized by the whole industry.             We promises that we'll provide our best products and services to every client to earn their trusts!             Giving trust to us is your best investment!               Computer webpage GPS tracking platform developed by ourselves: EN.GPS18.COM     Contact Information           If you are interesting with our products and services, please contact us right now!:
