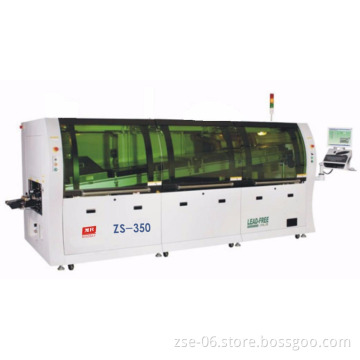

Hot sales products SMT PEAK 2010 wave soldering machine for pcb good production

 Hot sales products SMT PEAK 2010 wave soldering machin for pcb good          production   Product Description   Substrate size: 50 ~ 350mm (W) * 120mm (H) The board height: 750 ± 20mm Transmission speed: 500 ~ 1800mm / Min. Conveying angle: 4-7? Conveying direction: left to right Flux Capacity: Approx.18L Spray Exhaust: Approx.30m3 / min. Flux Flow: 0 ~ 250ml / min Compressed air:. 4 ~ 6Bar 100L / min. Preheating temperature: Max.200 ℃ Tin furnace temperature: Max.300 ℃ Furnace capacity: Approx.500Kg Wave Height: Approx.12mm Body size: 4500(L)*1400(W)*1700(H)mm   Body Weight: Approx.1500Kg Power supply: three-phase 380VAC 50Hz Total power: Approx.36KW Operating power: Approx.11KW    Picture   Our Services 1. We’ll have a good check and a test before shipping out. 2. We provide you the friendly English User manual or the operating videos for free; 3. 24 hours technical support by email or Skype or Trade Manager or Calling. 4. 1 year machine parts free warranty; 5.Technical guidance always. Packaging & Shipping Packing method: Standard  box package or strong wood package ,we do sure the goods won’t be breakdown in transit   Shipping way: 1) By air ,for sample and small package ,international express like DHL,UPS,EMS.... 2)By sea, for large package and quantity; 3)Other ways as customer requested;         Contact us
