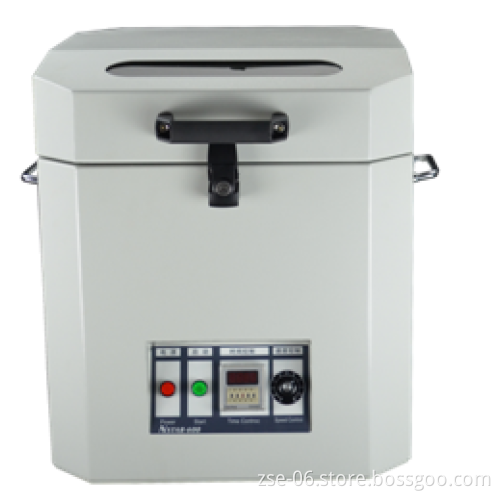

ZENS-100 Automatic and low noise solder paste mixing machine for smt production line

ZENS-100 Automatic and low noise solder paste mixing machine for smt production line Product Description     1. Introduction ZENS_100 Mixer  The revolution of the centrifugal force generated by automatic paste mixer, the force produced by the rotation of the rotating shaft and the angle of 45 degrees, The tank is located in the upper end of the paste continuous downward movement, Located at the bottom of the pipe to the tank above the paste around the movement, the formation of a tornado funnel type stirring action, make a smooth paste mixing and softening, deaeration reach the proper viscosity after mixing paste reached good wettability, diffusion uniformity, excellent printing effect, to achieve the best performance of re-flow soldering when. Its characteristics are as follows:   A, Mixing does not require prior paste retreat of ice. B, Special control circuit, mixing time and speed can be adjusted, easy to operate. C, Paste 45 degrees rotation, along the axis direction, not attached to the tank cover paste. D Smooth running, low noise, with the natural temperature in the mixing process, the effect of removing bubbles. E, Paste pot without opening the lid, convenient, safe, suitable for various packing paste pot clamp. F, Without water, does not destroy the shape of tin. G, Power single phase 220V, with a safety device, to ensure personal safety.   II. Technical parameters

Model	ZENS_100
Operating speed	Motor speed: 1400RPM
	One revolution: 1400RPM; Two rotations: 400RPM
Operational  capability	0-1000 g * 2 tanks
Acceptance of  solder  cream pot	Tank diameter Φ60-Φ67 standard configuration (suitable for general 500 g solder cream bottle) Other specifications, please contact us for customization.
Time setting	0.1~9.9minute, regulation 0.1 minute at a time. 10~30 minutes, regulation 1.0 minute at a time.
Display mode	LED digital display
Rated power	Constant speed   40W
Working power supply	AC  220V±10% 60Hz
Boundary dimension	410*410*490mm
Weight	About 35kg

  Company Information    Our Services  1. Quick response within 24 hours; 2. Offer free spare parts and service within one year of warranty, but all the other relative cost  should be on the buyer's account; 3. Technology Support :Provide Demo operation video for training; If you have free time,welcome  to our company,we will arrange engineers to show you the operation; 4. Good and professional after-sale service. Packaging & Shipping Packing method: 1)Standard  box package for light and small item; 2)Strong wood package for heavy and large equipment;   Shipping way: 1)By air ,for sample and small package ,wordwide express like DHL,UPS,FedFX,EMS.... 2)By sea, for large package and quantity; 3)By car or other ways as customer requested; Contact us
