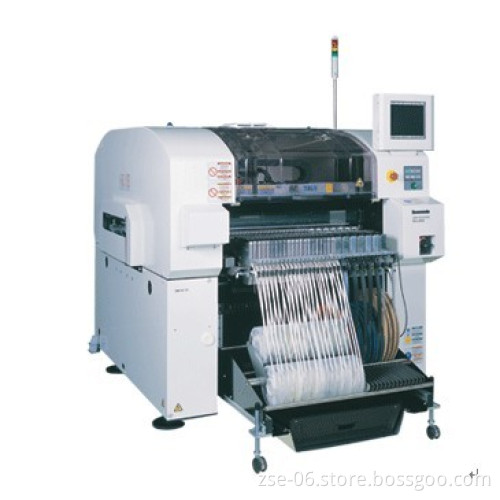

High speed Japan original brand used CM101 pick and place machine

Japan original brand used CM101 pick and place machine   Product Description   Board conveyor Under the substrate support Stopper board Cutting Unit Hand set Tray New pan with 8 Nozzle Y-axis Twin motor Cast chassis   Main features: CM Common modules: · Equipped Head (12/3), Nozzle, Feeder, Nozzle Changer, Direct Tray (August) · 3D Sensor, 100MHz Line Camera, adjustment jigs, maintenance fixture, NG discharge conveyor   Production capacity 25,000CPH: • Use Multi Head and speed? Precision recognition system, a Head (1 piece  Beam) of high-speed carry.   Maximum 140 species / 8mm of component mounting: · You can carry a whole variety of adaptation Feeder for production.   As CM series Interchangeability: • Ensure Tape Feeder? Head etc. with the CM series interchangeability.   Adapt to customer scale continuity: · Ensure that the former CM Series models of continuity; · May correspond to expand production scale, the best initial investment.   Also included after the evolutionary and CM series Synchronous: • Use the minimum investment necessary to achieve inclusion in the evolution of the exchange after the Head and the like in the latest technology to expand cultivation of CM series.   Product features:

Items		CM101-D
		Type A-1(high speed 12NZ Head)	Type A-2 ( 8NZ Head)	Type B (Multifunction 3NZ Head)
Quality	Mounting precision(μm)	±50/Chip Cpk>=1.0	±50/Chip Cpk >=1.0 ±35/QFP Cpk >=1.0	±50/Chip Cpk >=1.0 ±35/QFP Cpk >=1.0
Productive	Highest Tact (CPH/sec)	25,000/0.144	19,000/0.189	7,200/0.5
	Effectiveness Tact (CPH/sec)	17,000/0.21	14,000/0.26	5,000/0.72
	PCB transfer time (sec)	3.5 or less (PCB Size:~330×250mm)  4.0or less (PCB Size :~460×360mm)
	Tape Splicing	standard
Element of stress	PCB Size  L×W×T(mm)	50×50×0.3~460×250×4 50×50×0.3~460×360×4
	Element Sizemm)	0603~12 (thickness 6.5)	0603~32 (thickness 8.5)	0603~100*90 (thickness 25)
	Component supply form	Tape,Bulk	Tape,Bulk,Stick,Tray (Hand set/Tray Feeder)
	TapeEquipped with a number of varieties	70 Slot?70 varieties (8/12/16mm)*8mm:Max 140varieties (Double T/F Specification)
others	Former equipment Swap	Tape,Operability,FeederConnection,Nozzle, (CM212/CM402/CM602)
	Dimensions	W1,530mm×D 2,160mm×H 1,430mm
	Power supply	2.0 kVA (3-phase 200V)
	air source Supply	0.49 Mpa,100 l/min

     Products show   Our Services 1. We’ll have a good check and a test before shipping out. 2. We provide you the friendly English User manual or the operating videos for free; 3. 24 hours technical support by email or Skype or Trade Manager or Calling. 4. 1 year machine parts free warranty; 5.Engineers available to service machinery overseas.  FAQ 1) This is the first time I use this kind of machine, is it easy to operate?  There is english manual or guide video that show you how to use machine.  If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.   2) If machine have any problem after I receive it, how can I do ?  Free parts send to you in machine warranty period.  If the part is less than 0.5KG, we pay the postage.  If it exceeds 0.5KG, you need to pay the postage.   3) MOQ ?  1 set machine, mixed order is also welcomed.   4) How can I buy this machine from you? ( Very easy and flexible !)  A. Consult us about this product on line or by e-mail.  B. Negotiate and confirm the final price , shipping , payment methods and other terms.  C. Send you the proforma invoice and confirm your order.  D. Make the payment according to the method put on proforma invoice.  E. We prepare for your order in terms of the proforma invoice after confirming your full payment.  And 100% quality check before shipping.  F.Send your order by air or by sea.  Company view Shenzhen ZENS Electronics Co., Ltd. specializing in AOI machine,SMT pick and place machine, bga rework station,X-ray Inspection Equipment, etc. for 8 years. superb technology,sound equipment, and won the protection of access to customer support at home and abroad.also engineers available to service machinery overseas! we have the perfect after-sale service in PAKISTAN INDIA, AMERICA, MEXICO etc.,  Contact us  Attn:Edwina Zhou  24 hours online services  Address:4th Floor,2nd Building,Hengchangrong Industrial,No.128,Shangnan East    Road,Shajing st.,Bao'an Dist,Shenzhen City,China. You will get new idea if U Chatting with us what  you like.
