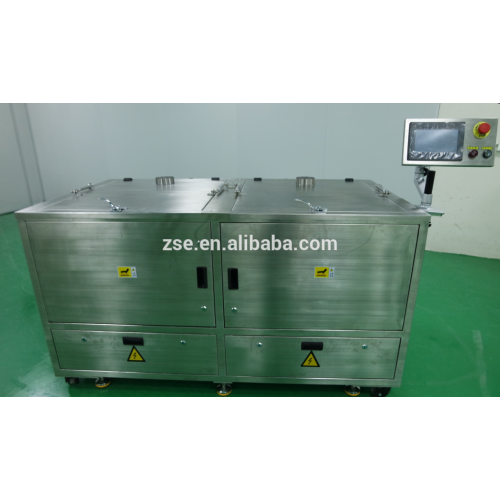

shenzhen professinonal smt machine manufacturer automatic Jig Fixture cleaning machine

shenzhen professinonal smt machine manufacturer automatic Jig Fixture cleaning machine     Technical Parameters:    Machine size: 1970mm (L) × 1200 mm (W) × 1410mm (H)
Washing basket Size: 680mm (L) × 710mm (W) × 310mm (H)
The amount of cleaning fluid: 255L
Rinse water usage: 255L
Cleaning method: Ultrasonic + Bubbling
Cleaning time: 5-10 minutes (Reference)
Rinse time: 2-5 minutes (Reference)
Cleaning fluid circulation filter: 1mm stainless steel filter 5μm filter element
Rinse cycle filter: 1mm stainless steel mesh filter 5μm filter element
Cleaning heating tube heating power: 9KW
Rinse heating tube heating power: 9KW
DI water supply: 30 ~ 60L / min
DI water pressure: about 0.2Mpa ~ 0.4Mpa
DI water inlet and outlet connection pipes: 1 inch
Gas supply: 4.5kg / cm² ~ 7 kg / cm²
Air consumption: 200-400L / Min
Power supply: AC380V 50HZ 65A
Total power 28KW
Machine weight: 400Kg
Vent size: Φ120 (W) × 30mm (H)
Cleaning objects: synthetic stone jig reflux hearth accessories such as chain wave     Product features:  For cleaning synthetic stone fixtures, fittings reflux furnace, wave soldering chains, titanium claws and other equipment maintenance cleaning accessories
Comprehensive ultrasound, bubbling overflow heating technology, effective removal of rosin flux and other organic and inorganic contaminants
use liquid loop filter
Use water-based cleaning solution, low operating cost, long service life
Clean thoroughly to prevent secondary pollution PCBA
cleaning process: cleaning - rinsing (open loop / closed loop)
Configuring 5.7-inch touch screen, you automate the entire operation process
The rugged, acid, alkali and other cleaning fluid.
