good quality 5050 5630 7020 smd led light smd DC12/24V led strip production machine with ce rohs

good quality 5050 5630 7020 smd led light smd DC12/24V led strip production machine with ce rohs     Product Description Parameters

Brand Name	Jingyuxin lighting
Item Type	Flexible Light Strip
Model Number	JYX-5050-60-12V
Leds Qty	60leds/m
IP Grade	IP20/IP65
Input Voltage	DC 12V
Lamp power	14.4W/m
Lamp Lumen	10-12lm/led
CRI(Ra>)	65
Working Temperature	-70
Working Lifespan	50,000hrs
Lamp Body Material	Copper
Package Length	5m/roll
Pcb width	10mm
Pcb thickness	2 oz
Chip type	3 chips
Color of reel	black
Color of 3M tape	white/yellow
Certification	CE, EMC, RoHS
Wires way	both sides connect red/black wires

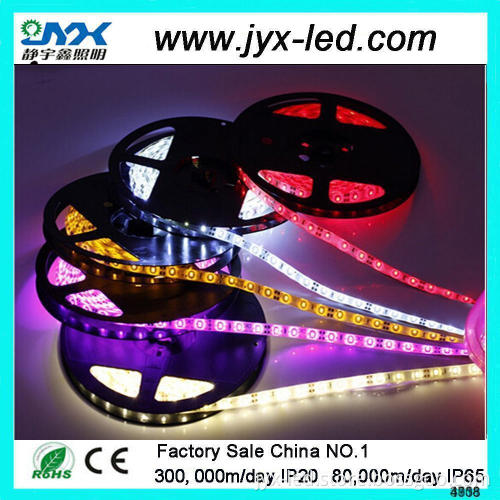

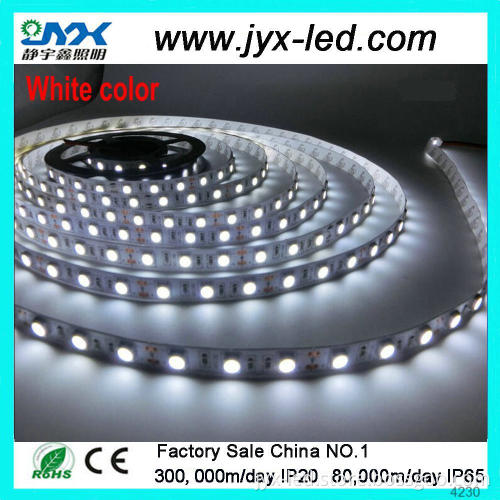

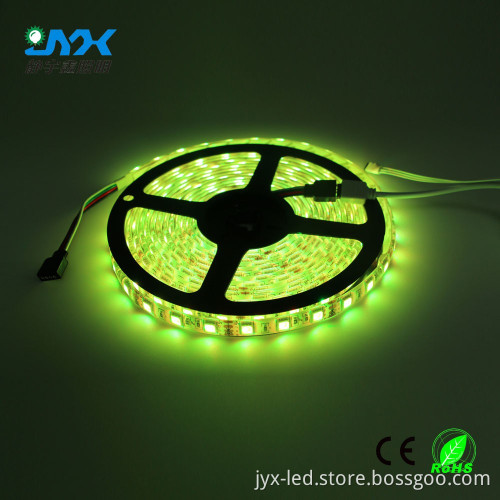

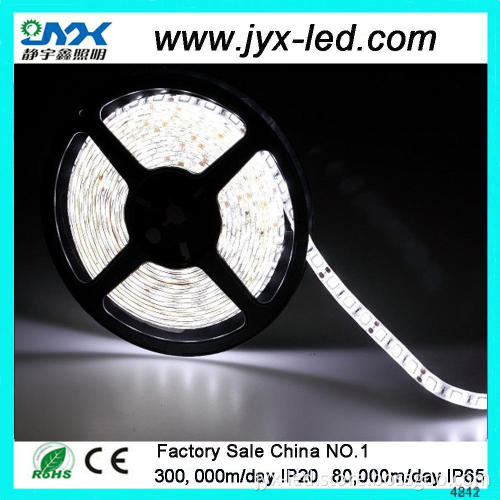

  Product details  Wide applicability, easy toinstall and maintain; Extremely luminous, with wide viewing angle; PCBase board, unique waterproof technique; Energy saving and environmentalconservation, long lifespan; Operation low voltage (DC12V, DC24V) for humansafety, various colors available  LED Strip Light SMD 5050, blue/red/yellow/green/white/warm white/rgb :
PCB Size: 5000mm*10mm LED Quantity: 60leds/m Working Voltage: 12V/24V Power: 14.4W/M Lumen: 10-12LM per led PCB Color: White/Black/Yellow Viewing angle: 120 degree Waterproof: IP20 Non-waterproof                   IP65 Silicon Glue Covering Waterproof                   IP67 Silicon Tube Waterproof                   IP68 Silicon Tube and Silicon Glue Filled Waterproof Tape: 3M adhesive tape on the back for IP20 & IP65 led strip Clips & End Caps: 10pcs Clips & 2pcs End Caps per roll for IP67 & IP68 led strip Can be cut and reconnected every three LEDs (Two Inches)
Color Temperature: Warm white 2800-3200K White 6000-6500K Package: 5M/ROLL with Anti-static Bag Certification: CE, ROHS Listed Warranty: one year Specification        Products show    Application    Packaging & Shipping

Type	Carton Size(L*W*H)(cm)	Qty/carton(meter)	G.W(kg/carton)
5050-Single color-IP20	48*28*22	500	9.75
5050-Single color-IP65	48*28*22	250	10.05
5050-RGB-IP20	48*28*22	250	5.35
5050-RGB-IP65	48*28*22	250	10.35

  Our Services 1. We are a factory manufacturing led strip lights, best production capability, best quality, Best Service; 2. New items every quarter and quick response; 3. Punctual delivery for more than 95% orders; 4. Inspected by the Inspection Institution of Bureau Veritas Certification; 5. 100% QC inspection Before Shippment; 6. CE/RoHS listed, competitve price.    Company Information Month Capacity: 10 million meters Factory: 350 employees; 8000m² whorkshop area; 40sets SMT machines.
  Competity price with good quality!       FAQ  1. Can I get the samples for free? --Warm welcome clients buy samples for evaluation, but you have to pay the shipping cost, since here are so many clients need samples before the order, it is a big cost. Thanks for your understanding.    2. What is color temperature?   --Warm white= 2700K-3200K   --Natural white= 4000K-4500K   --Pure white= 5000K-5500K   --Cool white= 6000K-6500K      3. Can our logo or a simple parameter printed on the label of the led flexible strip?
--Yes,it is ok.     4. Can you make the lamps using other brand led chip, e.g. CREE, OSRAM?
--Yes, it is ok for other brand chips.     5. Can the carton make in accordance with our requirement?
--Yes, it is ok.     Contact us  Brian Qiu  QQ: 1536543604 Phone&WhatsAPP: +8618617123289 E-mail:brian@jyx-led.com  Skype ID: brianqiu106     Your inquiry will be replied within 24 hours. Thank you very much for view this page, and wish you a nice day!
