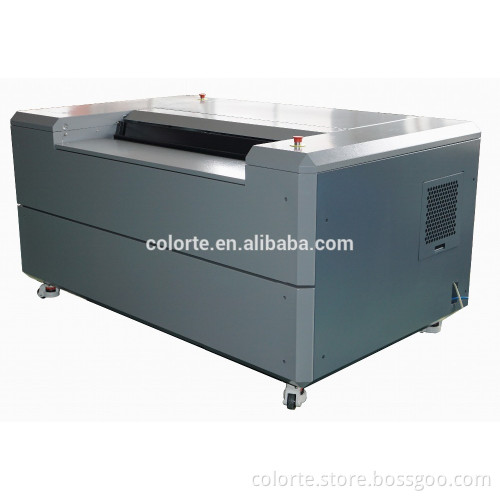

Wonder 800 Series CTP

Wonder 800 Series CTP Product Description

Mode	U832	U848	U864	T832	T848	T864
Exposing Method	External Drum
Imaging System	32-channel	48-channel	64-channel	32-channel	48-channel	64-channel
	Discrete 400-410nm laser			Discrete 830nm laser
Output Speed	16 plates/hour	22 plates/hour	28 plates/hour	16 plates/hour	22 plates/hour	28 plates/hour
	1,030×800mm 2,400dpi
Plate Size	Max.1,130×920mm,Min. 400×300mm
Exposing Size	Max.1,130×904mm
Media Type	UV plate, high-sensitive PS plate			Thermal plate
Plate Thickness	0.15mm~0.3mm
Resolutions	2,400dpi
Repeatablity	±5μm(Continuous exposure over four times on the same plate with a temperature of 23℃ and 60% RH )
Interface	USB2.0/USB3.0(Recommended option is USB2.0)
Plate Loading	First manual, then autoload
Net Weight	900KG
Device Size	2,530×1,050×950mm(W×D×H)
Power supply	Single phase:200V-240V; Max power(Peak value):4KW
Environment	Recommended temperature: 21-25℃ Allowable temperature: 18-26℃ Humidity: <70%
