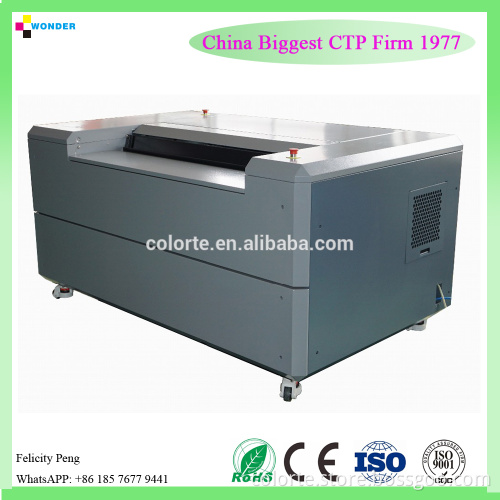

hot sale computer to plate technology Amsky ctp machine

China computer to plate technology Amsky ctp machine with best after sales service Product Description Product Application: CTP means the computer-to-plate,it's a new technology for pre-press Industry,just directly making the plate for printing machine,highly save time,energy and money in the printing plate making process.
It's will more and more popular in Printing Industry.

Model	Thermal CTP Machine
	Wonder Brand – China Best CTP Machine/CTCP Machine/UV CTP Machine
	T3232	T3248
Exposing Method	External Drum
Imaging System	32 channel	48 channel
	Discrete 830nm laser
Output Speed	22 plates/hour	28 plates/hour
	860×660mm, 2400dpi
Plate Size	Max.860×660mm, Min.400×300mm
Exposing Size	Max.800×646mm
Plate Type	Thermal plate
Plate Thickness	0.15mm-0.3mm
Resolutions	2400dpi
Repeatability	±5μm(Continuous exposure over four times on the same plate with a temperature of 23℃ and 60% RH )
Interface	USB2.0 / USB3.0 (Recommended option is USB2.0)
Plate Loading	Manual place plate, then autoload
Net Weight	800KG
Device Size	2000×1100×1300mm(W×D×H)
Power	Single phase:200V-240V; Max power(Peak value):4KW
Environment	Recommended temperature: 21-25℃ Allowed temperature: 15-30℃ Humidity: <70%
Warranty	2 Years super long warranty,free Operation Training and Technical Training,free Providing replacement of accessories

Product Main Features:  1) Dynamic Autofocus.
2) Fast Balance &Auto Switch of Laser Beam.
3) Auto Constant Thermostatic Control of Laser Chassis.
4) Technology of DDS Frequency Multiplication and Drum Auto Balance.
5) Accurate Graphic Size Calibration.   Product Details:   Packaging & Shipping Standard Export Wooden Box:
Our Services Pre-Sales Service: * Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service: * Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas. Company Information
Shenzhen Colorte CTP Group founded in 1995,the Biggest and Strongest CTP Group in China.   Each year selling over 500 Sets CTP/CTCP Machine.
20 Millions CTP/CTCP Plates.   Welcome join in us to build the colorful printing world.
