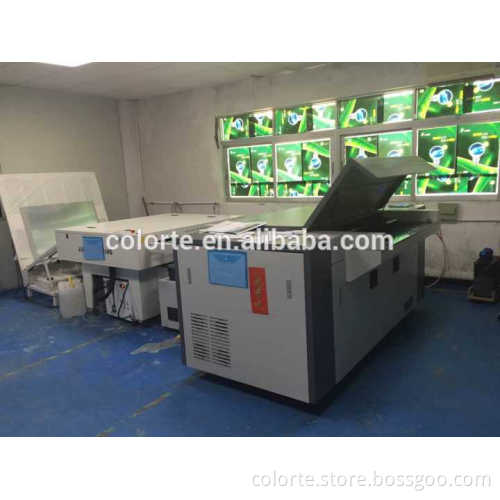

Eastcom CTP machine Second hand Used Eastcom Thermal CTP machine

Eastcom CTP machine Second hand Used Eastcom Thermal CTP machine Product Description

Mode	U832	U848	U864	T832	T848	T864
Exposing Method	External Drum
Imaging System	32-channel	48-channel	64-channel	32-channel	48-channel	64-channel
	Discrete 400-410nm laser			Discrete 830nm laser
Output Speed	16 plates/hour	22 plates/hour	28 plates/hour	16 plates/hour	22 plates/hour	28 plates/hour
	1,030×800mm 2,400dpi
Plate Size	Max.1,130×920mm,Min. 400×300mm
Exposing Size	Max.1,130×904mm
Media Type	UV plate, high-sensitive PS plate			Thermal plate
Plate Thickness	0.15mm~0.3mm
Resolutions	2,400dpi
Repeatablity	±5μm(Continuous exposure over four times on the same plate with a temperature of 23℃ and 60% RH )
Interface	USB2.0/USB3.0(Recommended option is USB2.0)
Plate Loading	First manual, then autoload
Net Weight	900KG
Device Size	2,530×1,050×950mm(W×D×H)
Power supply	Single phase:200V-240V; Max power(Peak value):4KW
Environment	Recommended temperature: 21-25℃ Allowable temperature: 18-26℃ Humidity: <70%
