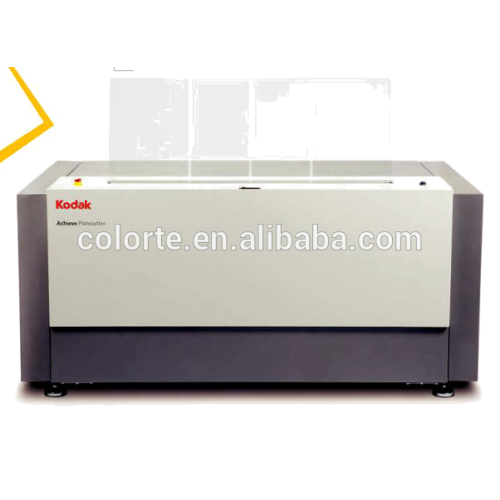

Kodak Achieve T800 platesetter computer to plate thermal ctp machine

Get Latest Price

Delivery Time:: 15 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Kodak Achieve T800 platesetter computer to plate thermal ctp machine General Specifications

Technology	830 nm Thermal CTP machine,Semi-automatic,External drum
Load /unload systems	Standard: Semi auto load plate and unload Auto unload: Semi auto load , auto unload to Processor or Stacker; automatic rotary plate Auto load: Auto load and unload - without the backing plate 40pcs (0.30mm)
Media Support	Kodak Achive EM thermal plates, Kodak Electra XD Thermal Plate and Kodak Sonora XP Chemical-Free computer to plate

Technology

830 nm Thermal CTP machine,Semi-automatic,External drum

Load /unload systems

Standard: Semi auto load plate and unload

Auto unload: Semi auto load , auto unload to Processor or Stacker; automatic rotary plate

Auto load: Auto load and unload - without the backing plate 40pcs (0.30mm)

Media Support

Kodak Achive EM thermal plates, Kodak Electra XD Thermal Plate and

Kodak Sonora XP Chemical-Free computer to plate

Performance Specifications

Capacity	Standard and auto unload		Auto load :
2400 dpi 1, 2, Max. Size:1030 x 838 mm	S-speed = 16 plates / hour F-speed = 22 plates / hour		S-speed = 16 plates / hour F-speed = 22 plates / hour
Accuracy	± 20 μm (± 0.8 mil), two different plates
Registration accuracy	± 25 μm (± 1.0 mil) , Between Imaging area and plate edge
Workflow link up	Kodak Prinergy Evo Workflow, Kodak Prinergy Workflow, can link up with third-party workflow systems. Standard machine includes XPO TIFFdownloader software,which can be linked up with most third-party workflow systems
Imaging Specifications
Resolutions	2400 dpi (94.4 dpmm) or 1200 dpi (47.2 dpmm)
plus screening	300 lpi ,The maximum number of plus screening Alternative 36 μm Kodak STACCATO screening
Max. size:	Standard : 838 x 1,143 mm	Auto unload : 838 x 1,118 mm		Auto load : 838 x 1,118 mm
Min. size :	267 x 215 mm	383 x 270 mm Manual unload : 267 x 215 mm		383 x 270 mm Manula load and unload: 305 x 215 mm
Max. Imaging area	827.9 x 1,143 mm	827.9 x 1,118 mm		827.9 x 1,118 mm
Device size
Size (H x W x D)	Standard : 160 x 200 x 120 cm	Auto unload : 210 x 200 x 180 cm		Auto load : 210 x 200 x 180 cm
Net weight	650 kg	744 kg		750 kg

1 imaging speed and production capacity depends on the sensitivity of the medium. All media sensitivity values are 120mJ / cm² 2 KODAK workflow solutions tested. For additional information about the test conditions, please consult Kodak representative. 3 Standard plate thickness of 0.15-0.3 mm. This CTP is a Class 1 laser products, fully comply with EN60825-1 and US Federal 21 CFR 1040.10 - CDRH regulations. Gauss Imaging technology Kodak TH5 technology

Violet,thermal,CtCP	Thermal (25W )
24-64 chanel	128 channel
Color stability -low	Color stability - Medium to high
Exposure uniformity-Low	Exposure uniformity-High

Delivery: 1. CTP machine :30 days 2. CTP plates:10-25 days Installation and training: 1.Welcome to learn the operation and maintenance in our factory free of charge. 2.We can send technican to oversea to help you with installation and training. But 2 way tickets and accomodation will be charge by the buyer.
