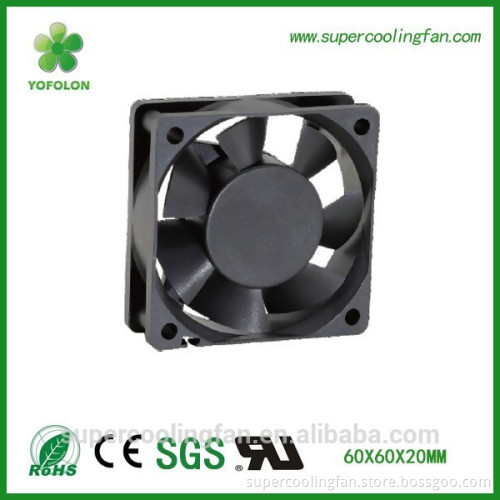

60*60*20mm 12V DC axial fan 24V 6020 dc cooling fan

  Product Description 60*60*20mm 12V axial fan 24V dc cooling fan  Size: 60X60X20mm Frame and Impeller: Plastic P. B. T. Voltage:12V, 24V Current: 0.08~0.16A Power: 1.20~2.88W Speed: 3000~4000RPM Air flow: 13.54~19.15CFM Pressure: 1.96~3.78(mmH2O) Noise: 23.68~30.32dBA Bear type: Sleeve, Two Ball  are Available Weight: 52G Motor: Brushless DC, auto restart Impedance & polarity protected Operation temperature: -20° C~80° C Insulation Resistance: 10 At 500VDC between lead and frame Dielectric Strength: 1 min at 500VAC/50-60Hz, current min 5mA Operation Humidity: 20%~85% Working voltage: Rated voltage± 15% Life at 25oC: Ball bearing 50, 000hrs and sleeve bearing 30, 000hrs       Motor Protection (Selective purchasing): 1.Automatic Restart. 2.Reverse Polarity Protected 3.Water proof for IP25, IP55 4.IC function RD ,FG and PWM control are available   * Two ball bearing applying * Applying NMB ball bearing inported from Japan * Short lead time 1 Week after confirm order Packaging & Shipping   FAQ         Company Information
