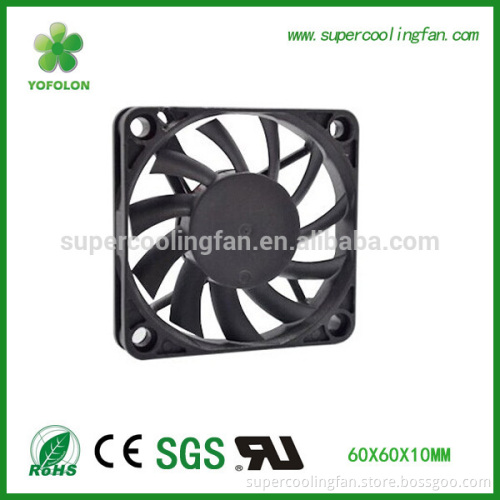

60x60x10mm CE RoHS UL High quality YOFOLON factory price dc 12V dc cooling fan

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Product Description 60x60x10mm CE RoHS UL High quality YOFOLON factory price dc 12V dc cooling fan DC COOLING FAN Size: 60X60X10mm Frame and Impeller: Plastic P. B. T. Voltage:5V,12V, 24V Current: 0.05~0.30A Power: 0.85~2.40W Speed: 3000~4000RPM Air flow: 12.25~17.05CFM Pressure: 1.62~3.11(mmH2O) Noise: 23.42~29.42dBA Bear type: Sleeve, Two Ball are Available Weight: 26G Motor: Brushless DC, auto restart Impedance & polarity protected Operation temperature: -20° C~80° C Insulation Resistance: 10 At 500VDC between lead and frame Dielectric Strength: 1 min at 500VAC/50-60Hz, current min 5mA Operation Humidity: 20%~85% Working voltage: Rated voltage± 15% Life at 25oC: Ball bearing 50, 000hrs and sleeve bearing 30, 000hrs

Motor Protection (Selective purchasing): 1.Automatic Restart. 2.Reverse Polarity Protected 3.Water proof for IP25, IP55 4.IC function RD ,FG and PWM control are available * Two ball bearing applying * Applying NMB ball bearing inported from Japan * Short lead time 1 Week after confirm order Packaging & Shipping

FAQ
