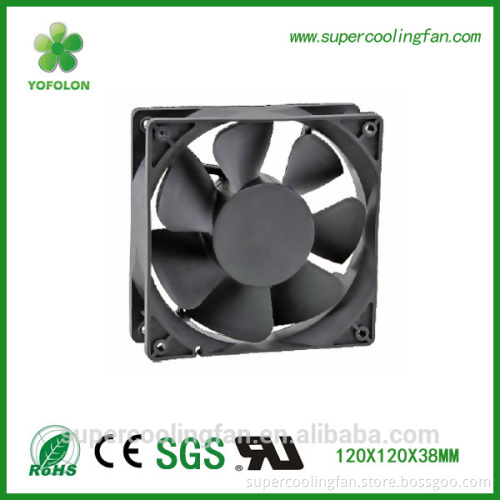

120x120x38mm 24V dc fan, high speed 12038 dc axial cooling fan, 12V 120mm fan

  Product Description 120x120x38mm  24V dc fan, high speed 12038 dc axial cooling fan, 12V 120mm fan Size: 120X120X38mm Frame: Plastic Impeller: Plastic P. B. T. Voltage: 12V, 24V Current: 0.15~0.55A Power: 3.0W~8.40W Speed: 2200-~800RPM Air flow: 83.47~110.36CFM Pressure: 3.48~7.65(mmH2O) Noise: 33.47~41.23dBA Bear type: Sleeve, Two Ball  are Available Weight: 265G Motor: Brushless DC, auto restart Impedance & polarity protected Operation temperature: -20° C~80° C Insulation Resistance: 10 At 500VDC between lead and frame Dielectric Strength: 1 min at 500VAC/50-60Hz, current min 5mA Operation Humidity: 20%~85% Working voltage: Rated voltage± 15% Life at 25oC: Ball bearing 50, 000hrs and sleeve bearing 30, 000hrs       Motor Protection (Selective purchasing): 1.Automatic Restart. 2.Reverse Polarity Protected 3.Water proof for IP25, IP55 4.IC function RD ,FG and PWM control are available   * Two ball bearing applying * Applying NMB ball bearing inported from Japan * Short lead time 1 Week after confirm order   Packaging & Shipping     FAQ       Company Information
